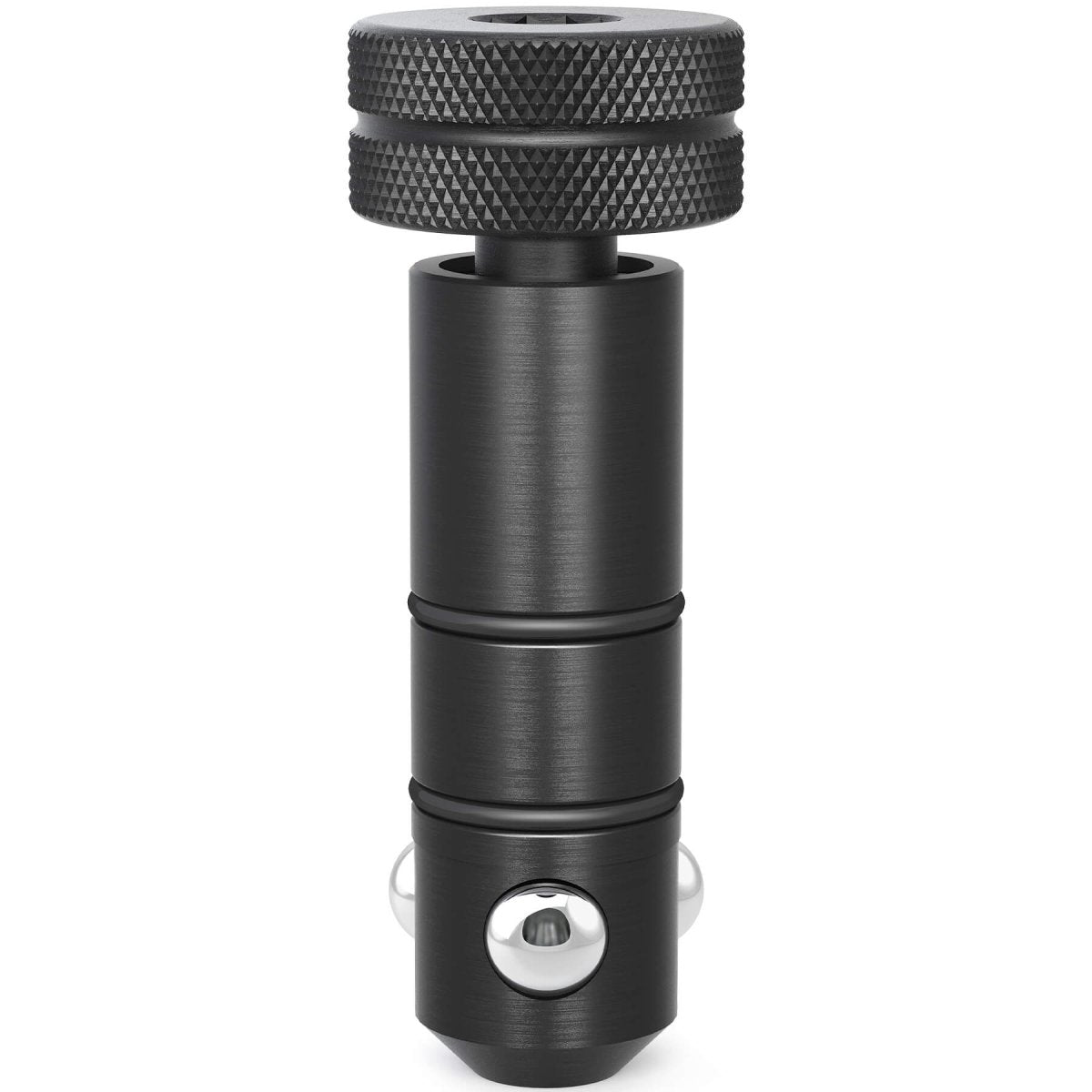

The Universal Bolt Basic triple burnished provides strong, reliable connections for Siegmund System 28 setups where components of varying thickness need to be joined. Built with a burnished finish for durability, this bolt ensures secure fastening with simple operation.
- The 108mm (4.25" Inches) length supports clamping of three components.
- Clamping range from 42mm (1.65" Inches) to 57mm (2.24" Inches).
- Triple burnished finish provides long-lasting wear resistance.
- Handles high shear and tensile forces for dependable stability.
- Hexagon socket (Size 14) ensures precise tightening with standard tools.
Key Features:
- Reliable fastening of multiple components with varying thickness.
- Triple burnished surface enhances durability and service life.
- Handles 200 kN (44,961.0 lbf.) shear force.
- Delivers 25 kN (5,620.0 lbf.) tensile force for secure clamping.
- Compatible with Siegmund System 28 Metric Series applications.
Specifications:
- Item No.: 2-280537
- System: Siegmund System 28 Metric Series
- Length: 108mm (4.25" Inches)
- Weight: 1.21 lbs. (0.55 kg.)
- Clamping Range: 42mm–57mm (1.65"–2.24" Inches)
- Shearing Force: 200 kN (44,961.0 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Tightening Torque Steel: 25 Nm (221.3 lbf·in.)
- Connection Type: Hexagon Socket (Size 14)
- Finish: Burnished
Common Uses:
This bolt is used to securely fasten three Siegmund System 28 components in professional welding and fixturing setups. Fabricators depend on its triple burnished durability and high force resistance for long-lasting performance in demanding shop environments.
