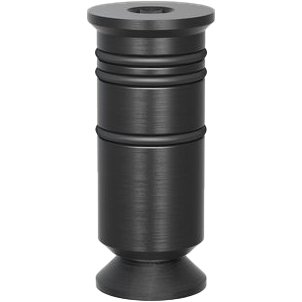

2-280561: Long Connecting Bolt (Burnished)
- Product SKU: 2-280561
- Category: System 28mm Metric Series Welding Tables and Fixturing Accessories
The Siegmund Long Burnished Connecting Bolt was especially designed as a fixed long-term connection of 3 large Siegmund Elements, e.g. tables or U-shaped squares.
The countersunk hexagon socket and the ability of the clamping bolt to center itself, enable easy assembly. The flat head and the flat bolt contain a hexagon socket for clamping. The connecting bolt provides a sturdy screw connection. The Connecting Bolt should not be used in oblong holes.
Specs and Features:
- Item No. 2-280561
- Burnished
- For Connecting 3 Large Siegmund Components
- With Hexagon Socket
- Length: 75mm (2.95'')
- Diameter: 28mm (1.10'')
- Shearing Force: 200kN
- Tightening Torque Steel: 25Nm
- Tensile Force: 10N
- Weight: 0.45 Ibs.
