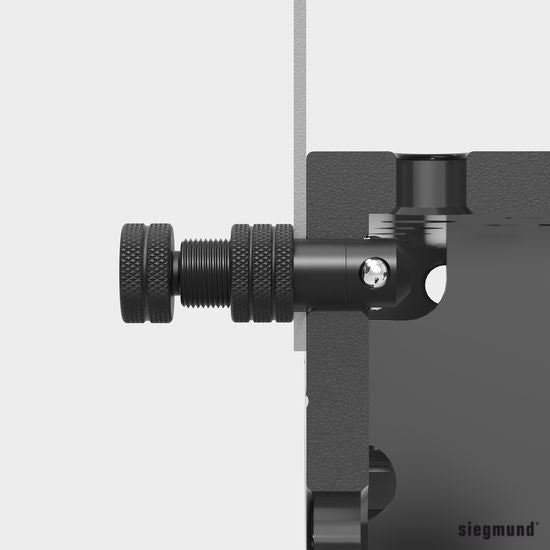

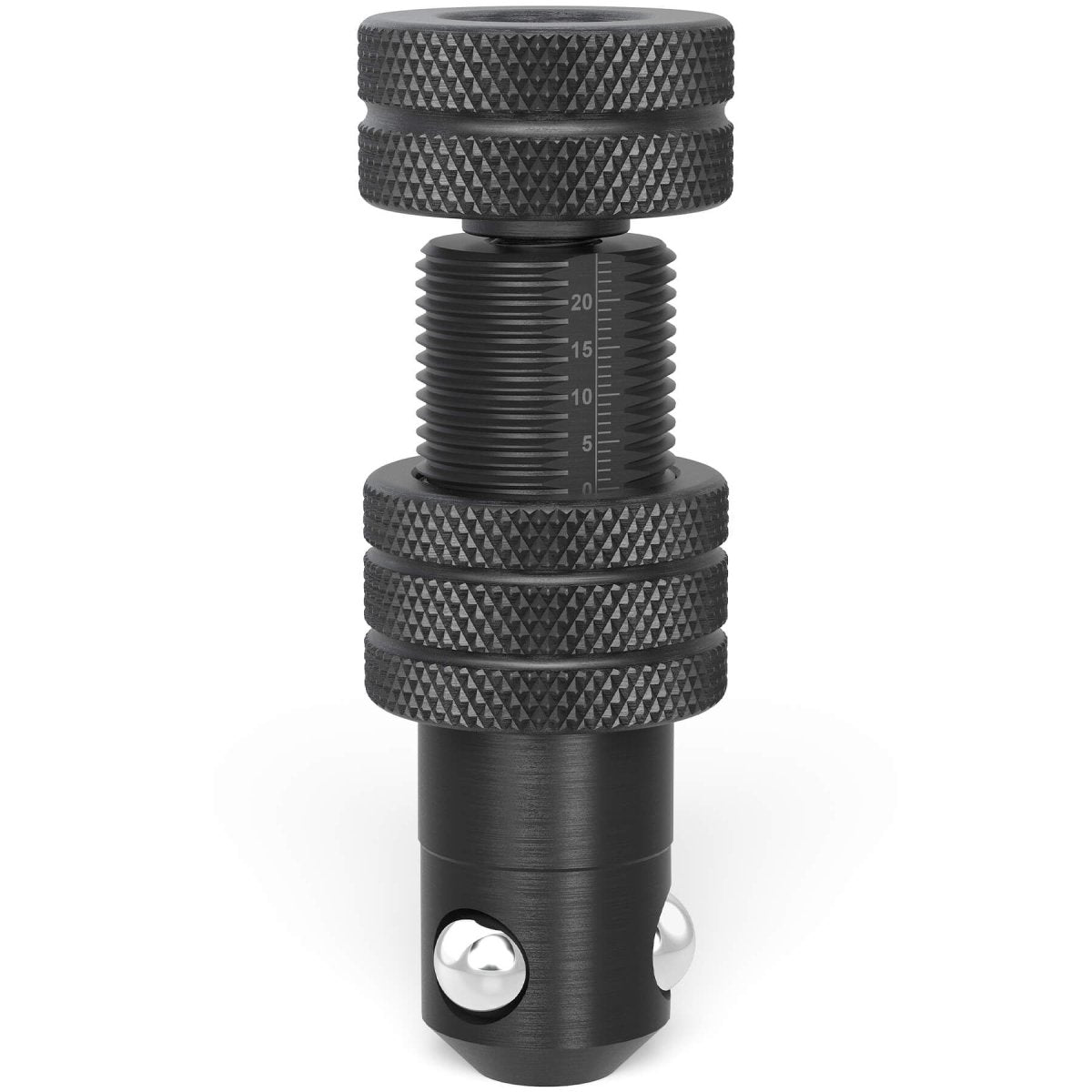

The Fast Clamping Bolt adjustable without slot burnished provides versatile, durable fastening for Siegmund System 28 setups. With an adjustable clamping range and burnished finish, it is built to securely fasten customized laser-cut profiles and aluminum components while maintaining smooth operation and wear resistance.
- The 115mm (4.53" Inches) length supports adjustable clamping ranges of 25–50mm.
- Burnished surface enhances long-term durability under heavy use.
- Provides strong shear and tensile forces for demanding applications.
- Torque settings optimized for both aluminum and steel clamping.
- Hexagon socket (Size 6) allows precise and consistent tightening.
- Lightweight design ensures easy handling in fixture adjustments.
Key Features:
- Adjustable clamping range from 25–50mm for flexible use.
- Burnished finish ensures resistance to wear and long service life.
- Handles 220 kN (49,458.8 lbf.) shear force.
- Delivers 25 kN (5,620.0 lbf.) tensile force in steel setups.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280571
- System: Siegmund System 28 Metric Series
- Length: 115mm (4.53" Inches)
- Weight: 1.48 lbs. (0.67 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Clamping Range: 25–50mm (0.98–1.97" Inches)
- Connection Type: Hexagon Socket (Size 6), Adjustable
Common Uses:

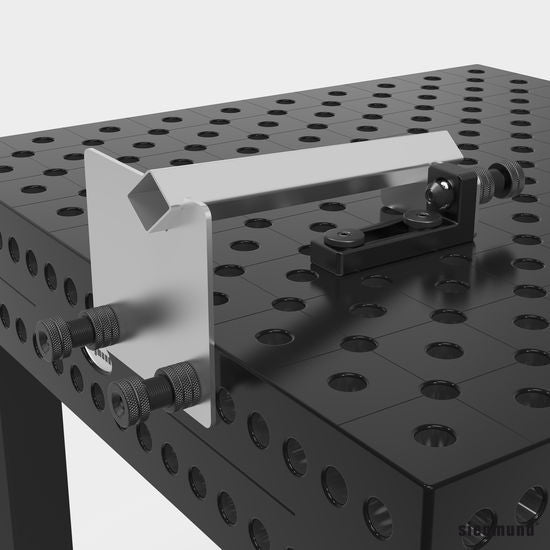

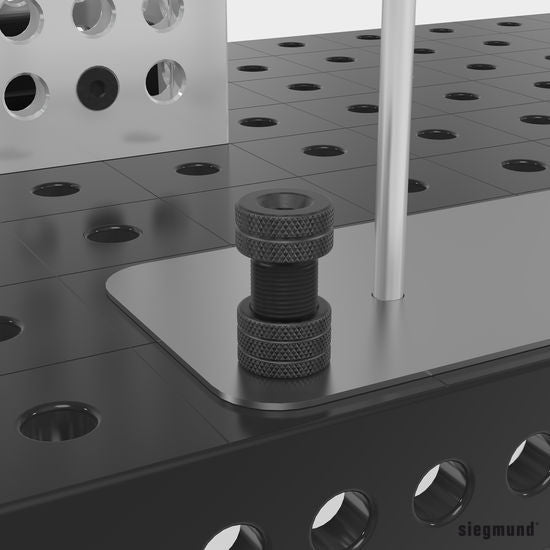

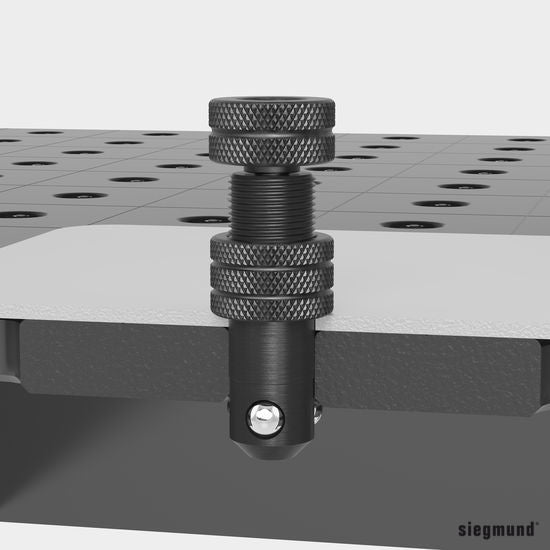

This bolt provides secure fastening of aluminum profiles and customized laser-cut components in Siegmund System 28 setups. Its adjustable clamping range enables flexibility for variable workpiece thicknesses, while the burnished finish ensures long-lasting performance. Fabricators use it for precision welding and fixturing when adaptability and strength are required.
