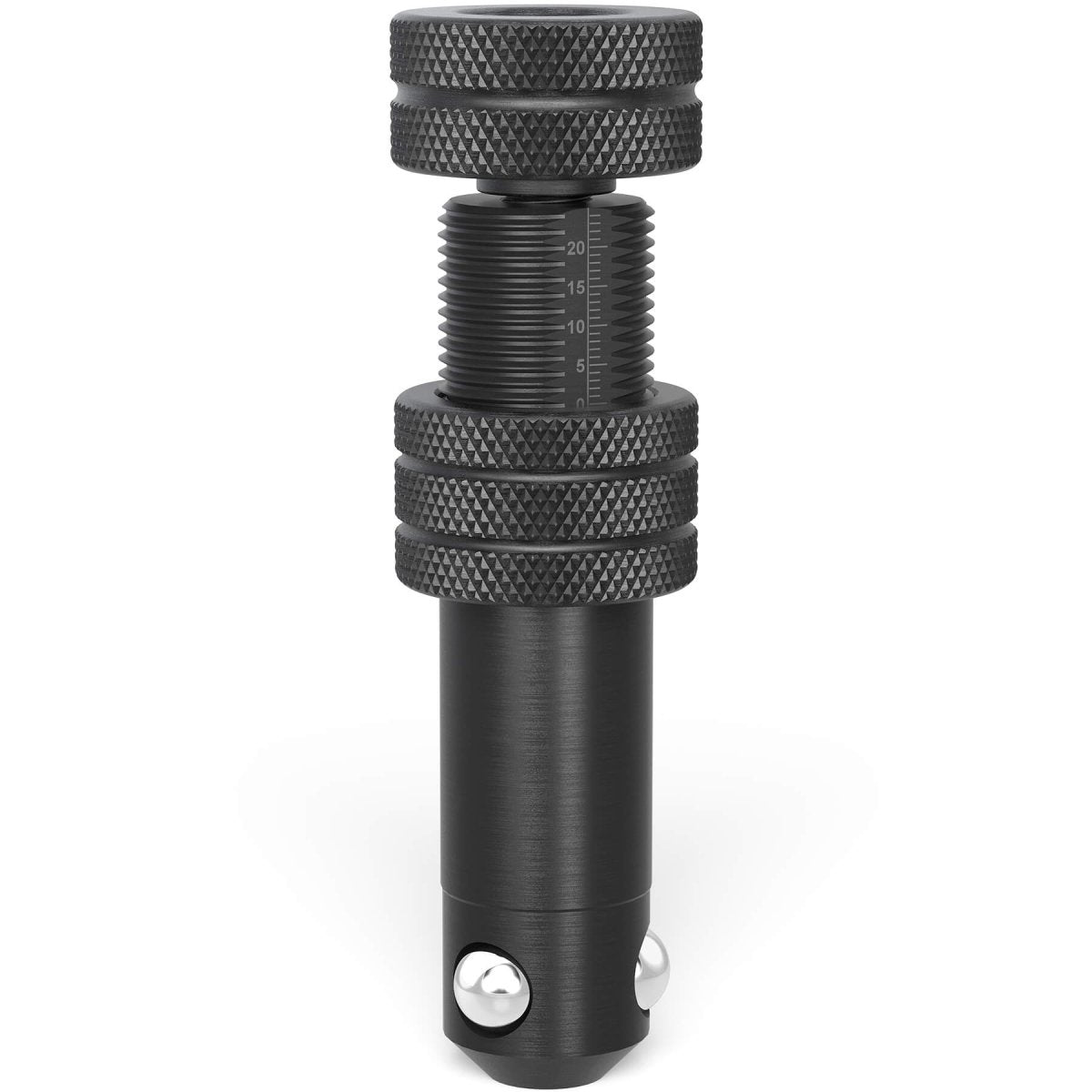

The Fast Clamping Bolt adjustable without slot triple burnished delivers flexible and durable fastening for Siegmund System 28 setups. With its adjustable clamping height and burnished finish, this bolt provides precision, strength, and long service life when securing laser-cut profiles and aluminum components.
- The 140mm (5.51" Inches) length supports clamping of up to three components.
- Adjustable clamping dimension of 50–75mm (1.97–2.95" Inches) for versatility.
- Triple burnished finish provides long-term wear resistance.
- Rotating knurled thimble ring allows easy height adjustment.
- Withstands high shear and tensile forces for secure fastening.
- Hexagon socket (Size 6) with screw top ensures reliable tightening.
Key Features:
- Adjustable clamping height provides flexibility for varying material thickness.
- Triple burnished finish extends durability in heavy shop use.
- Handles 220 kN (49,458.8 lbf.) shear force.
- Delivers 25 kN (5,620.0 lbf.) tensile force in steel.
- Optimized for Siegmund System 28 Metric Series multi-component setups.
Specifications:
- Item No.: 2-280573
- System: Siegmund System 28 Metric Series
- Length: 140mm (5.51" Inches)
- Weight: 1.83 lbs. (0.83 kg.)
- Clamping Range: 50–75mm (1.97–2.95" Inches)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Connection Type: Hexagon Socket (Size 6), Screw Top, Knurled Thimble Ring
Common Uses:
This bolt provides strong, adjustable fastening of laser-cut profiles and aluminum components in Siegmund System 28 setups. Its knurled ring adjustment ensures quick adaptation to varying thicknesses, while the triple burnished finish enhances durability. Fabricators use it for precision fixturing when strength, adaptability, and reliability are essential.
