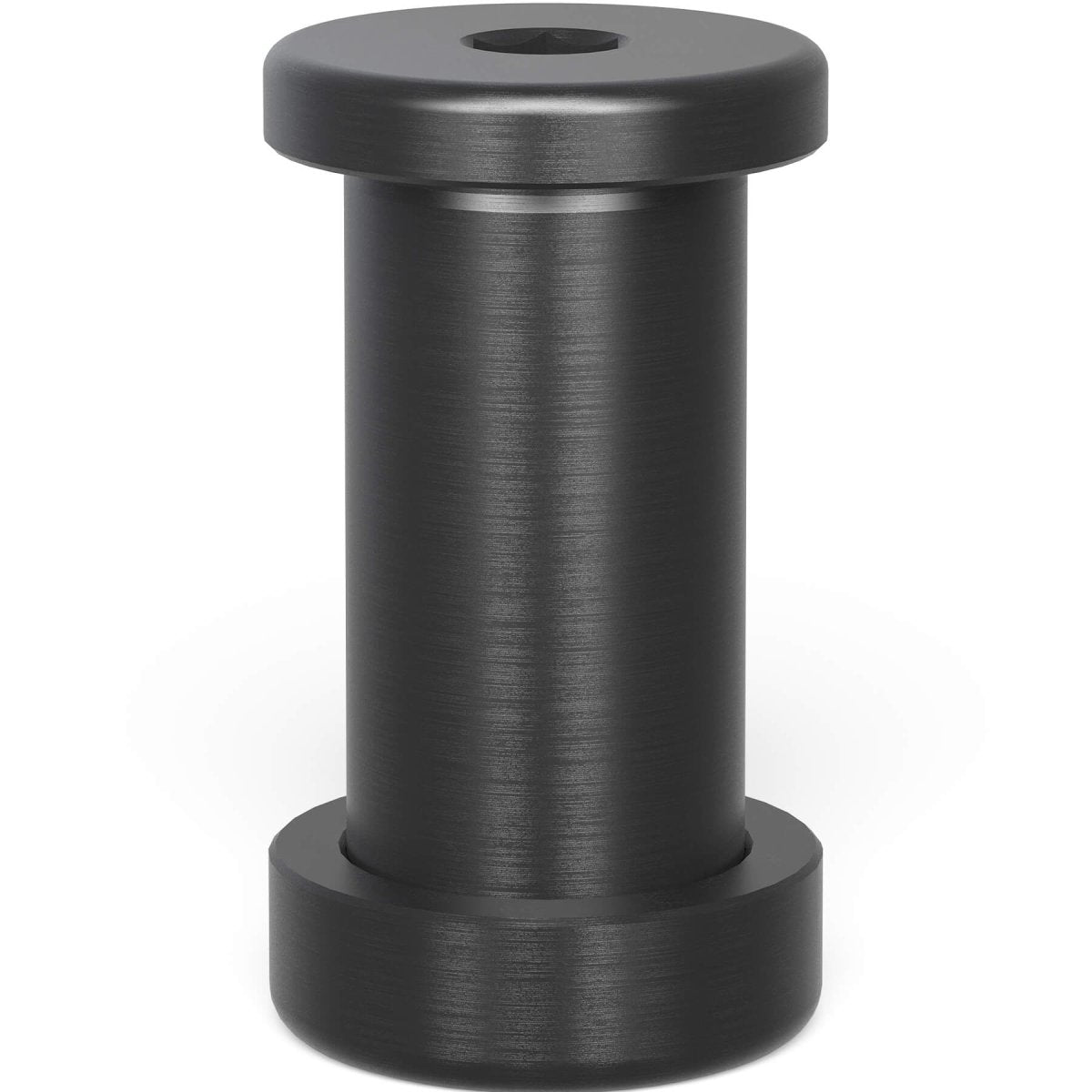

The Connecting Bolt with Collar double burnished provides a fixed and reliable long-term fastening solution for large Siegmund System 28 components. Designed for use with tables, U-squares, and aluminum profiles, this bolt ensures a durable connection under heavy loads.
- The 70mm (2.76" Inches) length provides strong, stable engagement.
- Double burnished finish increases wear resistance and longevity.
- Suitable for use in elongated holes for flexible applications.
- Hexagon socket design (top Size 10 / bottom Size 6) allows secure tightening.
- Delivers strong shear and tensile performance for heavy-duty setups.
- Optimized for both steel and aluminum with material-dependent torque settings.
Key Features:
- Double burnished finish ensures long service life.
- Handles 200 kN (44,961.0 lbf.) shearing force.
- Delivers 15 kN (3,372.0 lbf.) tensile force in steel.
- Tightening torque: 70 Nm (619.6 lbf·in.) for steel, 60 Nm (531.0 lbf·in.) for aluminum.
- Engineered for permanent connections in Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280583
- System: Siegmund System 28 Metric Series
- Length: 70mm (2.76" Inches)
- Weight: 0.86 lbs. (0.39 kg.)
- Shearing Force: 200 kN (44,961.0 lbf.)
- Tensile Force Steel: 15 kN (3,372.0 lbf.)
- Tightening Torque Steel: 70 Nm (619.6 lbf·in.)
- Tightening Torque Aluminum: 60 Nm (531.0 lbf·in.)
- Connection Type: Hexagon Socket (Top Size 10 / Bottom Size 6)
Common Uses:

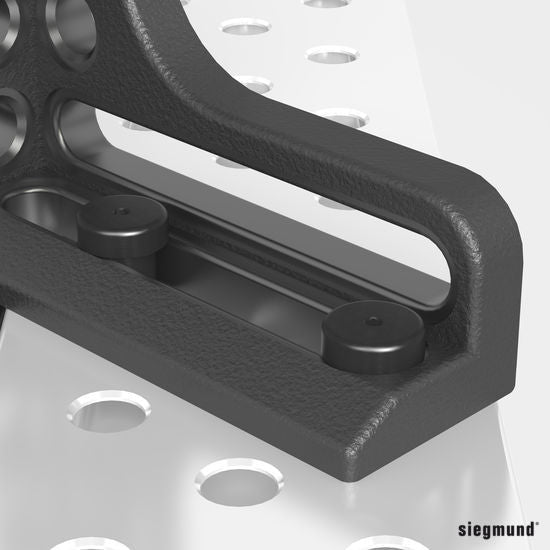

This bolt delivers long-term, stable connections for Siegmund System 28 tables, U-squares, and aluminum profiles. Its double burnished finish resists wear while ensuring smooth engagement, and its collar design provides a secure fit in elongated holes. Fabricators use it for structural fastening where strength, stability, and durability are required.
