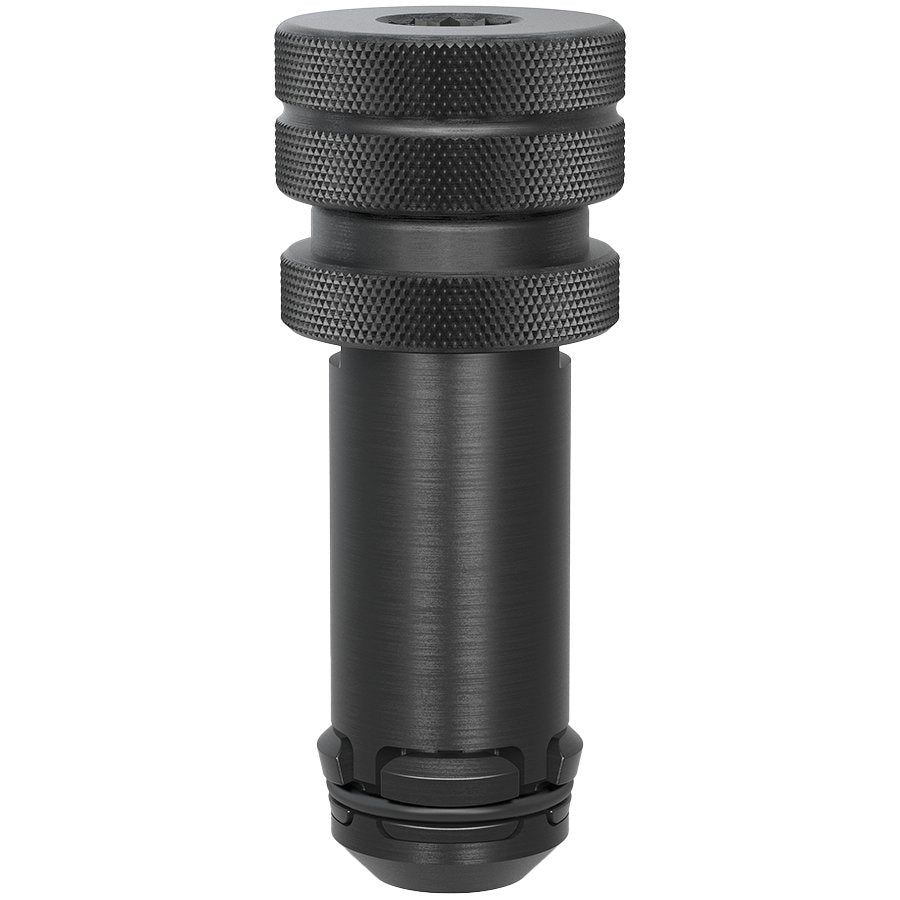

The Areal Clamping Bolt Double (Burnished) provides strong, reliable connections in Siegmund System 28 setups. With high shear and tensile strength, it delivers consistent clamping performance, especially suited for use with aluminum profiles where a smooth surface is required.
- Measures 100mm (3.94" Inches) in length with a burnished finish.
- Provides clamping range of 47–53mm (1.85"–2.09" Inches).

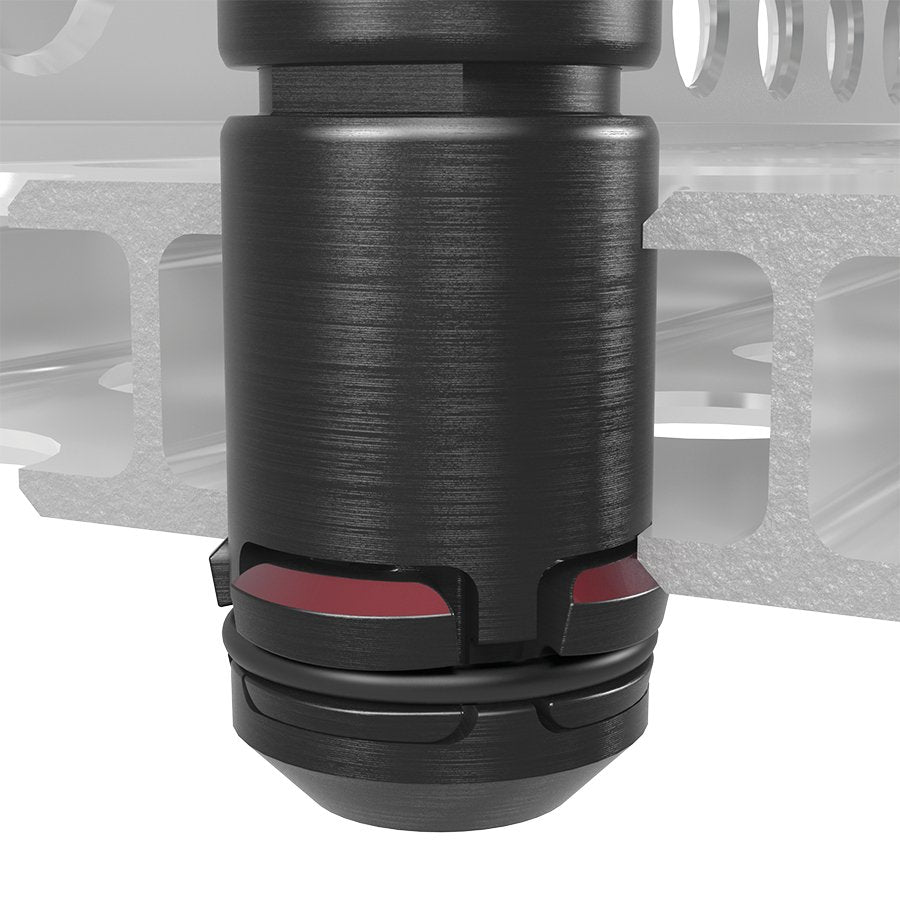

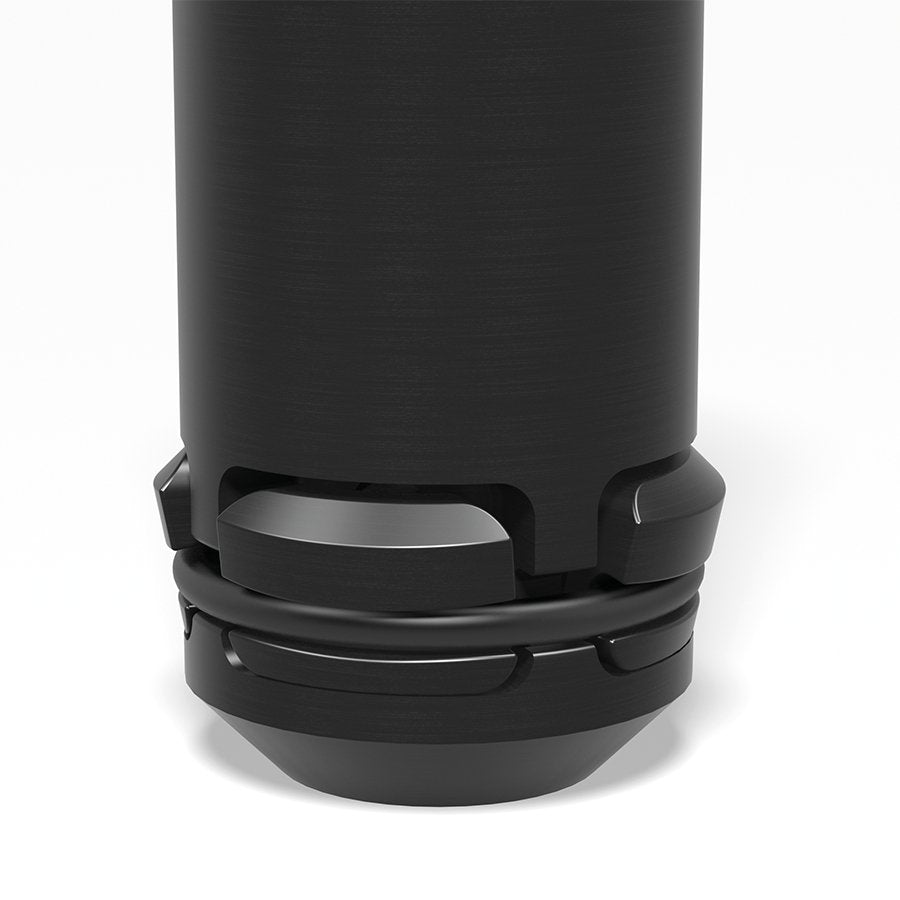

- Burnished surface ensures smooth operation without O-ring slot.
- Delivers up to 200kN (44,961 lbf.) shear force for secure clamping.
- Tensile force of 20kN (4,496 lbf.) in steel and 6kN (1,349 lbf.) in aluminum.
- Lightweight at 1.23 lbs. (0.56 kg.) for efficient use.
Key Features:
- High shear and tensile force for secure component clamping.
- Smooth burnished surface ideal for aluminum profiles.
- Hexagon socket (Size 14) for quick tightening.
- Compatible with Siegmund System 28 Metric Series.
- Durable and reliable for precision welding setups.
Specifications:
- Series: Siegmund System 28 Metric Series
- Item No.: 2-280590
- Length: 100mm (3.94" Inches)
- Weight: 1.23 lbs. (0.56 kg.)
- Shearing Force: 200kN (44,961 lbf.)
- Tightening Torque Steel: 50Nm
- Tightening Torque Aluminum: 20Nm
- Tensile Force Steel: 20kN (4,496 lbf.)
- Tensile Force Aluminum: 6kN (1,349 lbf.)
Common Uses:

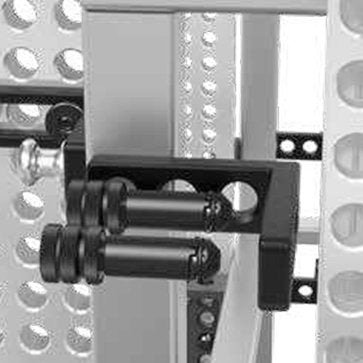

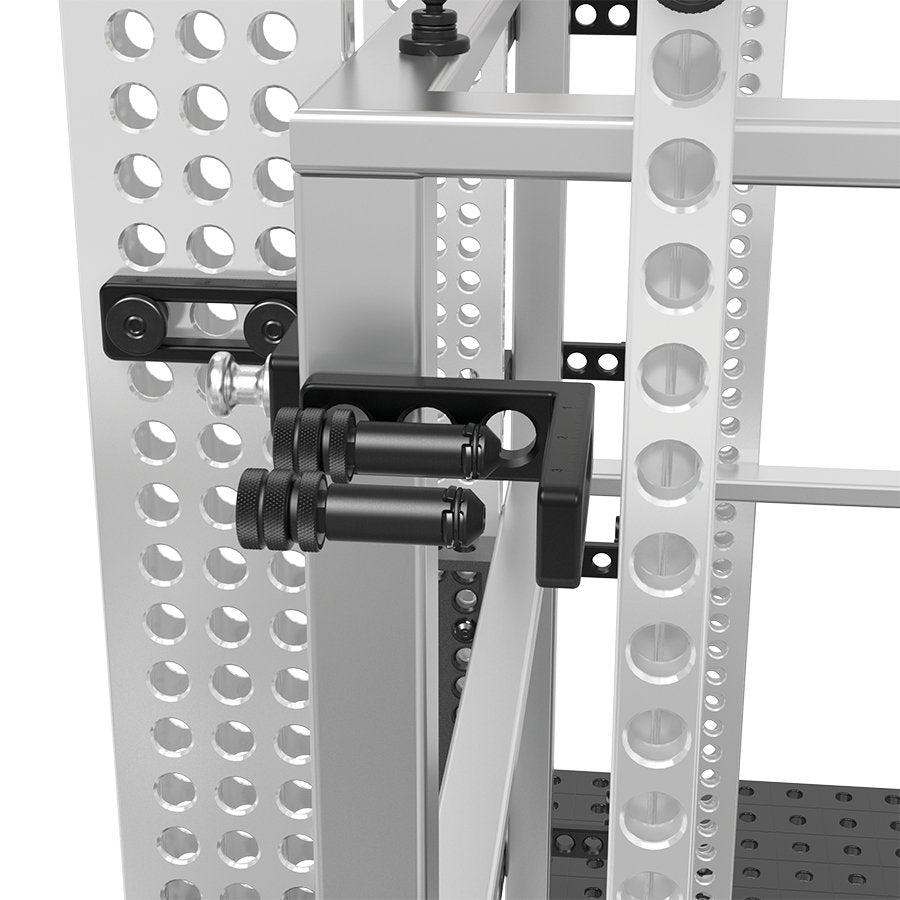

This clamping bolt is used to securely fasten two components in Siegmund System 28 setups. It is especially effective when working with aluminum profiles where smooth, non-damaging clamping is required. Fabricators use it for stable, high-strength fixturing with repeatable accuracy.
