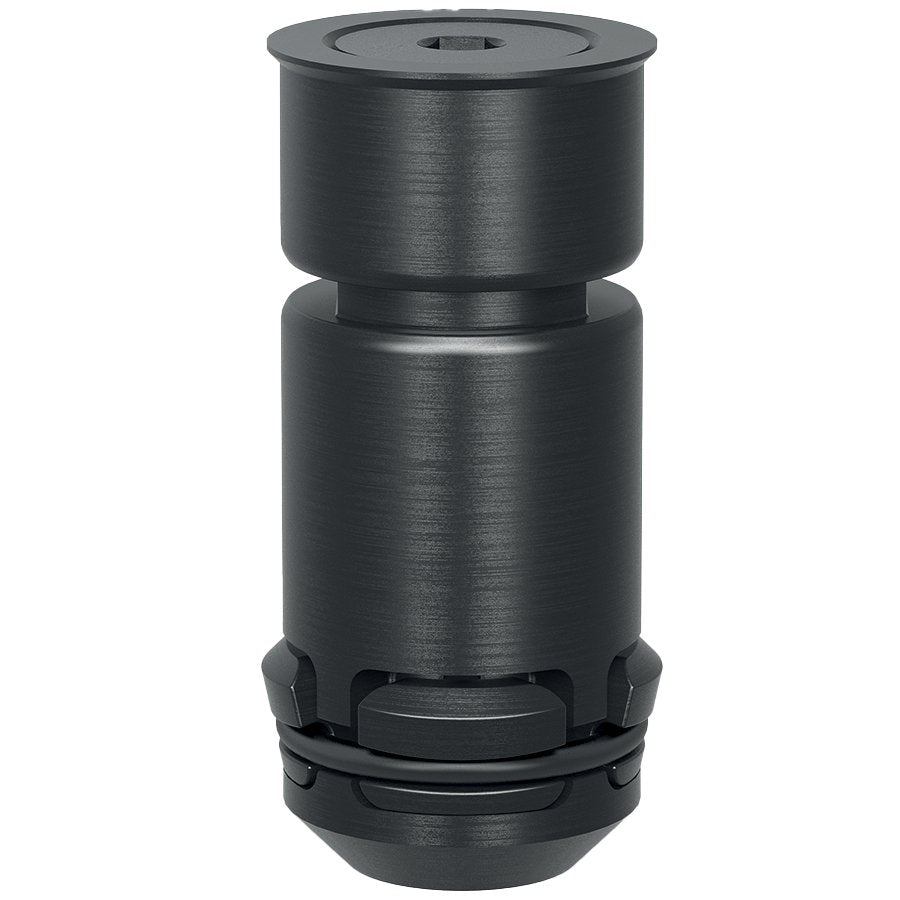

The Areal Clamping Flush Mount Bolt Double (Burnished) provides a compact and reliable solution for connecting two components in Siegmund System 28 setups. Its flush design ensures a countersunk connection that stays smooth with the surface, making it particularly useful for precision applications.
- Measures 65mm (2.56" Inches) in length with a burnished finish.
- Provides clamping range of 47–53mm (1.85"–2.09" Inches).
- Generates shear force of 200kN (44,961 lbf.) for secure clamping.
- Delivers tensile force of 10kN (2,248 lbf.) in steel and 6kN (1,349 lbf.) in aluminum.

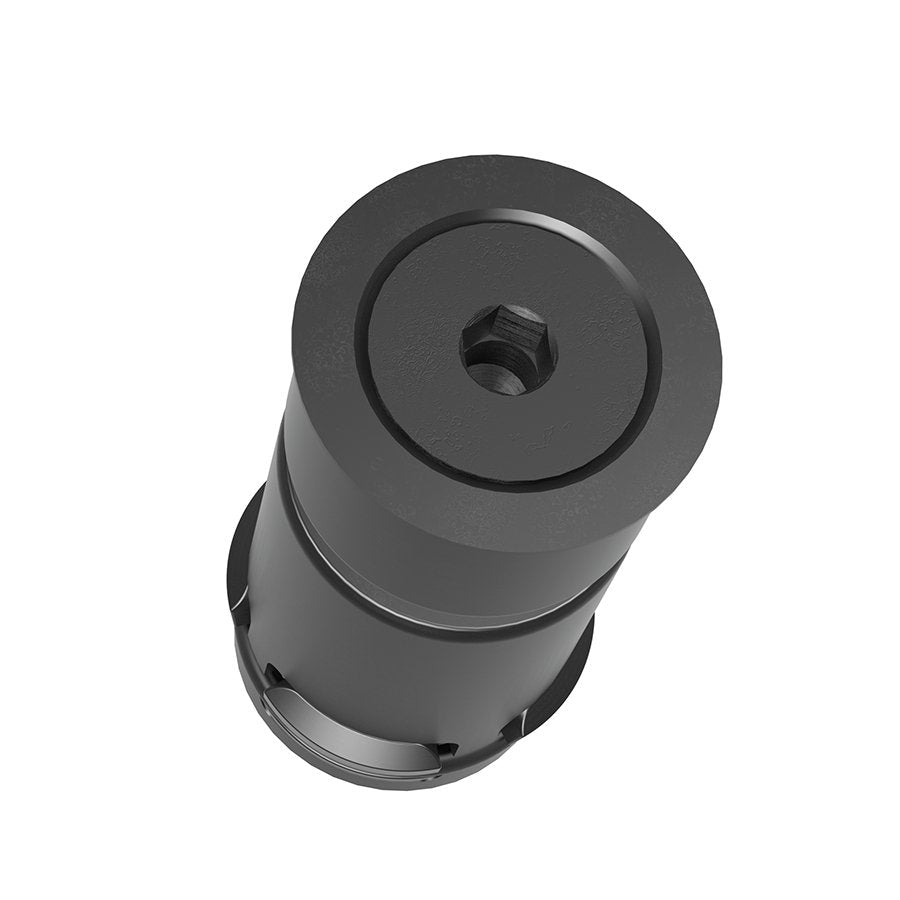

- Hexagon socket (Size 6) enables easy and reliable tightening.
- Weighs 0.64 lbs. (0.29 kg.), making it lightweight yet strong.
Key Features:
- Flush mount design allows smooth countersunk connections.
- Strong tensile and shear performance ensures secure fastening.
- Optimized for aluminum clamping without surface damage.
- Compact, lightweight, and compatible with Siegmund System 28 Metric setups.
Specifications:
- Series: Siegmund System 28 Metric Series
- Item No.: 2-280595
- Length: 65mm (2.56" Inches)
- Weight: 0.64 lbs. (0.29 kg.)
- Clamping Range: 47–53mm (1.85"–2.09" Inches)
- Shearing Force: 200kN (44,961 lbf.)
- Tightening Torque Steel: 50Nm
- Tightening Torque Aluminum: 20Nm
- Tensile Force Steel: 10kN (2,248 lbf.)
- Tensile Force Aluminum: 6kN (1,349 lbf.)
Common Uses:

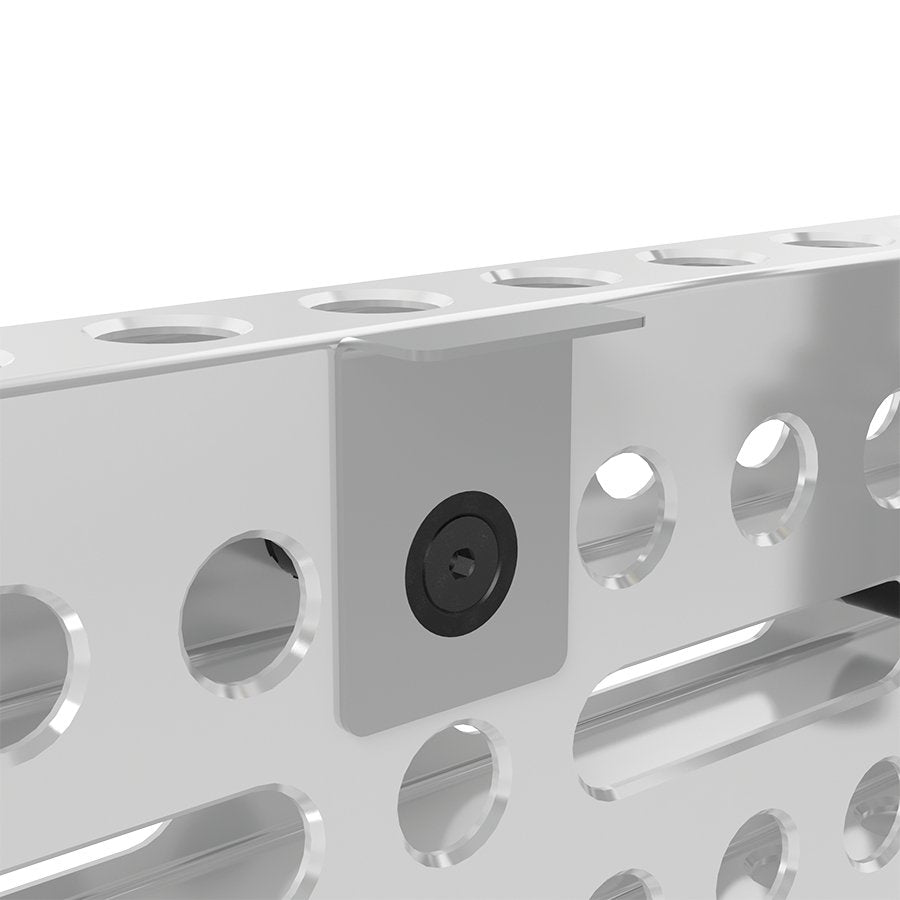

This flush mount clamping bolt is used for connecting two components with a smooth, countersunk fit in Siegmund System 28 assemblies. It is ideal for aluminum profiles where secure clamping with a flat surface finish is required. Fabricators use it for precise fixturing without obstructions in welding and fabrication environments.
