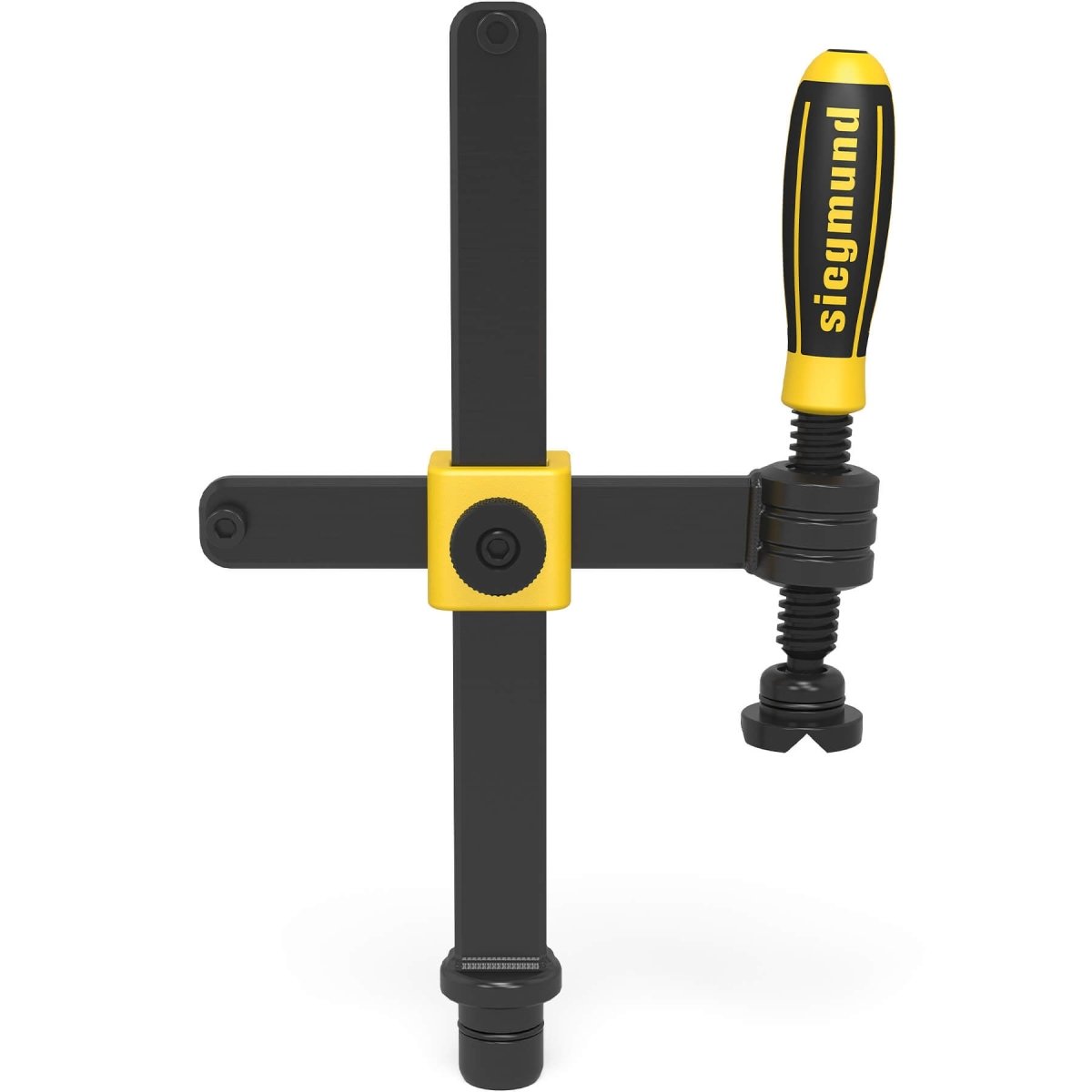

The Siegmund Professional Screw Clamp delivers fast, secure, and precise clamping for demanding welding and fixturing tasks. Built for heavy shop use, it ensures maximum efficiency with quick adjustments and reliable holding power.
- Provides clamping width of 220mm (8.66" Inches) and height of 310mm (12.20" Inches).
- Generates up to 5 kN (1124.0 lbf.) of clamping force for secure positioning.
- Nitrided finish provides outstanding wear resistance and long service life.
- Reinforced vertical bar ensures stability under heavy use.
- Adjustable clamping pressure with torque wrench compatibility for precision setups.
- Weighs 5.27 lbs. (2.39 kg.), offering strong performance with manageable handling.
Key Features:
- Nitrided finish enhances durability and reduces wear.
- Delivers high clamping force with precise adjustability.
- Reinforced vertical bar increases reliability in demanding setups.
- Quick adjustments save time and improve workflow efficiency.
Specifications:
- Item No.: 2-280610.N
- System: Siegmund System 28 Metric Series
- Width: 220mm (8.66" Inches)
- Height: 310mm (12.20" Inches)
- Weight: 5.27 lbs. (2.39 kg.)
- Max. Clamping Force: 5 kN (1124.0 lbf.)
- Finish: Nitrided Steel
Common Uses:

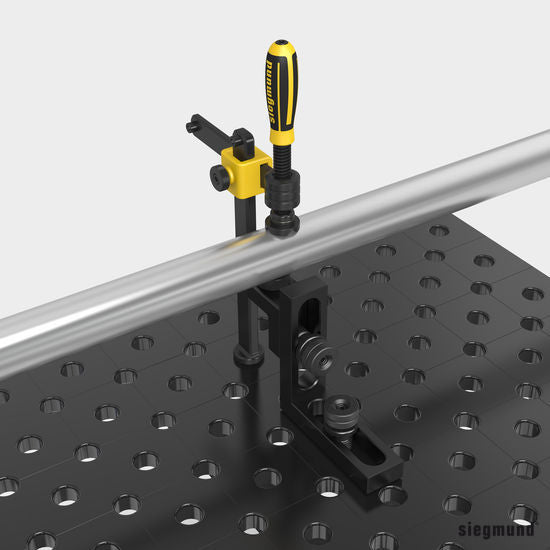

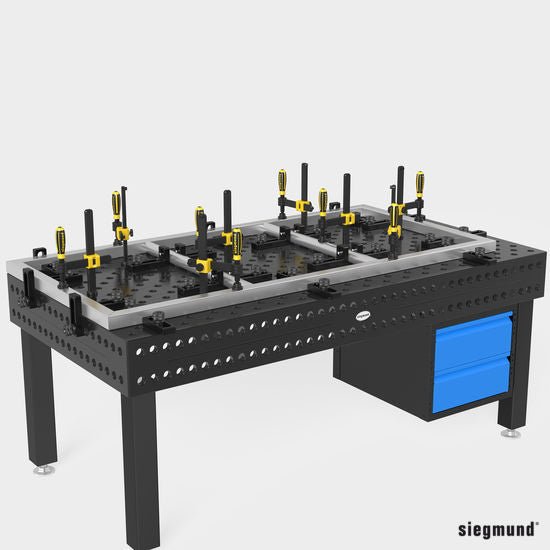

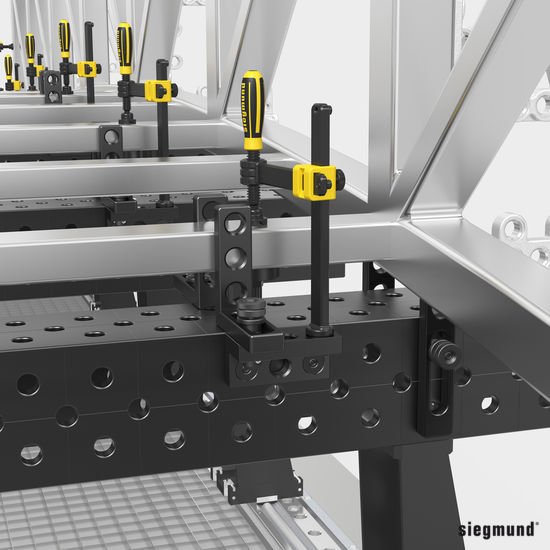

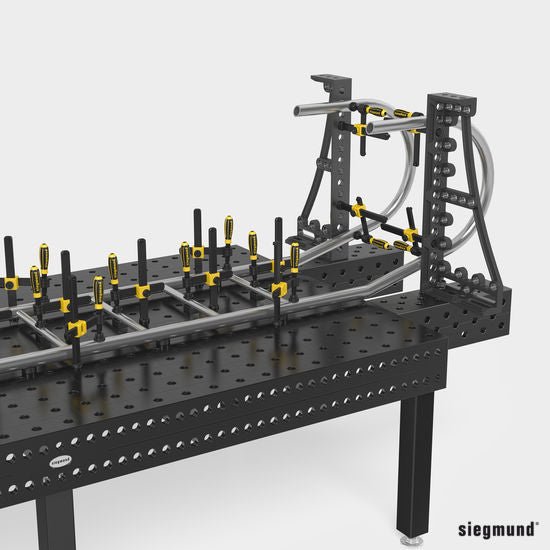

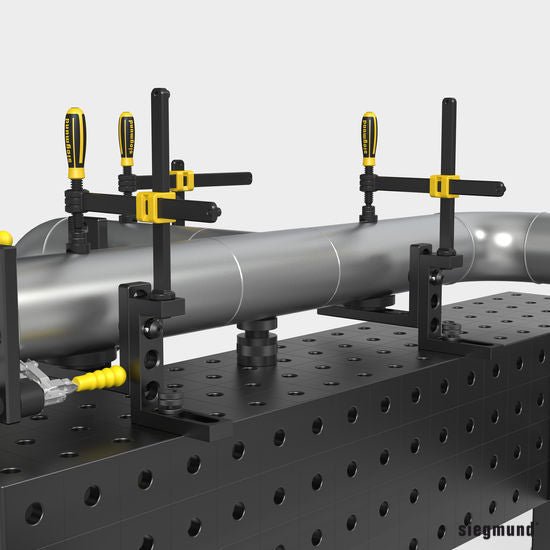

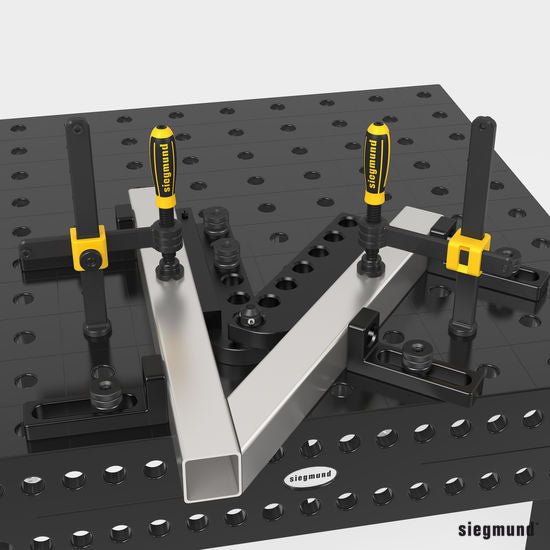

The Professional Screw Clamp provides strong, precise clamping for welding tables and fixtures in the Siegmund System 28 series. Its reinforced construction and nitrided finish ensure durability while delivering secure, repeatable positioning of components. Ideal for setups requiring fast adjustments, consistent force, and long-term reliability in fabrication environments.
Parts Used to Create the Siegmund Item No. 2-280610.N:
(x1) 2-280632.N
(x1) 2-280631.N
(x1) 2-280617
(x1) 2-280662.2
(x1) 2-280618.N
(x1) 2-280634.N
(x1) 2-280657.1.N
