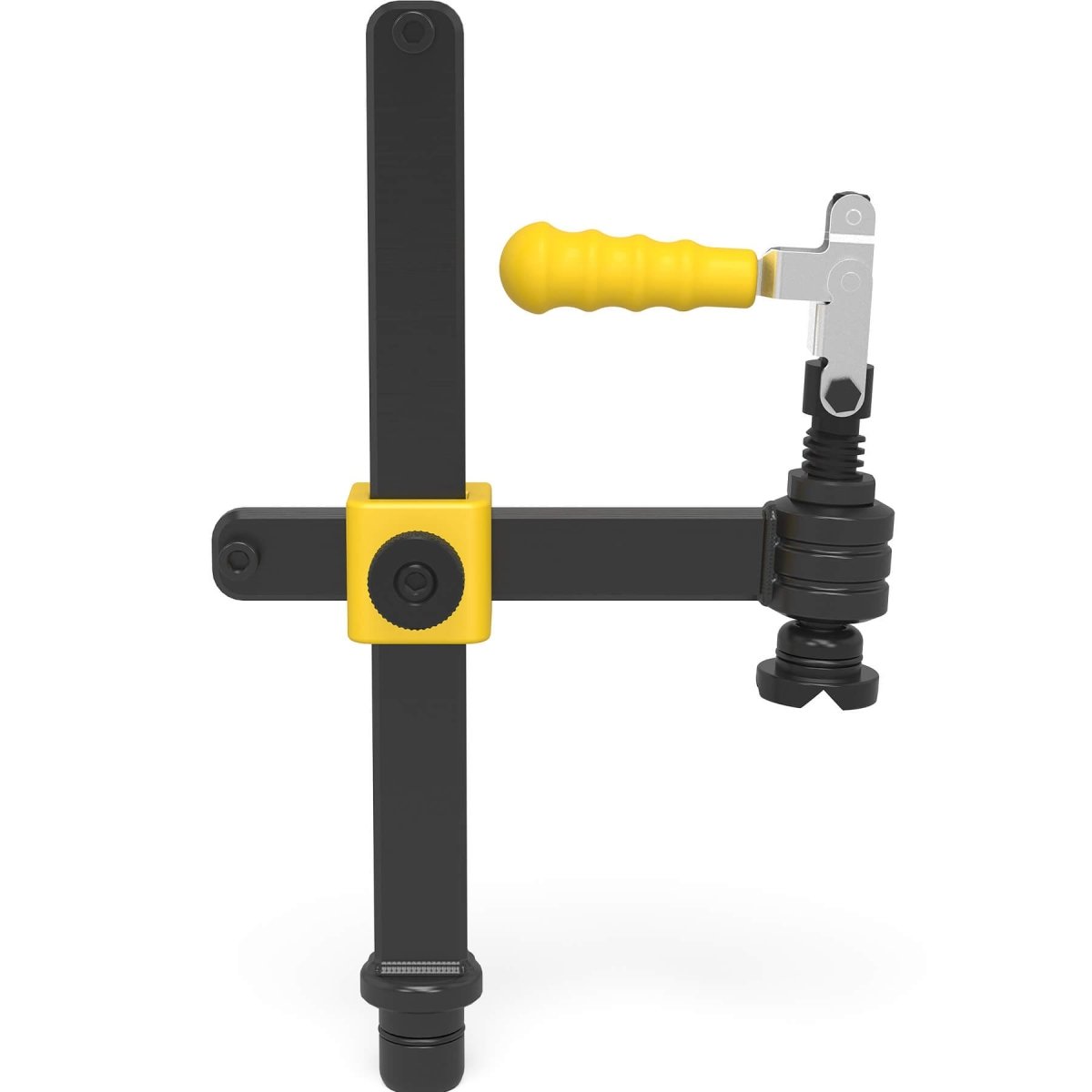

The Siegmund Professional Screw Clamp with vertical action toggle provides quick, stable clamping from above for demanding welding and fabrication setups. Its reinforced bar and nitrided finish ensure reliable performance and long service life in shop environments.
- Provides clamping width of 222mm (8.74" Inches) and height of 310mm (12.20" Inches).
- Generates up to 2.5 kN (562.0 lbf.) of clamping force with vertical action stroke.
- Vertical clamping motion increases holding stability compared to fast tension clamps.
- Nitrided steel finish delivers superior wear resistance and longevity.
- Weighs 6.30 lbs. (2.86 kg.), designed for strength with manageable handling.
- Handwheel with cast iron cross enables quick height adjustments.
Key Features:
- Vertical clamping stroke provides stronger holding stability.
- Nitrided finish resists wear and extends service life.
- Reinforced vertical bar ensures rigidity under heavy use.
- Quick adjustment saves setup time in daily operations.
Specifications:
- Item No.: 2-280611.1
- System: Siegmund System 28 Metric Series
- Width: 222mm (8.74" Inches)
- Height: 310mm (12.20" Inches)
- Weight: 6.30 lbs. (2.86 kg.)
- Max. Clamping Force: 2.5 kN (562.0 lbf.)
- Finish: Nitrided Steel
Common Uses:

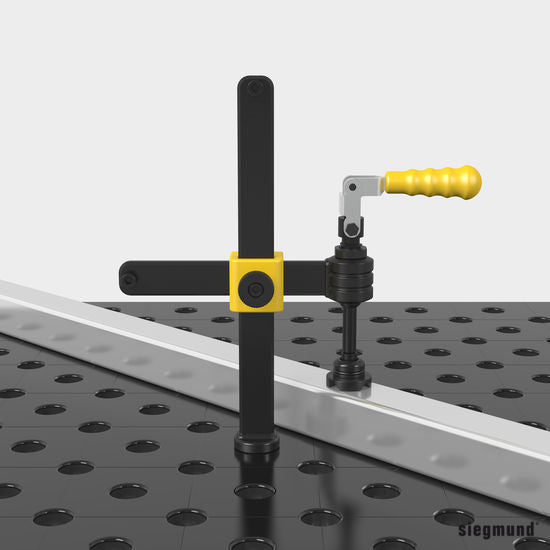

The Professional Screw Clamp with vertical action toggle provides precise, stable clamping for System 28 setups where vertical pressure is required. Its reinforced construction ensures consistent performance under repetitive use, making it ideal for welding, fabrication, and fixture assembly requiring secure, overhead clamping.
Parts Used to Create the Siegmund Item No. 2-280611.1:
(x1) 2-280632.N
(x1) 2-280631.N
(x1) 2-280617
(x1) 2-280662.2
(x1) 2-280618.N
(x1) 2-009902.1
(x1) 2-280657.1.N
