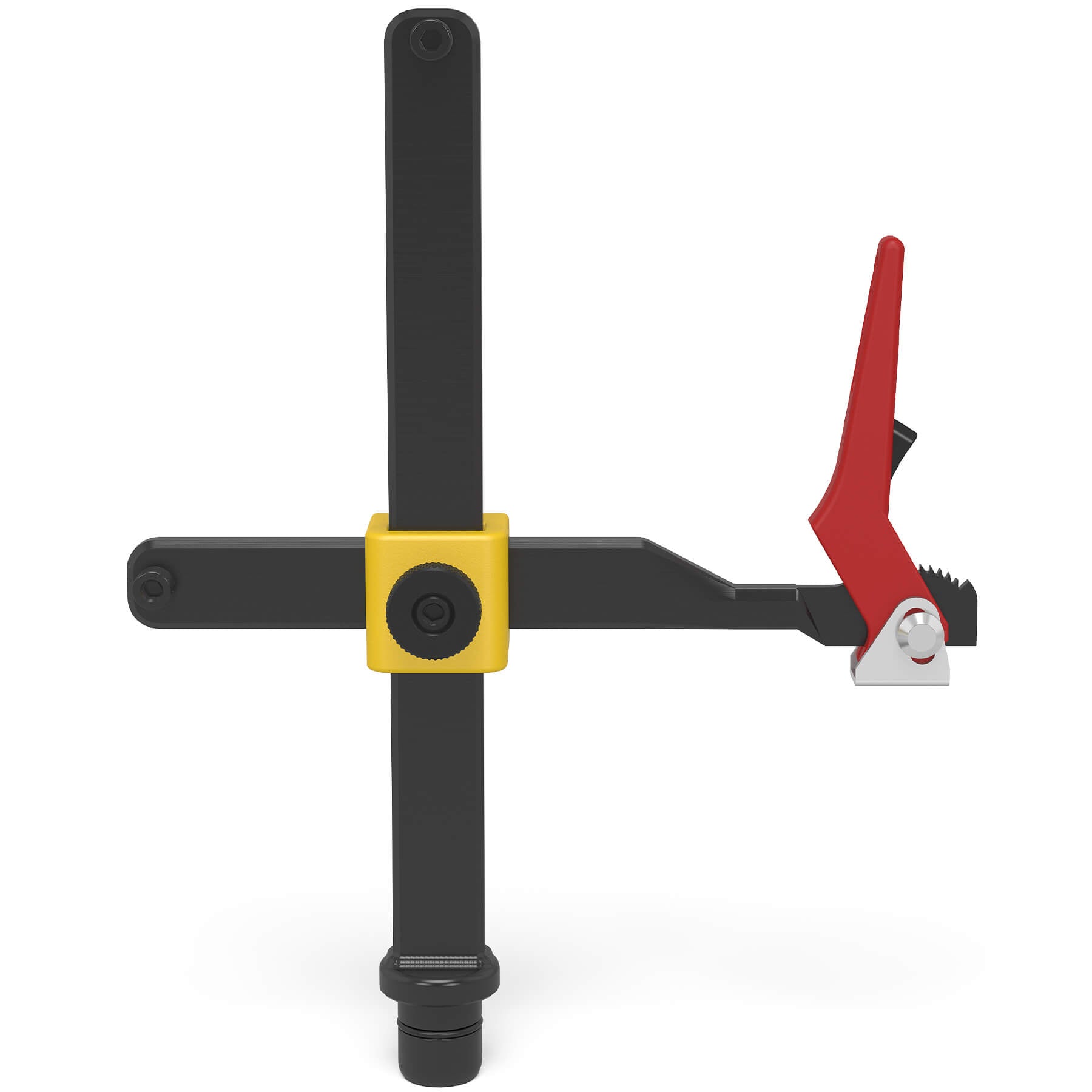

The Siegmund Professional Fast Tension Clamp delivers speed, strength, and precision for welding setups where efficiency matters most. Its ratchet mechanism allows powerful clamping with quick release, cutting down on setup time while ensuring secure holding.
- Provides 275mm (10.83" Inches) clamping width and 310mm (12.20" Inches) height.
- Generates up to 5 kN (1124.0 lbf.) of clamping force for reliable holding power.
- Nitrided finish ensures durability and wear resistance under heavy use.
- Vertical bar is reinforced for maximum stability in demanding setups.
- Weighs 5.77 lbs. (2.62 kg.), offering strong performance without excess bulk.
Key Features:
- Fast ratchet mechanism speeds up clamping and release.
- Nitrided finish increases service life and protects against wear.
- Reinforced vertical bar provides added rigidity.
- Efficient clamping power reduces downtime during setup.
Specifications:
- Item No.: 2-280615.N
- System: Siegmund System 28 Metric Series
- Width: 275mm (10.83" Inches)
- Height: 310mm (12.20" Inches)
- Weight: 5.77 lbs. (2.62 kg.)
- Max. Clamping Force: 5 kN (1124.0 lbf.)
- Finish: Nitrided Steel
Common Uses:
The Professional Fast Tension Clamp provides rapid, secure clamping for welding and fabrication in the Siegmund System 28 series. Its ratchet design allows quick force adjustment and easy release, making it ideal for high-output environments where time savings and repeatable strength are critical.
Parts Used to Create the Siegmund Item No. 2-280615.N:
(x1) 2-280632.N
(x1) 2-280637.N
(x1) 2-280617
(x1) 2-280662.2
