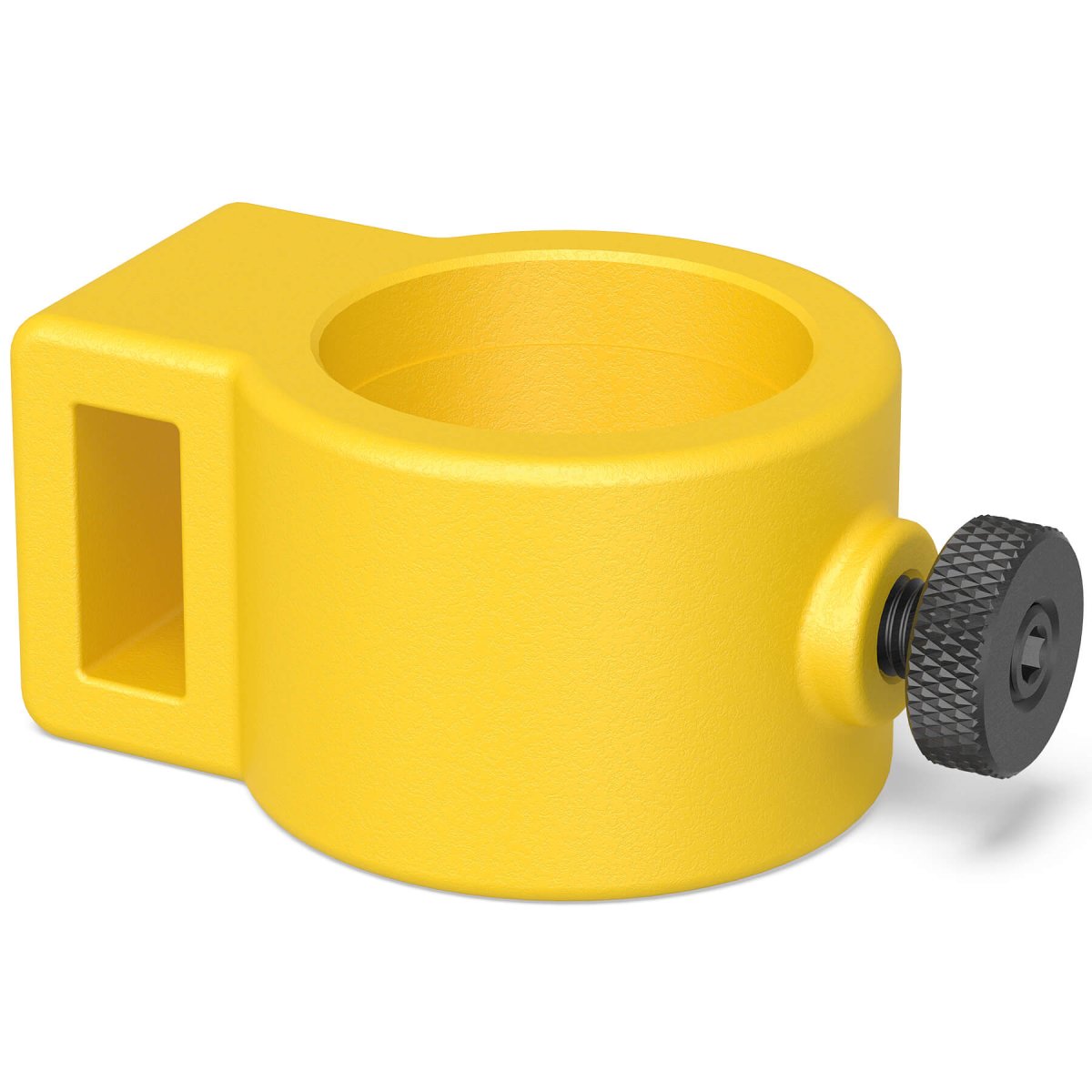

The Siegmund Cast Iron Cross with Handwheel provides secure and adjustable horizontal connections within Multi Clamp Tower assemblies. Designed for quick alignment and firm locking, it enhances tower versatility and stability in welding and fabrication setups.

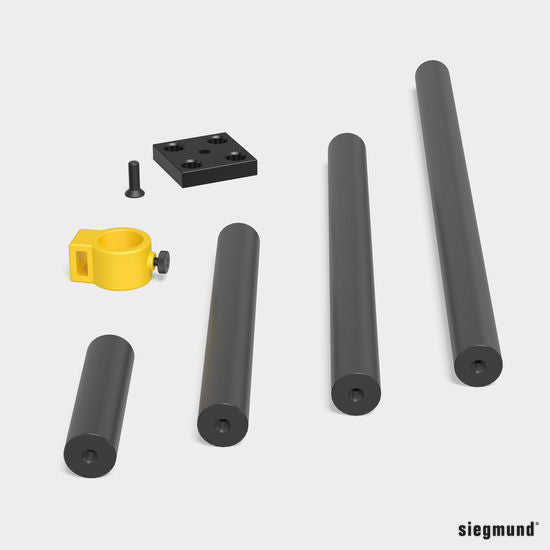

- This component connects horizontal bars to vertical Multi Clamp Tower pipes.
- The integrated handwheel ensures quick tightening and secure adjustment.
- Durable cast iron construction provides long service life.
- Precision machining ensures accurate fit and stability.
- Compatible with Siegmund System 28 Metric Series Multi Clamp Towers.
Key Features:
- Heavy-duty cast iron body with built-in handwheel.
- Ensures fast adjustment and rigid horizontal connections.
- Fully compatible with Siegmund System 28 Multi Clamp Tower assemblies.
- Supports precise alignment for complex clamping setups.
- Provides long-lasting durability under shop conditions.
Specifications:
- Item No.: 2-280617.5H
- System: Siegmund System 28 Metric Series
- Length: 104mm (4.09" Inches)
- Width: 80mm (3.15" Inches)
- Height: 56mm (2.20" Inches)
- Weight: 2.98 lbs. (1.35 kg.)
- Material: Cast Iron with Handwheel
Common Uses:

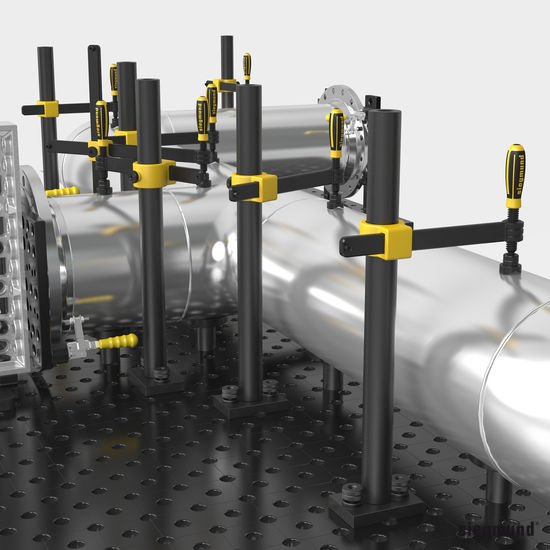

This cast iron cross with handwheel enables horizontal extensions in Multi Clamp Tower assemblies, providing strong and adjustable connections for bars and clamping elements. Fabricators rely on it to secure cross-supports with speed and accuracy, ensuring stable and repeatable setups for welding and fixturing.
