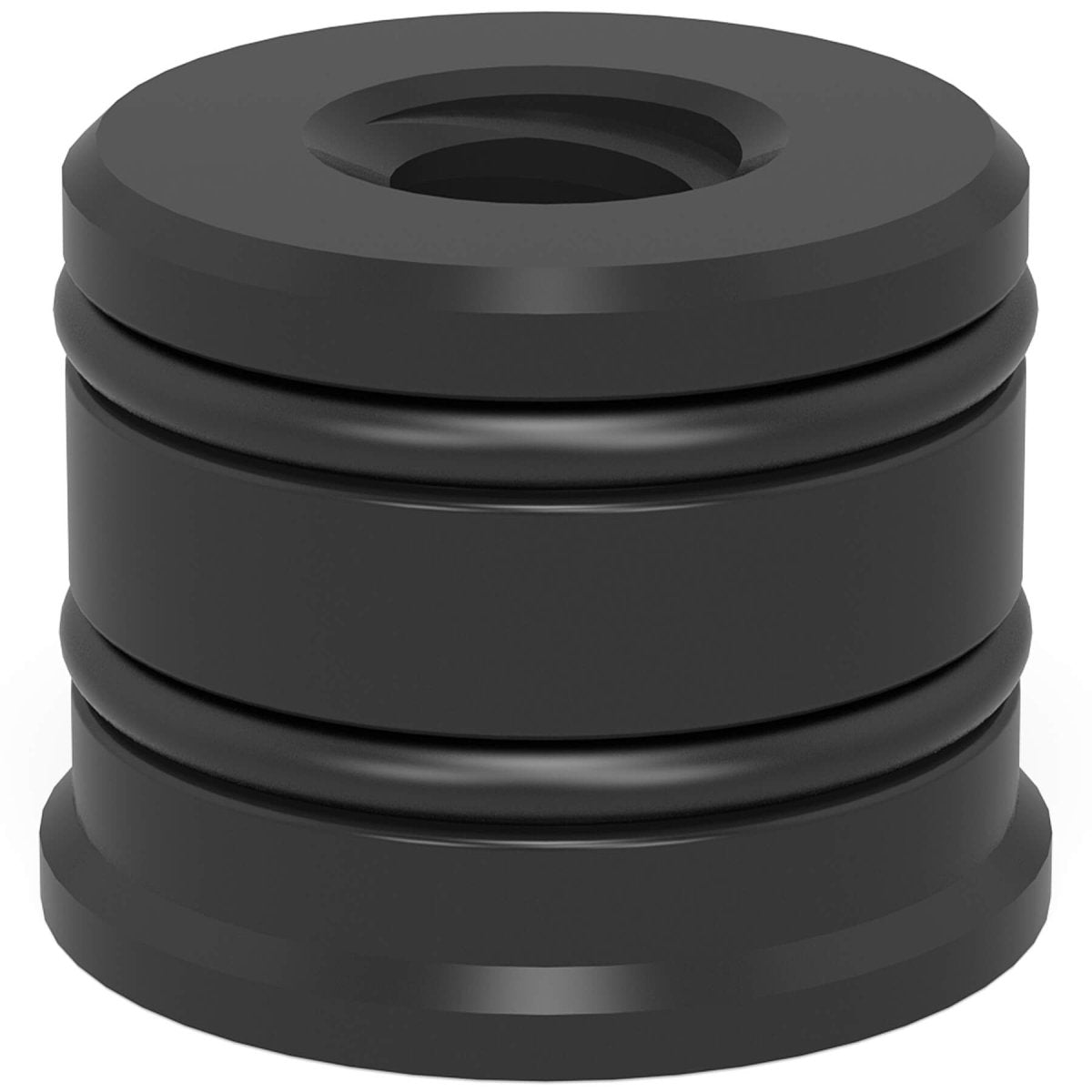

The 2-280619 Thread Bushing Tr 12x3 offers a precise, compact connection for integrating screw clamp arbors within Siegmund System 28 setups. Its burnished steel finish ensures smooth operation and long-lasting durability, even in demanding welding and fixturing environments.
- With a 32mm (1.26" Inches) diameter, it seats securely in System 28 boreholes.
- Its 23mm (0.91" Inches) height provides stable alignment for screw clamp arbors.
- At only 0.20 lbs. (0.09 kg.), it adds strength without excess weight.
- The Acme trapezoidal thread 12x3 ensures reliable compatibility with System 16 clamp arbors.
- Designed for tight spaces, it supports precise and repeatable horizontal clamping.
Key Features:
- Burnished finish delivers strength and wear resistance.
- Compact size allows reliable use in restricted workspace setups.
- Compatible with System 28 boreholes and System 16 clamp arbors.
- Provides stable, repeatable performance in demanding fixturing.
Specifications:
- Item No.: 2-280619
- System: Siegmund System 28 Metric Series
- Height: 23mm (0.91" Inches)
- Diameter: 32mm (1.26" Inches)
- Weight: 0.20 lbs. (0.09 kg.)
- Material: Burnished Steel
Common Uses:

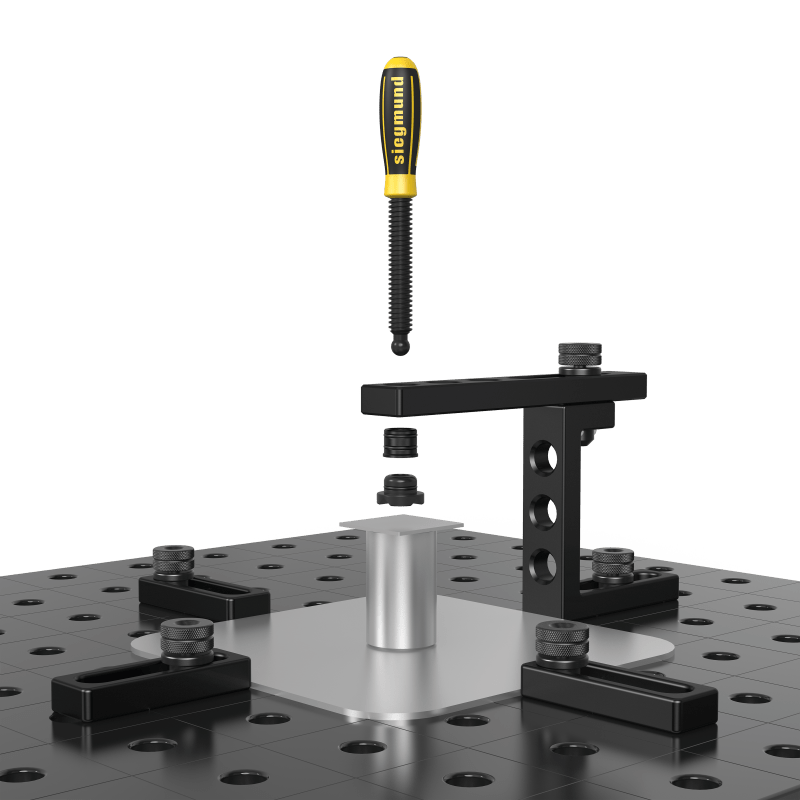

The 2-280619 Thread Bushing is used for connecting screw clamp arbors within Siegmund System 28 setups while incorporating System 16 spindle compatibility. It provides a stable, compact, and wear-resistant connection for complex clamping assemblies, making it especially effective in restricted workspaces that demand precision and repeatability.
