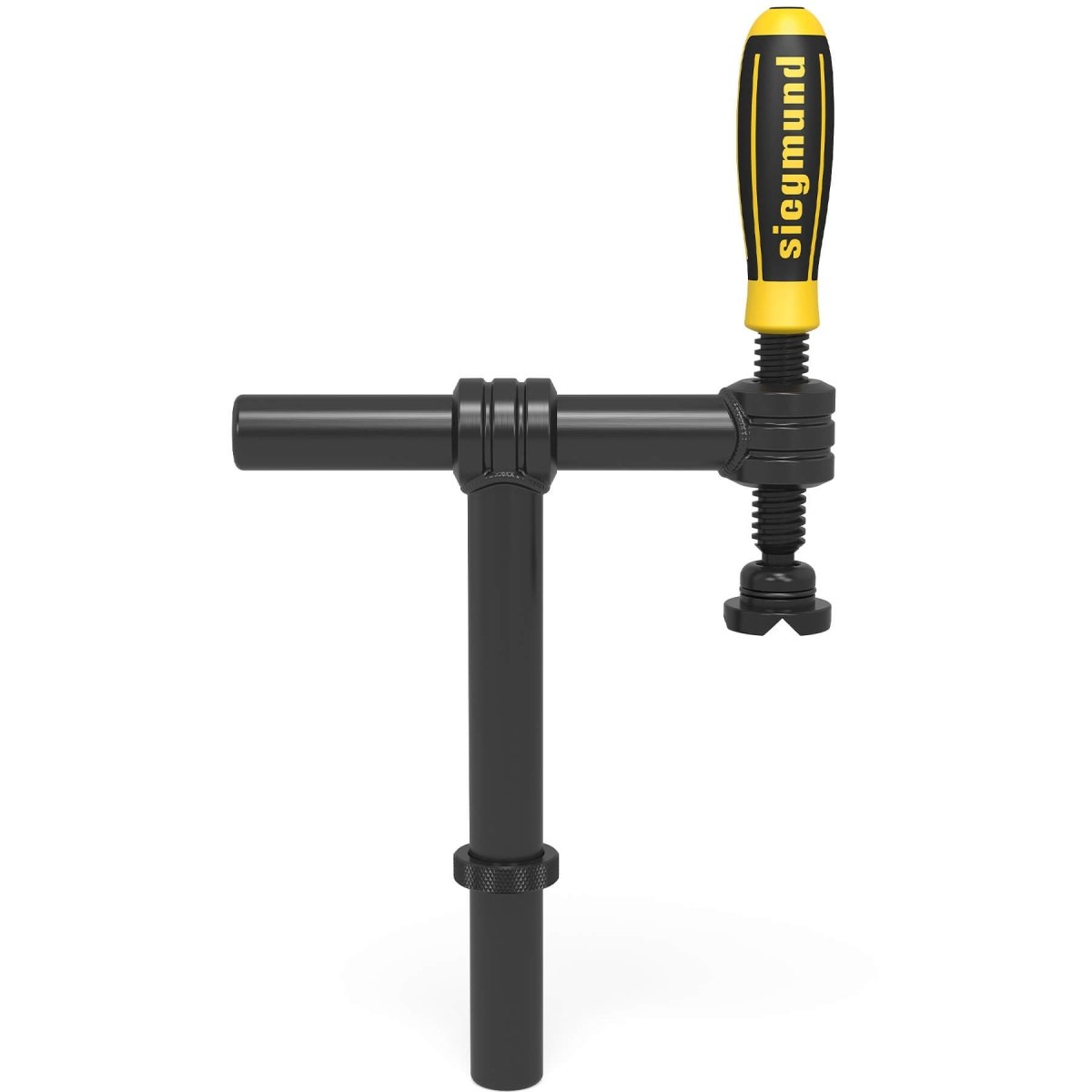

The Siegmund Basic Pipe Clamp 180° provides secure, adjustable clamping of components at a 180° angle in Siegmund System 28 setups. Its combination of burnished and nitrided finishes ensures both precision and long service life in heavy-duty welding environments.
- Provides 220mm (8.66" Inches) width and 250mm (9.84" Inches) height clamping capacity.
- Delivers up to 3 kN (674.4 lbf.) of clamping force for strong, reliable holding.
- Round pipe design allows horizontal adjustment within 45–180mm range.
- Burnished and nitrided finishes enhance strength and resistance to wear.
- Weighs 5.03 lbs. (2.28 kg.), offering strength without excess bulk.
- Equipped with interchangeable prism and reinforced vertical pipe for flexibility.
Key Features:
- Burnished and nitrided finishes combine durability and wear protection.
- Adjustable round pipe design provides flexible positioning.
- Delivers consistent 3 kN (674.4 lbf.) clamping force.
- Compact, rugged build ensures efficiency in daily shop use.
Specifications:
- Item No.: 2-280625
- System: Siegmund System 28 Metric Series
- Width: 220mm (8.66" Inches)
- Height: 250mm (9.84" Inches)
- Weight: 5.03 lbs. (2.28 kg.)
- Max. Clamping Force: 3 kN (674.4 lbf.)
- Finish: Burnished/Nitrided
Common Uses:
The Basic Pipe Clamp 180° delivers reliable clamping of parts aligned to a 180° angle within Siegmund System 28 setups. Its adjustable horizontal positioning enables quick adaptation to different workpiece sizes, ensuring secure, repeatable holding for fabrication and welding applications.
Parts Used to Create the Siegmund Item No. 2-280625:
(x1) 2-280677
(x1) 2-280644.N
(x1) 2-280618.N
(x1) 2-280634.N
(x1) 2-280657.1.N
(x1) 2-280653.N
