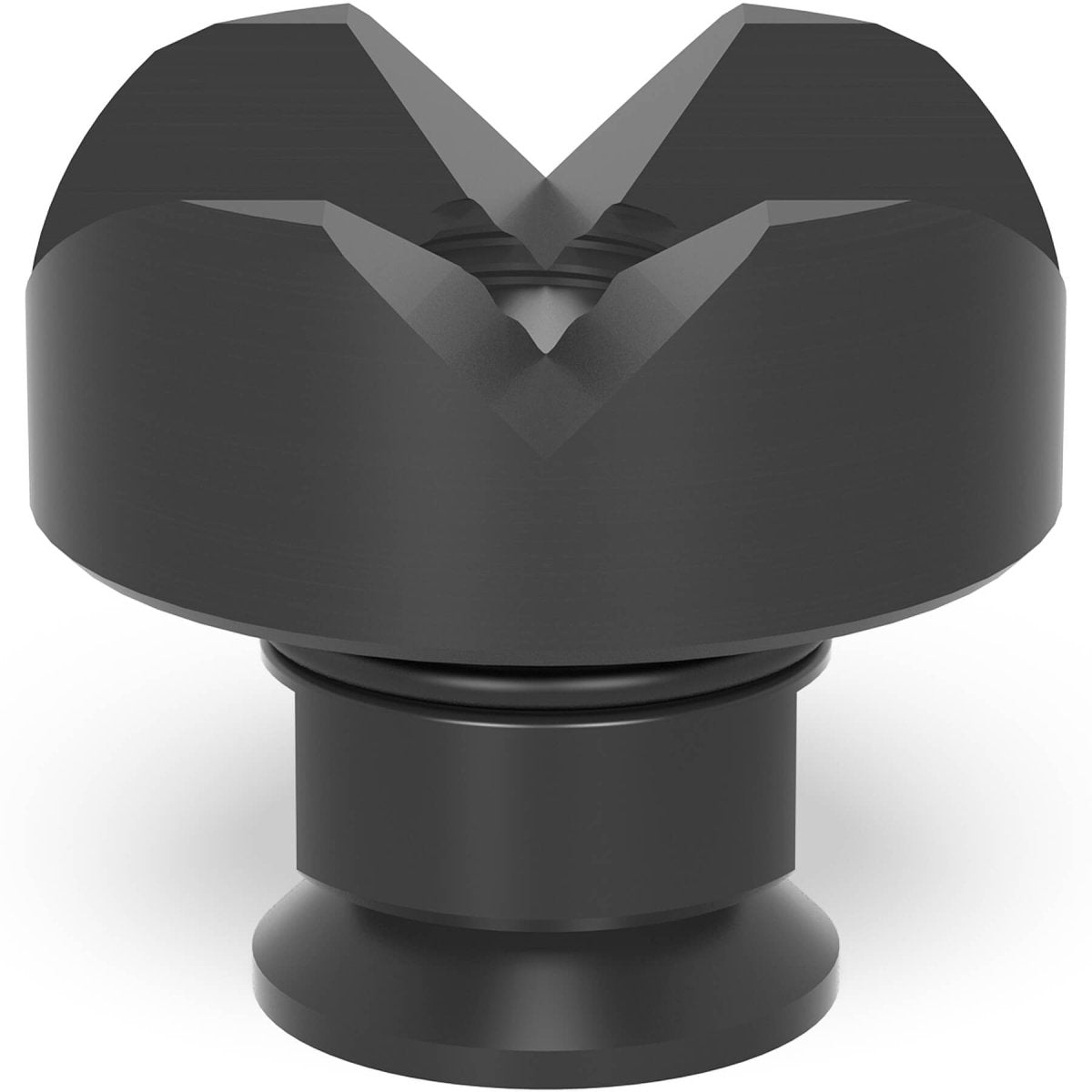

The 2-280645.1.PA Vario Prism Ø50 90°/120° with screwed-in collar offers lightweight, scratch-safe clamping for both round pipes and 45° twisted square profiles within Siegmund System 28 setups. Constructed from polyamide, it prevents surface damage on sensitive materials while maintaining reliable, stable positioning.
- The 50mm (1.97" Inches) diameter base provides solid support in boreholes.
- Its 20mm (0.79" Inches) height delivers compact, precise alignment.
- Weighing only 0.07 lbs. (0.03 kg.), it is extremely lightweight and easy to handle.
- Dual 90°/120° geometry allows clamping flexibility for varied workpieces.
- Supports round and twisted profiles up to 50mm (1.97" Inches) diameter.
- M16 screwed-in collar enables secure fastening and repositioning, with extension options for height adjustment.
Key Features:
- Polyamide construction protects scratch-sensitive surfaces.
- Dual-angle design supports both round pipes and twisted profiles.
- Lightweight build allows fast adjustments and easy handling.
- M16 collar thread ensures secure positioning and flexibility with extensions.
- Fully compatible with Siegmund System 28 boreholes and clamps.
Specifications:
- Item No.: 2-280645.1.PA
- System: Siegmund System 28 Metric Series
- Height: 20mm (0.79" Inches)
- Diameter: 50mm (1.97" Inches)
- Weight: 0.07 lbs. (0.03 kg.)
- Material: Polyamide
- Thread: M16 (compatible with prism extensions, e.g., Item No. 280649)
Common Uses:
The 2-280645.1.PA Vario Prism Ø50 is used to clamp both round pipes and twisted profiles in welding and fabrication environments where surface protection is critical. Its polyamide construction prevents scratching while offering secure and flexible positioning within Siegmund System 28 setups.
