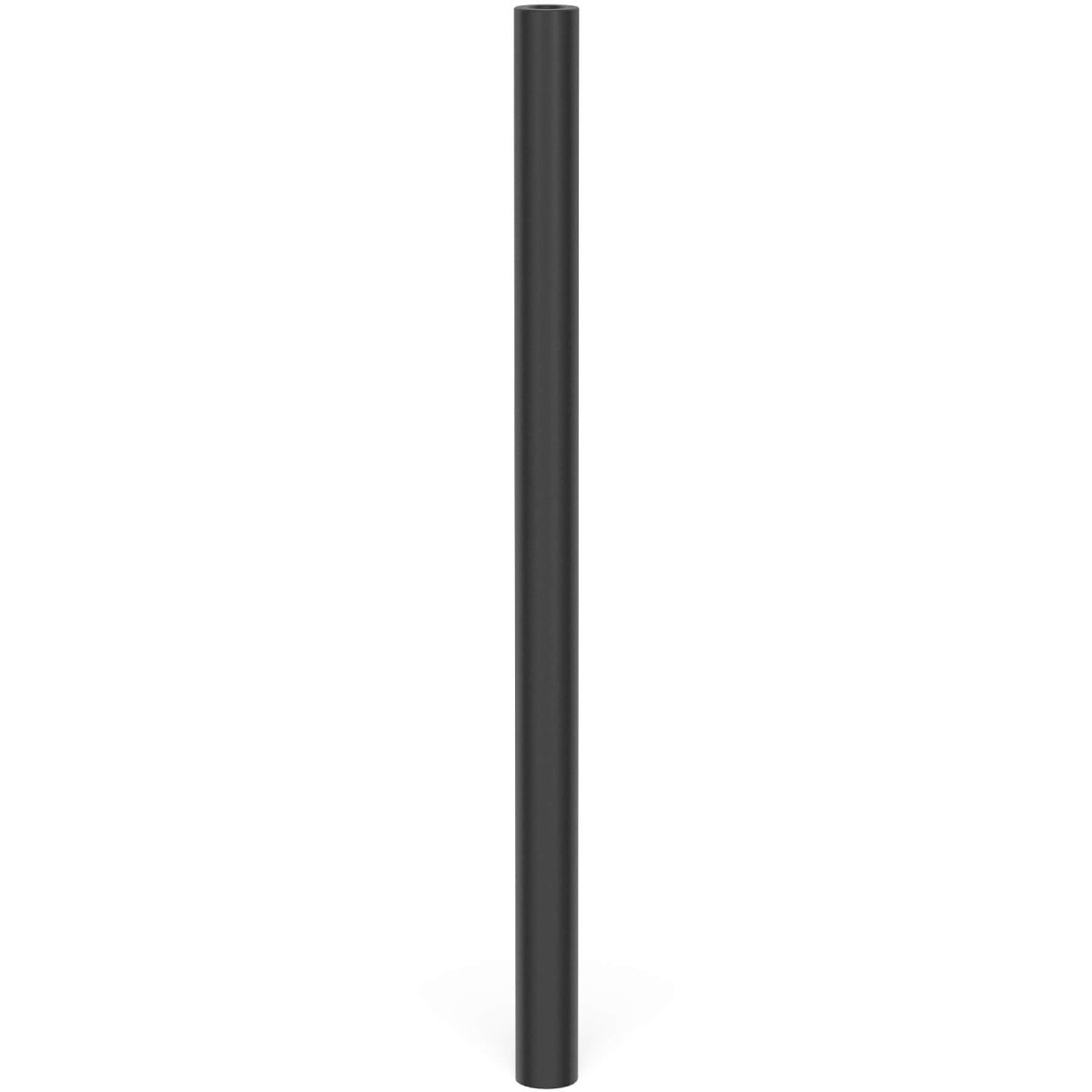

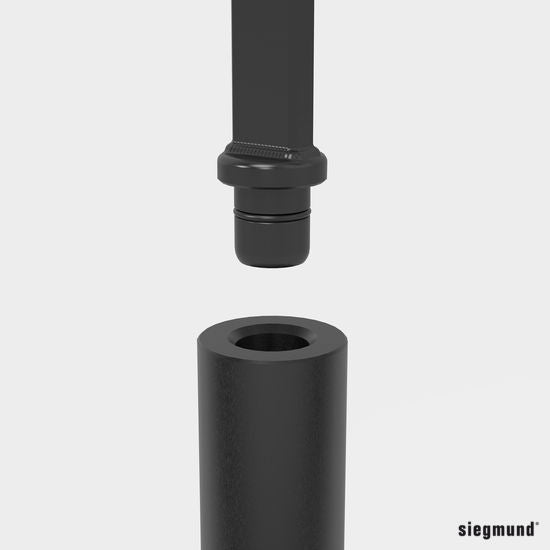

The Siegmund Vertical Pipe 975mm provides a stable and precise extension option for Multi Clamp Towers, ensuring strong vertical support in complex welding and fixturing setups. Built for durability, it allows fabricators to expand table configurations with confidence.
- This vertical pipe delivers extended height for versatile clamping applications.
- It creates a rigid mounting point for screw clamps, prisms, and spacers.
- The 57mm (2.24" Inches) diameter ensures excellent stability and load support.

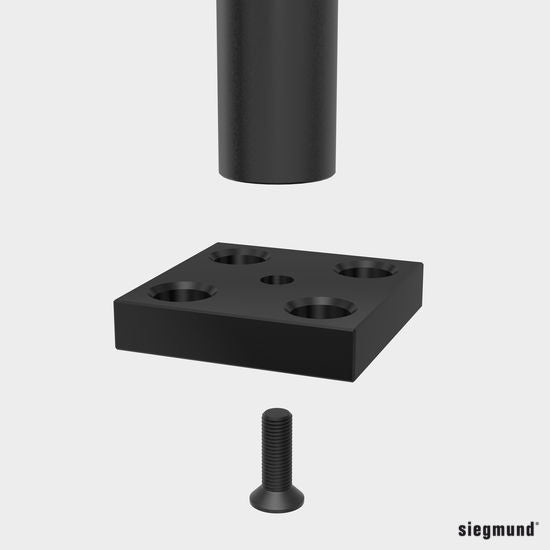

- Bolts secure the pipe tightly to the Multi Clamp Tower and worktable.
- The plasma-nitrided finish resists wear, corrosion, and deformation.
Key Features:
- Strong steel construction for maximum durability.
- 57mm (2.24" Inches) diameter provides rigid support.

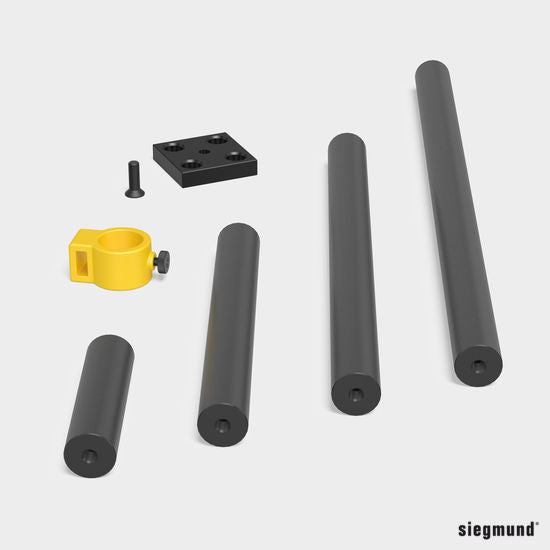

- Compatible with Siegmund System 28 Metric Series Multi Clamp Towers.
- Plasma-nitrided surface ensures longevity in heavy-duty use.
- Expands tower height to 975mm (38.39" Inches) for greater flexibility.
Specifications:
- Item No.: 2-280646.4
- System: Siegmund System 28 Metric Series
- Height: 975mm (38.39" Inches)
- Diameter: 57mm (2.24" Inches)
- Weight: 12.19 lbs. (5.53 kg.)
- Material: Plasma Nitrided Steel
Common Uses:
This vertical pipe extends Multi Clamp Towers to a taller working height, enabling secure positioning of clamps, prisms, and spacers in large-scale welding assemblies. It provides a rigid, stable support structure for complex fixturing needs, ensuring precision alignment and reliable performance in demanding fabrication environments.
