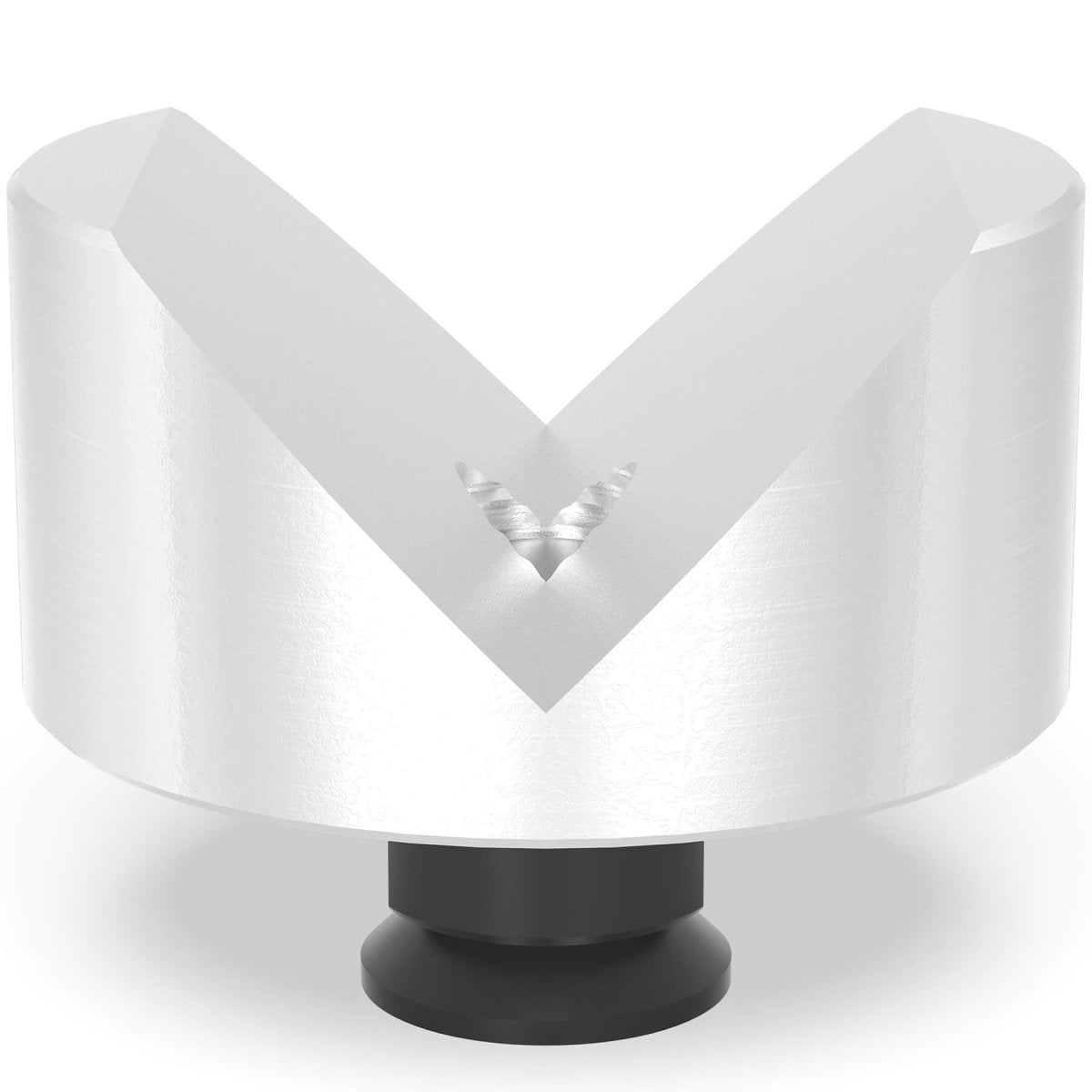

The 2-280647.1.A Prism Ø80 90° with screwed-in collar is a lightweight and durable clamping solution for Siegmund System 28 welding and fixturing. Its anodized aluminum construction ensures easy handling while providing a stable and secure support surface. The 90° geometry supports pipes up to 100mm (3.94" Inches) in diameter and rectangular profiles with consistent accuracy.
- The 80mm (3.15" Inches) diameter provides strong, stable support.
- Its 40mm (1.57" Inches) height ensures accurate pipe alignment.
- Weighing only 1.21 lbs. (0.55 kg.), it is lighter than steel alternatives for portability.
- The anodized aluminum finish protects against corrosion and wear.
- The M16 screwed-in collar allows secure fastening and easy repositioning.
- Height can be adjusted with prism extensions for additional versatility.
Key Features:
- Lightweight anodized aluminum construction for portability and corrosion resistance.
- 90° geometry delivers stable clamping for both round and rectangular pipes.
- M16 collar ensures secure installation and repositioning flexibility.
- Compatible with Siegmund System 28 boreholes and prism extensions.
Specifications:
- Item No.: 2-280647.1.A
- System: Siegmund System 28 Metric Series
- Height: 40mm (1.57" Inches)
- Diameter: 80mm (3.15" Inches)
- Weight: 1.21 lbs. (0.55 kg.)
- Material: Anodized Aluminum
- Thread: M16 (compatible with prism extensions, e.g., Item No. 280649)
Common Uses:

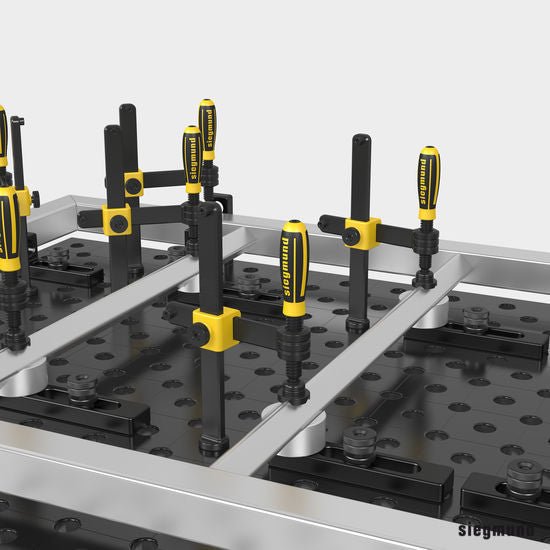

The 2-280647.1.A Prism Ø80 90° is commonly used for lightweight clamping of pipes and rectangular profiles in fabrication setups. Its anodized aluminum body offers both corrosion resistance and reduced weight, making it ideal for applications requiring frequent repositioning in Siegmund System 28 environments.
