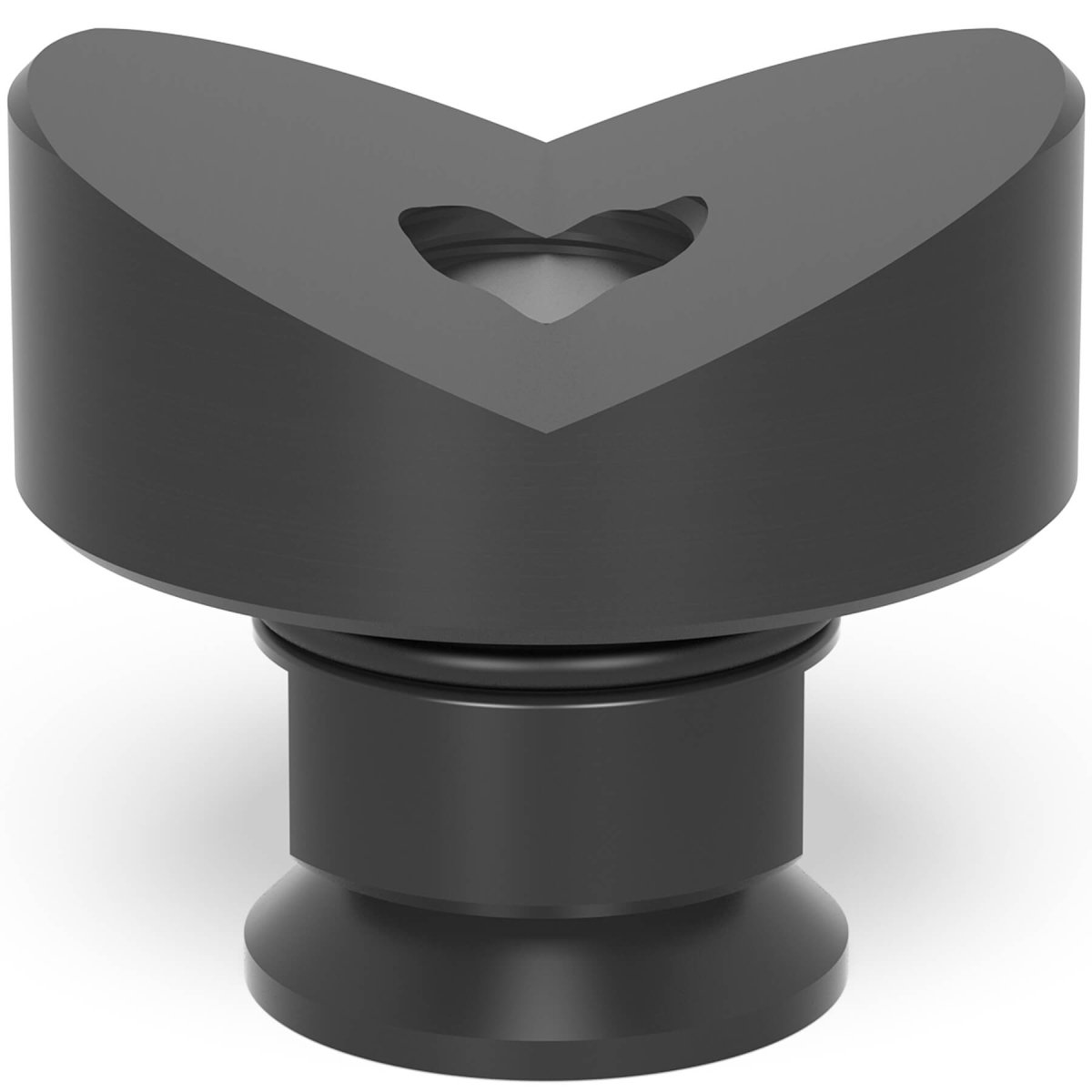

The 2-280648.1.PA Prism Ø50 135° with screwed-in collar offers a lightweight, scratch-safe clamping solution for pipes and profiles within Siegmund System 28 setups. Made from polyamide, it prevents surface damage on sensitive or high-value materials while maintaining precise and stable positioning.
- The 50mm (1.97" Inches) diameter base ensures solid contact in boreholes.
- Its 20mm (0.79" Inches) height delivers compact alignment and easy handling.
- Weighing just 0.07 lbs. (0.03 kg.), it is exceptionally lightweight.
- The 135° angle provides secure support for pipes up to 80mm (3.15" Inches) in diameter.

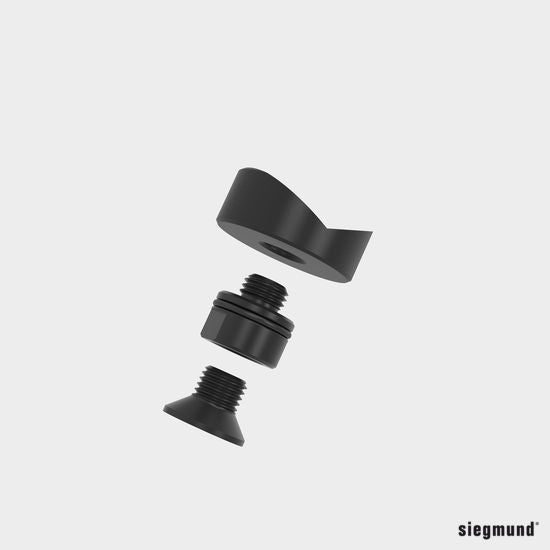

- M16 screwed-in collar allows secure fastening and flexible repositioning.
- Working height can be adjusted with prism extensions for added versatility.
Key Features:
- Polyamide design protects scratch-sensitive materials from damage.
- 135° angled geometry secures pipes and profiles up to 80mm.
- Lightweight build simplifies handling and repositioning.
- M16 collar thread allows adjustable positioning with extensions.
- Fully compatible with Siegmund System 28 clamps and boreholes.
Specifications:
- Item No.: 2-280648.1.PA
- System: Siegmund System 28 Metric Series
- Height: 20mm (0.79" Inches)
- Diameter: 50mm (1.97" Inches)
- Weight: 0.07 lbs. (0.03 kg.)
- Material: Polyamide
- Thread: M16 (for use with prism extensions, e.g., Item No. 280649)
Common Uses:

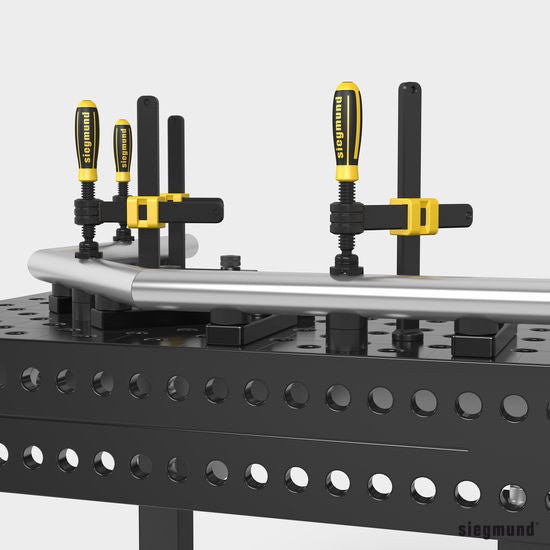

The 2-280648.1.PA Prism Ø50 135° is used for clamping and supporting pipes where scratch protection is essential. Its lightweight polyamide design makes it ideal for delicate or high-value materials, offering secure, stable positioning with full compatibility in Siegmund System 28 setups.
