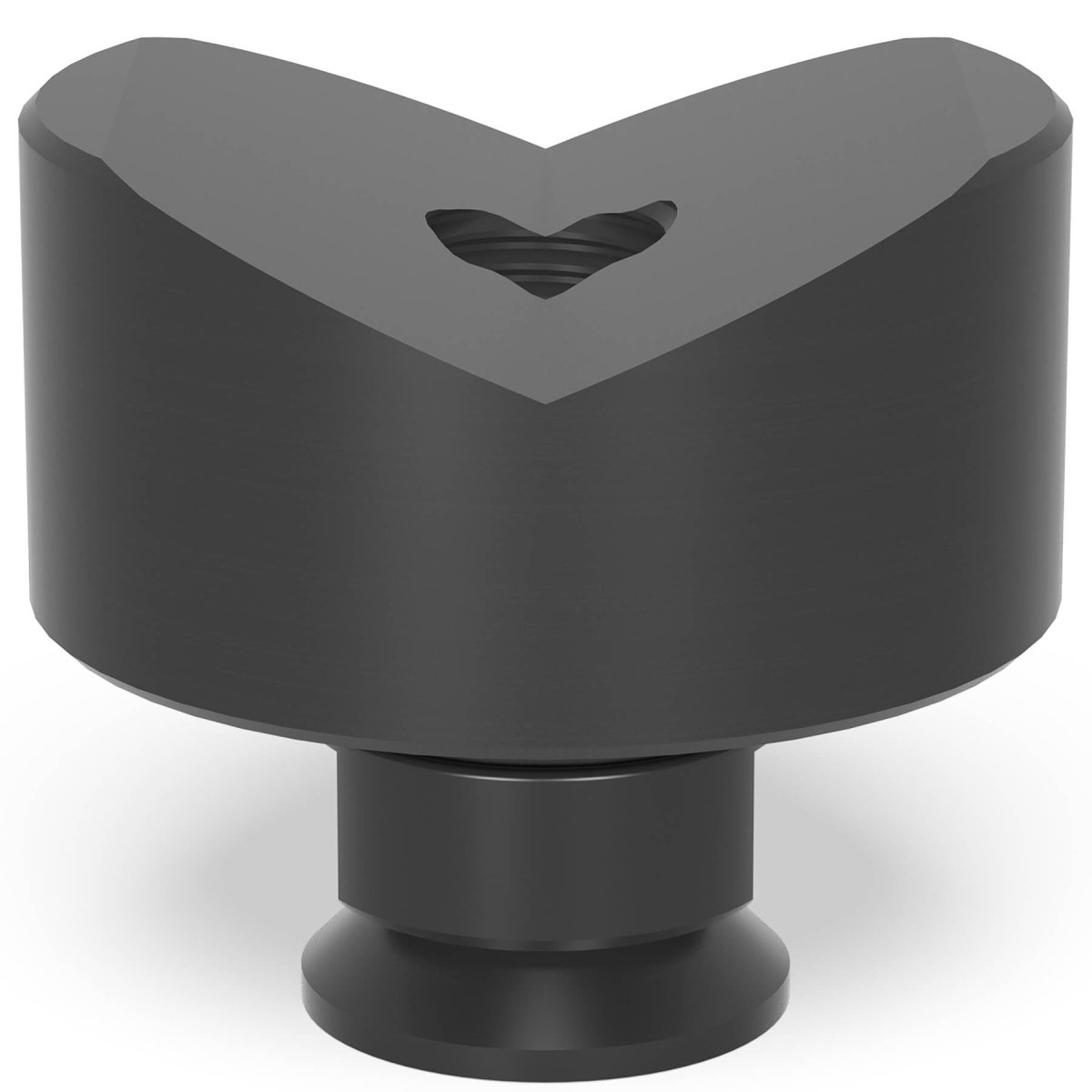

The 2-280651.1.PA Prism Ø60 135° with screwed-in collar delivers lightweight precision clamping for Siegmund System 28 setups. Its polyamide build makes it ideal for use on scratch-sensitive surfaces, while the 135° geometry ensures reliable positioning for pipes up to 80mm (3.15" Inches) in diameter.
- The polyamide construction protects delicate materials from damage.
- The 60mm (2.36" Inches) diameter base ensures stable support.
- Its 30mm (1.18" Inches) height provides accurate clamping alignment.
- Weighing only 0.18 lbs. (0.08 kg.), it allows quick adjustments and portability.
- M16 screwed-in collar provides secure fastening and flexible repositioning.
- Compatible with prism extensions for adjustable working height.
Key Features:
- Polyamide design protects scratch-prone materials.
- 135° geometry ensures stable clamping of pipes up to 80mm diameter.
- Lightweight build enhances portability and ease of setup.
- Fully compatible with Siegmund System 28 boreholes and M16 extensions.
Specifications:
- Item No.: 2-280651.1.PA
- System: Siegmund System 28 Metric Series
- Height: 30mm (1.18" Inches)
- Diameter: 60mm (2.36" Inches)
- Weight: 0.18 lbs. (0.08 kg.)
- Material: Polyamide
- Thread: M16 (compatible with prism extensions, e.g., Item No. 280649)
Common Uses:

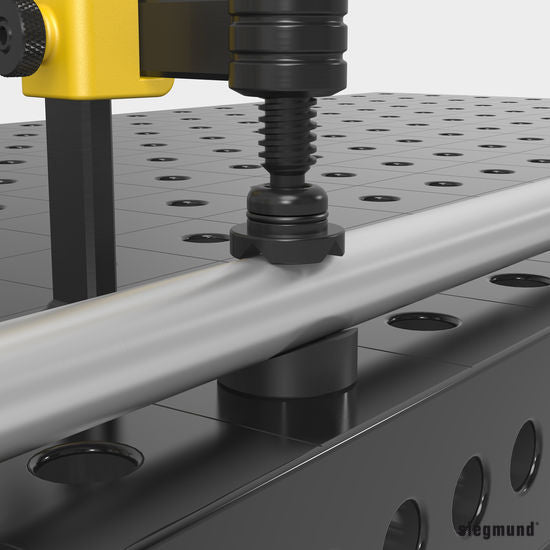

The 2-280651.1.PA Prism Ø60 135° is widely used for clamping pipes on scratch-sensitive surfaces such as polished metals or coated materials. Its polyamide body ensures surface protection, while the M16 screwed-in collar provides secure, adjustable positioning in Siegmund System 28 environments.
