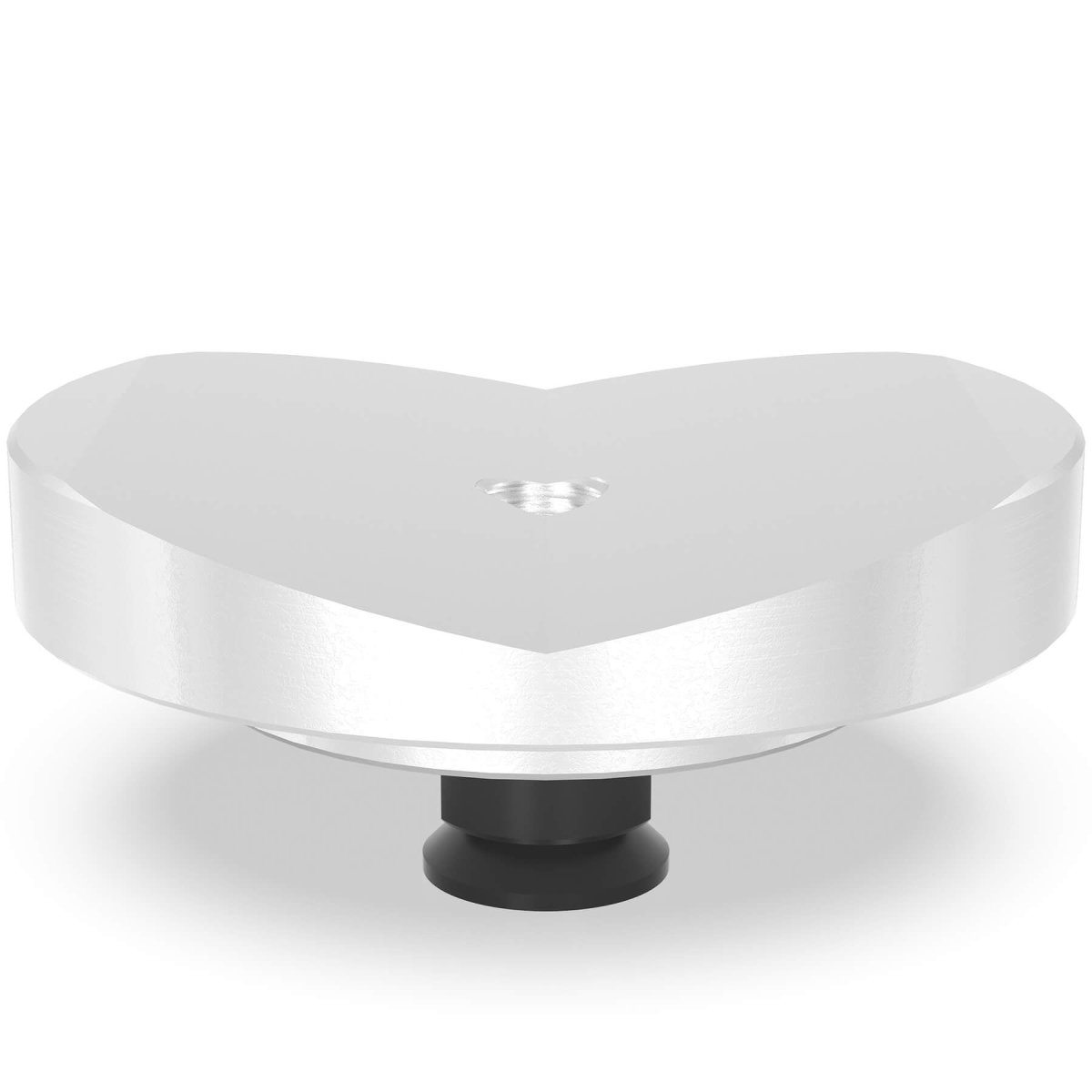

This aluminum prism delivers a reliable support surface for handling large round pipes during welding and fixturing. Its wide 157° angle ensures secure positioning of pipes up to 400mm (15.75" Inches) in diameter. The lightweight yet durable design reduces handling effort while maintaining precision alignment in demanding setups.
- It fastens easily with an M16 countersunk screw for a secure fit in Siegmund boreholes.
- The screwed-in collar allows fast removal and repositioning outside the hole grid.
- Its aluminum construction reduces weight while offering stable pipe support.
- The working height can be increased when paired with a prism extension.
- Compatible with Siegmund System 28 Metric Series tables and accessories.
Key Features:
- Provides stable support for large pipes up to 400mm (15.75" Inches).
- Lightweight aluminum construction for easier handling.
- Screwed-in collar allows flexible positioning and quick adjustment.
- Compatible with M16 extension accessories for added height.
- Integrates seamlessly with Siegmund System 28 Metric Series tables.
Specifications:
- System: Siegmund System 28 Metric Series
- Height: 30mm (1.18" Inches)
- Diameter: 120mm (4.72" Inches)
- Weight: 1.54 lbs. (0.7 kg.)
- Material: Aluminum
- Angle: 157°
- Thread: M16
Common Uses:

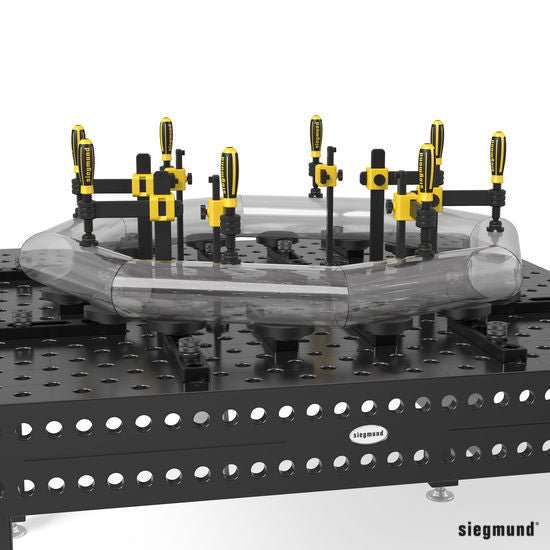

This prism delivers secure positioning of large round pipes during welding, tack-up, and fixturing operations. Its 157° angle ensures consistent surface contact, while the aluminum body keeps handling efficient. Fabricators use it for pipe fit-up, multi-position setups, and when lightweight but stable support is essential.
