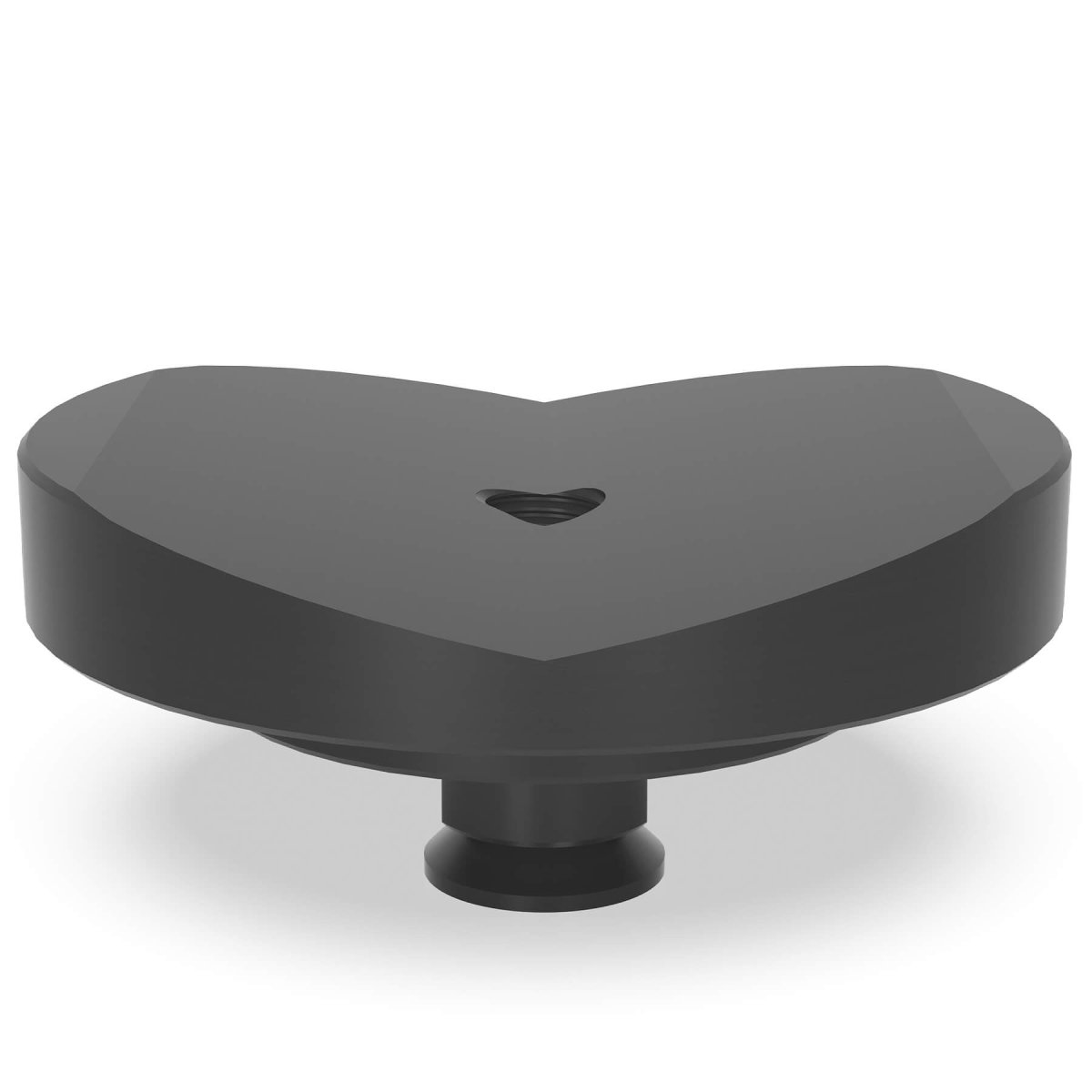

This polyamide prism provides a reliable and lightweight solution for supporting large round pipes during welding and fabrication. Its 157° angled surface ensures stable contact and accurate positioning for pipes up to 400mm (15.75" Inches) in diameter. The durable polymer material reduces surface marking on sensitive workpieces while keeping handling easy.

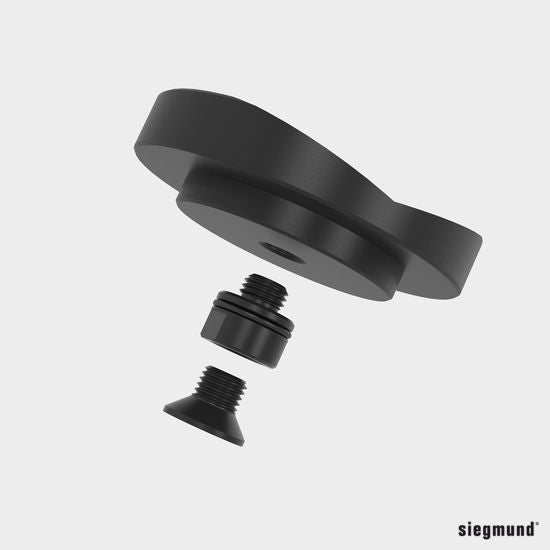

- It secures quickly in Siegmund boreholes with an M16 countersunk screw.
- The screwed-in collar allows flexible positioning inside or outside the hole grid.
- Polyamide construction minimizes damage risk to softer materials.
- The working height can be adjusted using Siegmund prism extensions.
- Fully compatible with Siegmund System 28 Metric Series tables and accessories.
Key Features:
- Supports large round pipes up to 400mm (15.75" Inches).
- Polyamide surface reduces risk of marking or damage.
- Lightweight design ensures easier setup and handling.
- Screwed-in collar provides flexible positioning and quick adjustment.
- Integrates seamlessly with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Height: 30mm (1.18" Inches)
- Diameter: 120mm (4.72" Inches)
- Weight: 0.66 lbs. (0.3 kg.)
- Material: Polyamide
- Angle: 157°
- Thread: M16
Common Uses:

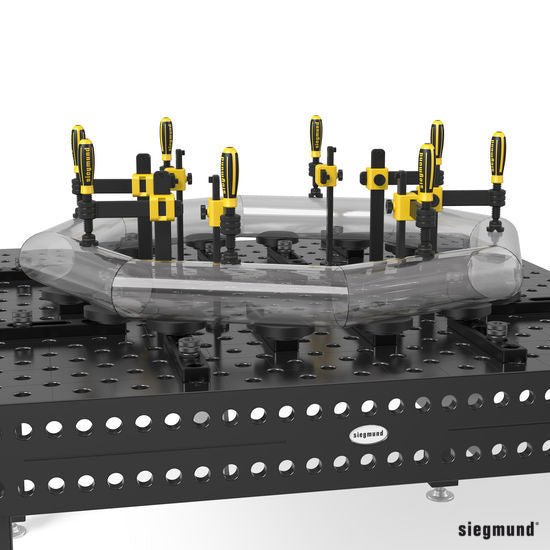

This prism offers precise and secure positioning of round pipes in welding and fixturing setups. Its polyamide body is favored when working with coated or softer materials where surface protection matters. Fabricators rely on it for pipe alignment, tack-up, and flexible positioning within System 28 tables without risking part damage.
