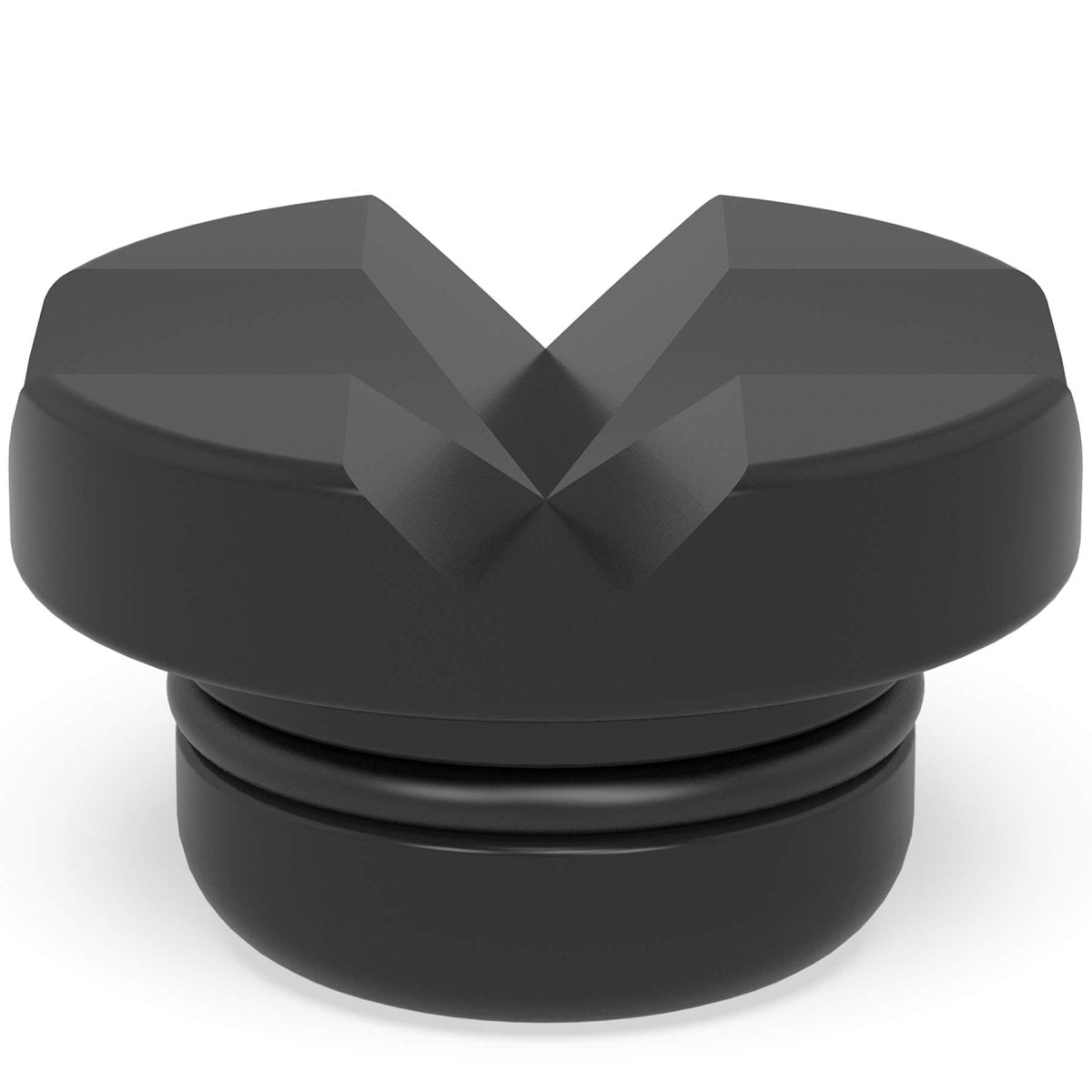

The 2-280657.1.N Prism for Screw Clamps provides reliable clamping support for both round and square tubing in Siegmund System 28 setups. With its nitrided finish, it ensures high wear resistance and long service life in demanding fabrication environments.
- The 40mm (1.57" Inches) diameter provides a secure clamping surface.
- Its 24mm (0.94" Inches) height allows precise, stable positioning.
- Weighing 0.22 lbs. (0.1 kg.), it balances strength and easy handling.
- Designed to fit on threaded arbor ball heads, it locks precisely on the workpiece.
- The nitrided surface prevents wear and maintains accuracy over time.
Key Features:
- Movable clamp prism for round and square tubing.
- Nitrided finish delivers long-lasting durability.
- Fits on threaded arbor ball heads for precise clamping.
- Fully compatible with Siegmund System 28 boreholes and clamps.
Specifications:
- Item No.: 2-280657.1.N
- System: Siegmund System 28 Metric Series
- Height: 24mm (0.94" Inches)
- Diameter: 40mm (1.57" Inches)
- Weight: 0.22 lbs. (0.1 kg.)
- Material: Nitrided Steel
Common Uses:

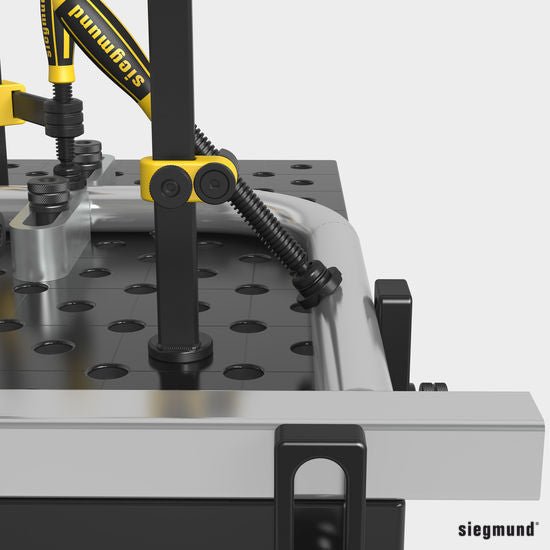

The 2-280657.1.N Prism for Screw Clamps is used to securely hold round or square pipes during welding or fixturing. Its ball-head mounting ensures flexible positioning and precise alignment, while the nitrided finish withstands repeated heavy use. This prism delivers stable, accurate clamping performance across System 28 setups.
