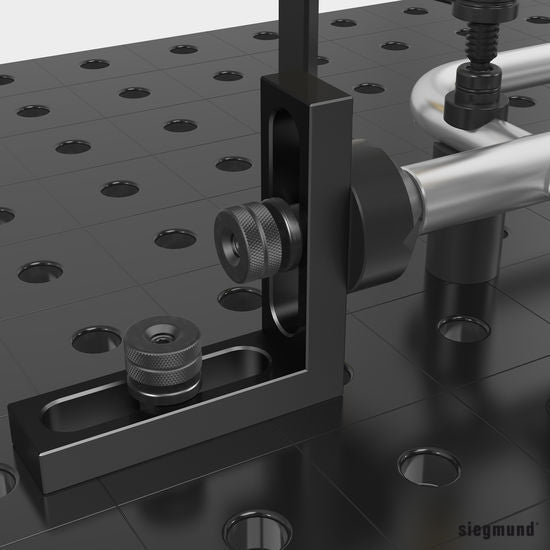

The Siegmund burnished clamping cone provides a secure and versatile solution for holding both round and square pipes during welding and fabrication. With a diameter of 80mm (3.15" Inches), it ensures reliable positioning of workpieces while reducing movement and setup errors. Its precision-ground burnished surface delivers durability and long service life under shop conditions.
- It enables quick and accurate clamping of pipes up to 80mm (3.15" Inches) in diameter.
- The cone shape centers workpieces for improved stability.
- Constructed from hardened steel with a burnished finish for wear resistance.
- Bolts fasten the cone securely to the Siegmund System 28 table grid.
- Engineered for consistent accuracy in high-volume fixturing setups.
Key Features:
- Centers and secures both round and square pipes.
- Durable burnished finish for long-lasting use.
- Fastens directly with bolts for stability.
- Compatible with Siegmund System 28 Metric Series tables.
- Supports accurate pipe positioning up to 80mm (3.15" Inches).
Specifications:
- System: Siegmund System 28 Metric Series
- Height: 70mm (2.76" Inches)
- Diameter: 80mm (3.15" Inches)
- Weight: 3.09 lbs. (1.4 kg.)
- Material: Burnished Steel
Common Uses:

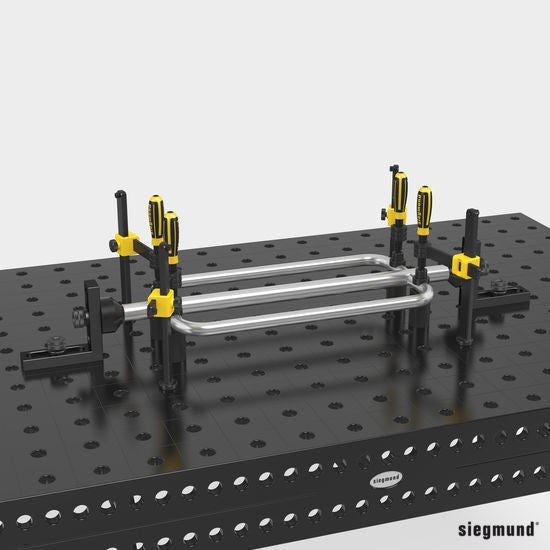

This clamping cone provides reliable welds for both round and square pipes during fabrication. By centering the workpiece, it improves accuracy and reduces slip, ensuring consistent welds. Fabricators use it for pipe fit-up, tack welding, and alignment tasks that demand repeatable positioning on Siegmund System 28 tables.
