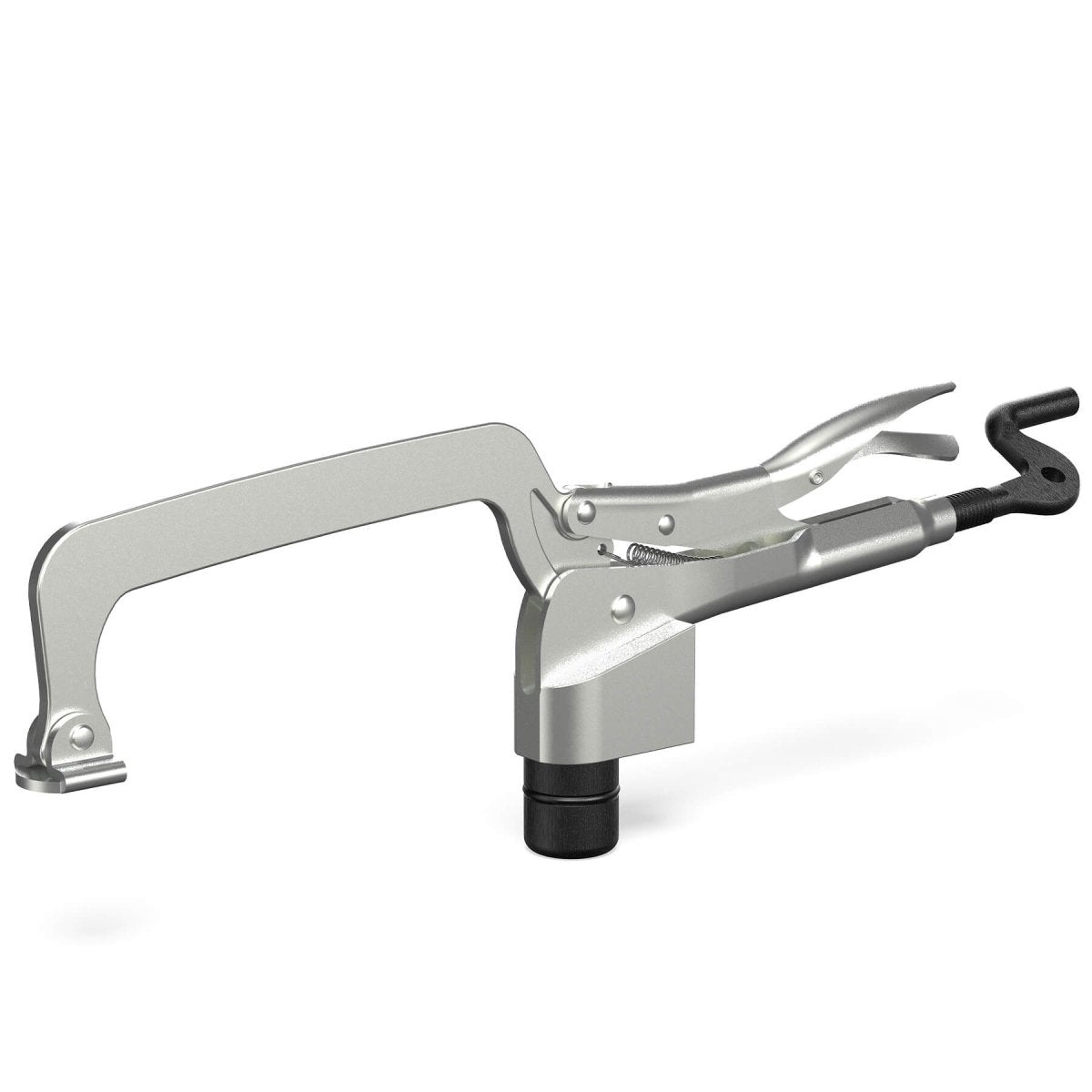

The Siegmund Quick-Change Clamp 160 offers lightweight handling and fast, precise clamping for System 28 setups. With an extended 160mm clamping arm, it provides additional reach compared to the Quick-Change Clamp 100 while maintaining strength and ease of use.
- Provides 160mm (6.30" Inches) clamping arm length.
- Clamping range adjustable from 0–140mm (0–5.51" Inches) using screw adjustment.
- Ultra-lightweight at 2.42 lbs. (1.1 kg.) for quick handling and reduced operator fatigue.
- Dimensions: 360mm (14.17" Inches) length, 30mm (1.18" Inches) width, 150mm (5.91" Inches) height.
- Mounts directly into Siegmund System 28 Metric Series boreholes.
Key Features:
- New construction reduces weight while maintaining strength.
- Extended 160mm arm increases clamping reach for larger parts.
- Quick-change mechanism saves setup time.
- Adjustable clamping range ensures versatility in shop applications.
Specifications:
- Item No.: 2-280707
- System: Siegmund System 28 Metric Series
- Clamping Arm Length: 160mm (6.30" Inches)
- Clamping Range: 0–140mm (0–5.51" Inches)
- Length: 360mm (14.17" Inches)
- Width: 30mm (1.18" Inches)
- Height: 150mm (5.91" Inches)
- Weight: 2.42 lbs. (1.1 kg.)
Common Uses:
The Quick-Change Clamp 160 Aluminum is designed for fabricators who need both lightweight handling and extended reach. It excels in System 28 setups that require frequent adjustments, making it especially useful in fast-paced welding environments where speed and operator efficiency are essential.
