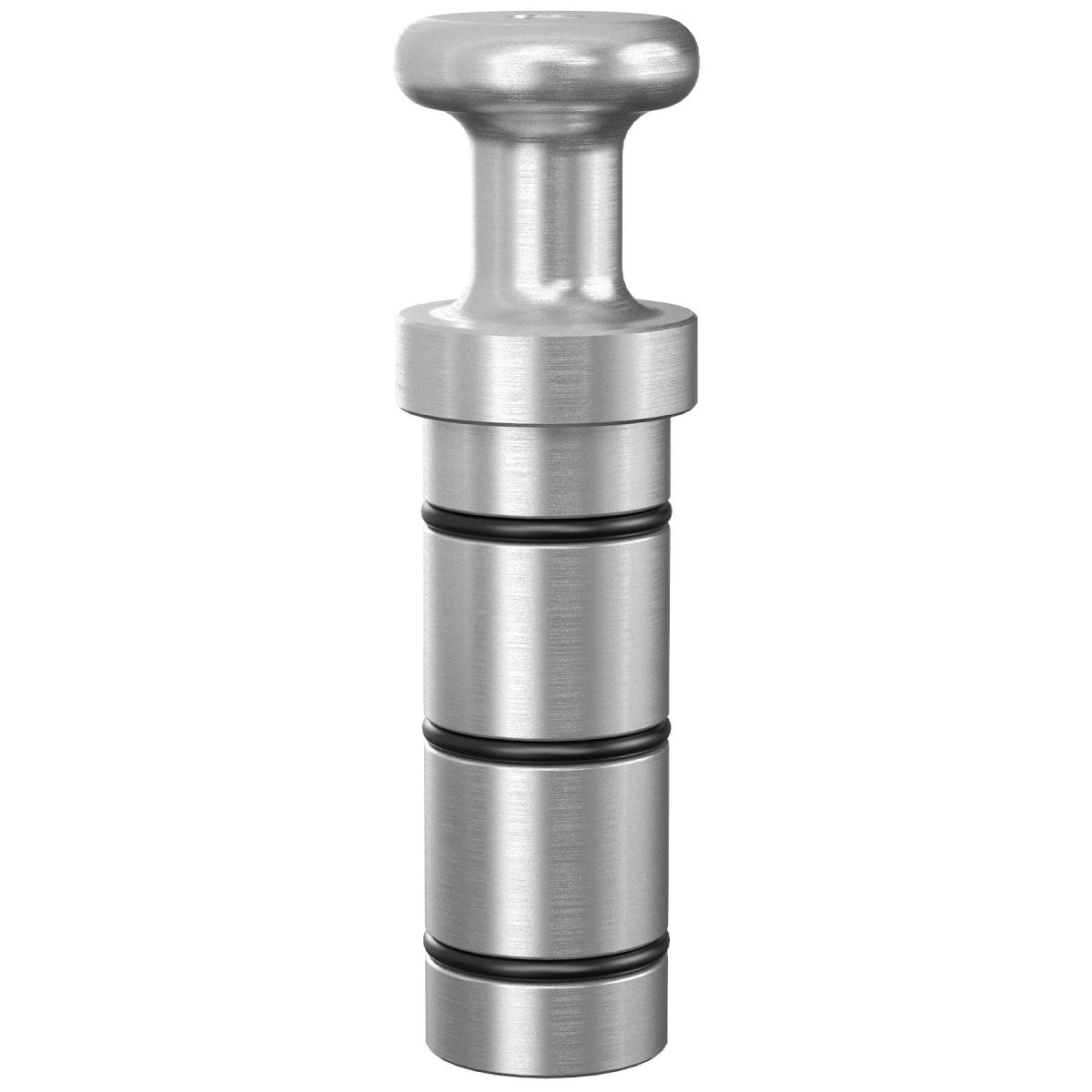

The Magnetic Clamping Bolt 118mm Aluminum provides fast and secure clamping without the need for bolts or tools. Its lightweight aluminum construction is designed to protect delicate and pressure-sensitive components, while the magnetic hold ensures reliable positioning without counter holding.
With its extended 118mm (4.65" Inches) length and 75mm (2.95" Inches) shaft, this bolt is built for setups requiring extra reach. It is especially effective for use with sheet metal housings and closed structures where conventional counter holding is not possible.
Key Features:
- Provides rapid, tool-free clamping.
- Lightweight aluminum construction reduces handling effort.
- Magnetic hold secures delicate components safely.
- Extended reach design for versatile applications.
- Suitable for pressure-sensitive or enclosed components.
Specifications:
- Item No.: 2-280740.2
- System: Siegmund System 28 Metric Series
- Length: 118mm (4.65" Inches)
- Shaft Length: 75mm (2.95" Inches)
- Weight: 0.35 lbs. (0.16 kg.)
- Max. Holding Force: 0.18 kN (40.5 lbf.)
- Material: Aluminum
Common Uses:

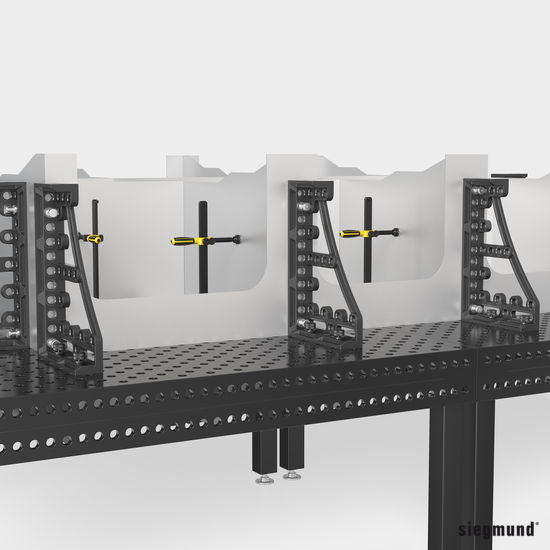

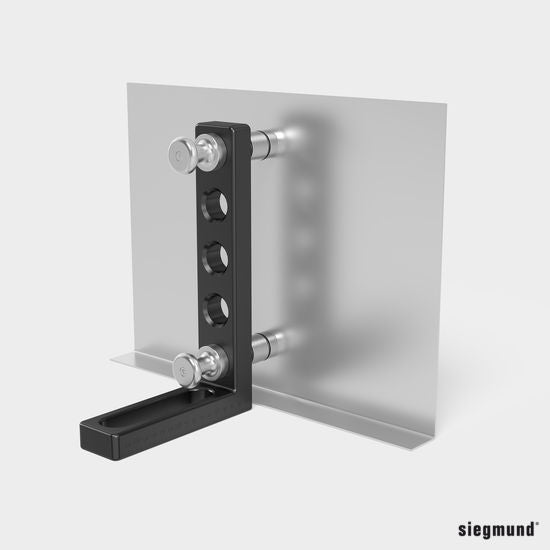

This bolt is commonly used for sheet metal housings, thin sheet components, and other lightweight setups where counter holding is not possible. Fabricators benefit from its tool-free magnetic clamping, which reduces setup time while ensuring sensitive parts are securely held.
