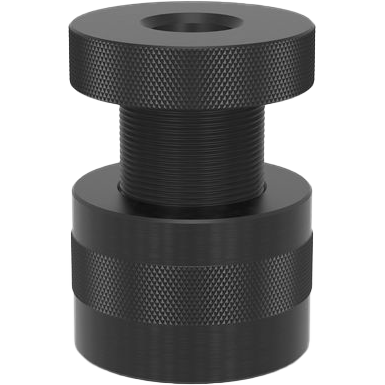

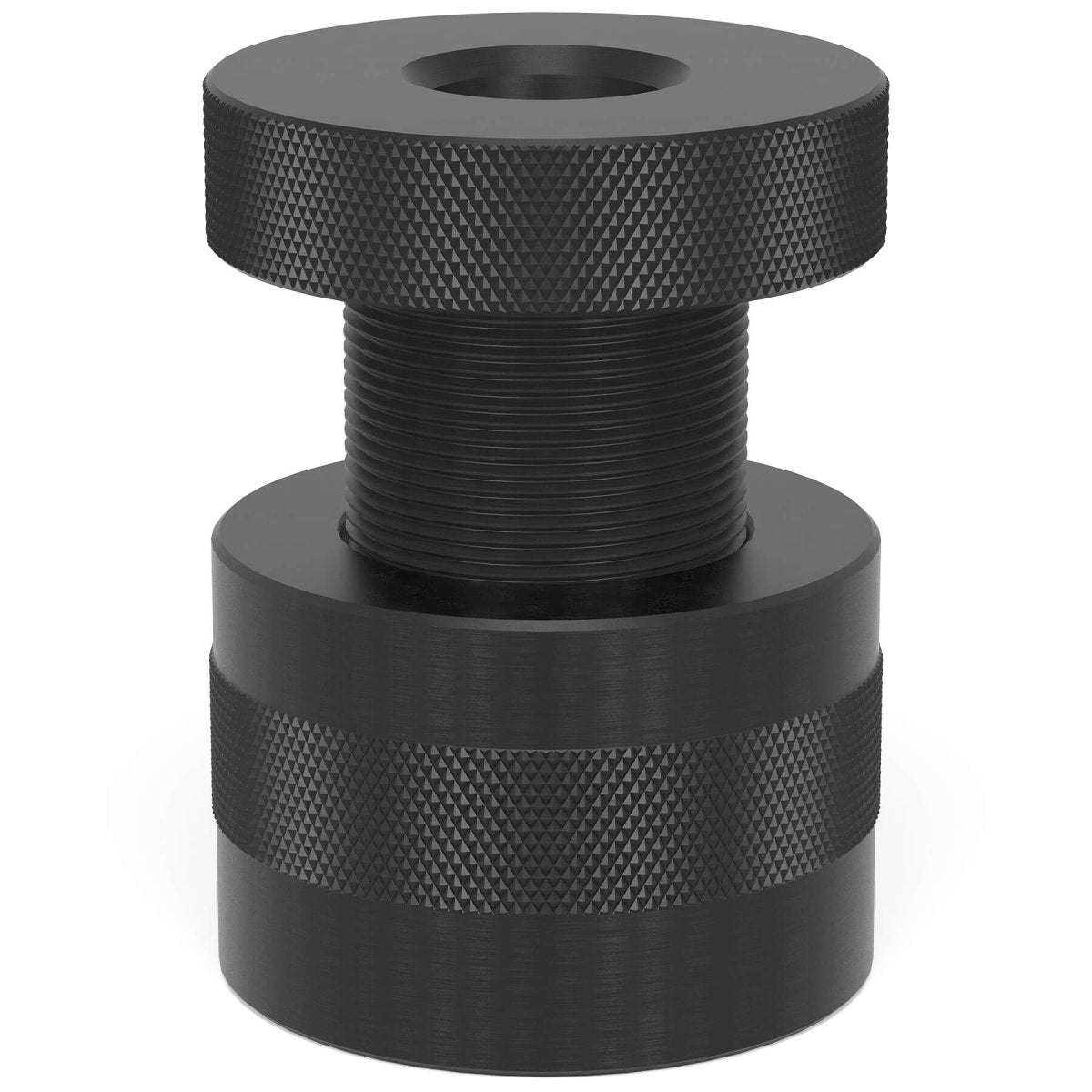

The Siegmund screw support provides precise, adjustable height control for fixturing applications that demand accuracy and stability. With a range of 75–110mm (2.95–4.33" Inches), it allows fine vernier-style adjustments to achieve exact workpiece positioning. The burnished finish ensures long-term durability and resistance to wear in heavy-duty welding environments.
- It provides stepless height adjustment between 75mm and 110mm.
- Burnished surface increases hardness and wear resistance.
- Compatible with Siegmund prism extensions and support sets for added range.
- Heavy-duty steel construction provides stable and vibration-free support.
- Engineered for integration with Siegmund System 28 Metric Series tables.
Key Features:
- Offers precision height adjustment for accurate fixturing.
- Durable burnished finish for extended service life.
- Supports both direct use and extension setups.
- Provides stable positioning in heavy fabrication tasks.
- Compatible with Siegmund System 28 Metric Series accessories.
Specifications:
- System: Siegmund System 28 Metric Series
- Height Range: 75–110mm (2.95–4.33" Inches)
- Diameter: 80mm (3.15" Inches)
- Weight: 5.07 lbs. (2.3 kg.)
- Material: Burnished Steel
Common Uses:

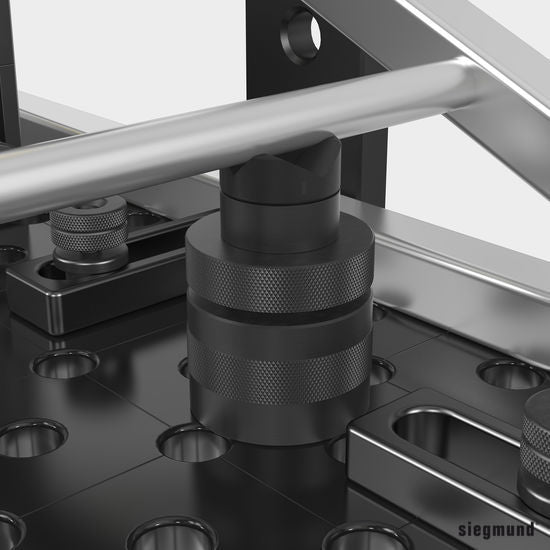

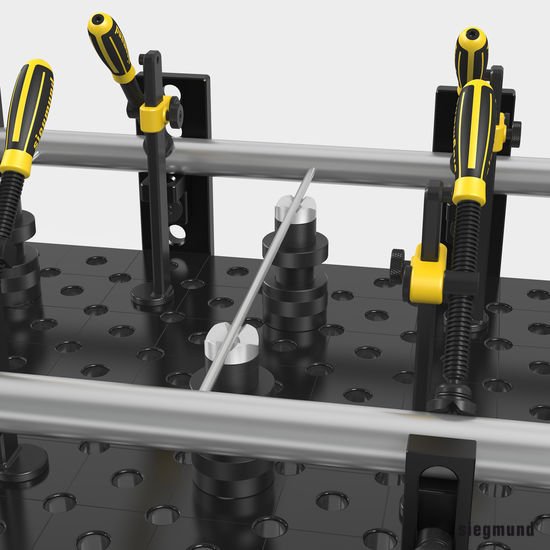

This screw support delivers controlled height adjustment for precise part positioning in welding and fabrication. It ensures stability when aligning workpieces at varying heights and integrates seamlessly with System 28 tables, prism extensions, and support sets. Fabricators rely on it for repeatable setups where precision and durability are essential.
