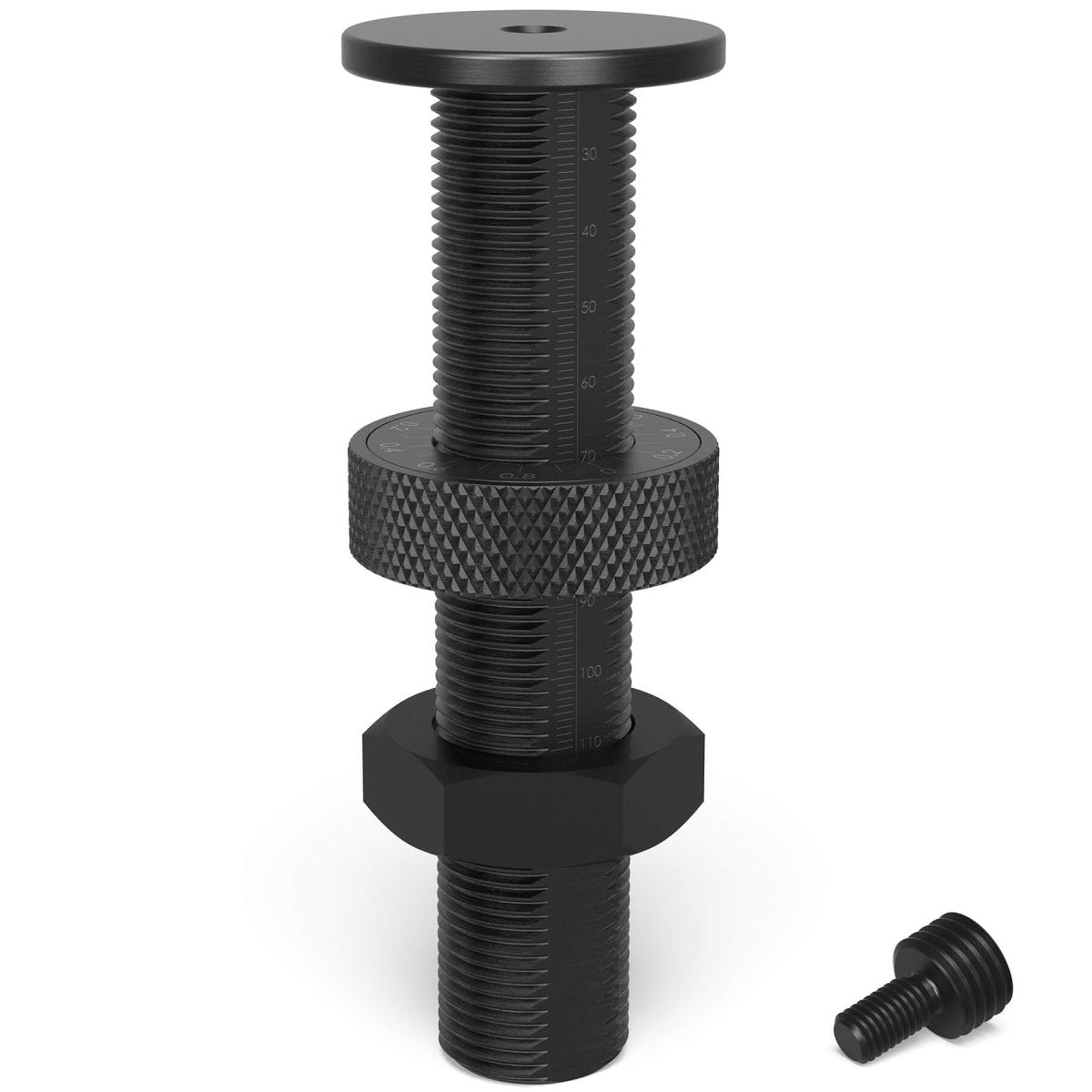

The Siegmund height adjustable support with scale provides precise, stable positioning for fixturing and accessory mounting. Its integrated scale and locknut system allow fine, repeatable adjustments with 1mm accuracy across a 20–105mm (0.79–4.13" Inches) range. Built from burnished steel, it offers durability and strength for demanding fabrication environments.
- It delivers accurate, stepless height adjustment from 20–105mm.
- Locknut and ring ensure secure and repeatable settings.
- Burnished steel construction offers hardness and long service life.
- Can be positioned in all Siegmund System 28 boreholes.

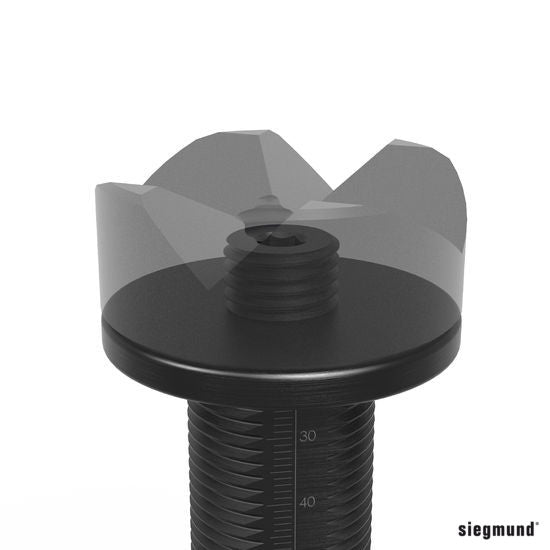

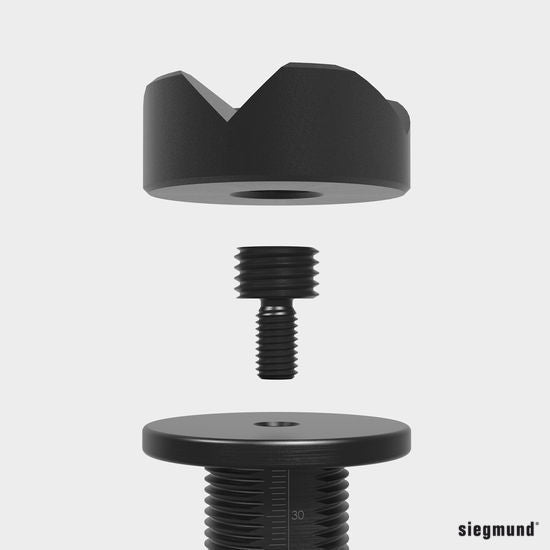

- Includes set screw for connecting with Siegmund prisms.
Key Features:
- Provides accurate height adjustment with 1mm precision.
- Durable burnished finish resists wear under heavy use.
- Locknut system ensures stability and repeatability.
- Mounts securely in all System 28 boreholes.
- Includes connecting screw for compatibility with prisms.
Specifications:
- System: Siegmund System 28 Metric Series
- Height Range: 20–105mm (0.79–4.13" Inches)
- Total Height: 144mm (5.67" Inches)
- Diameter: 50mm (1.97" Inches)
- Weight: 1.92 lbs. (0.87 kg.)
- Material: Burnished Steel
Common Uses:

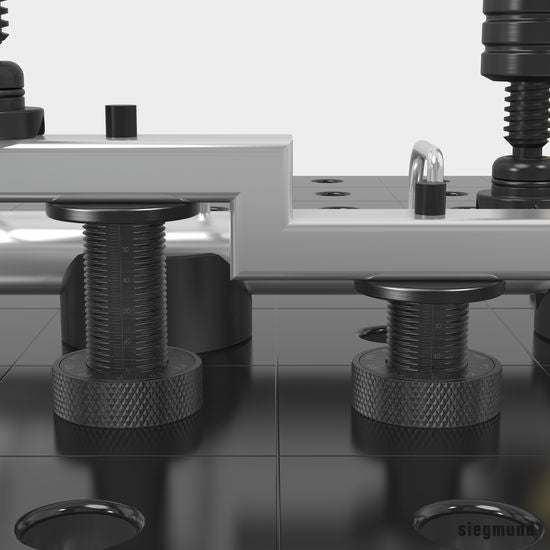

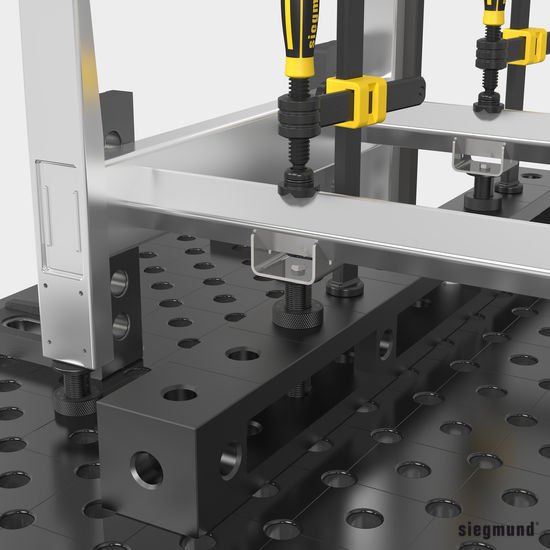

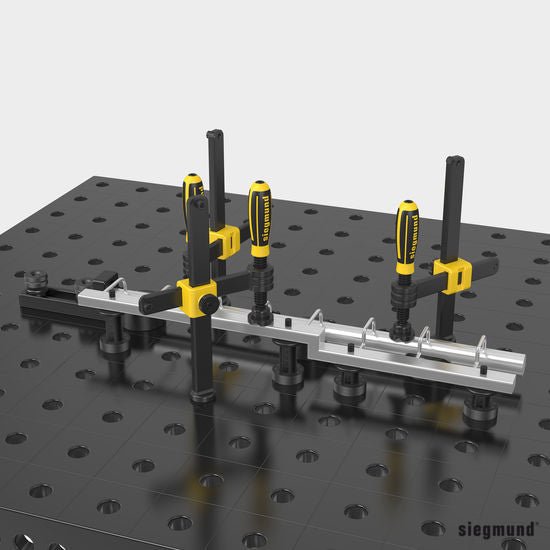

This adjustable support ensures precise workpiece positioning in welding and fabrication setups. Fabricators use it to fine-tune fixture heights, align accessories, and achieve consistent setups across production runs. Its burnished construction and scale accuracy make it a reliable component for precision fixturing on Siegmund System 28 tables.
