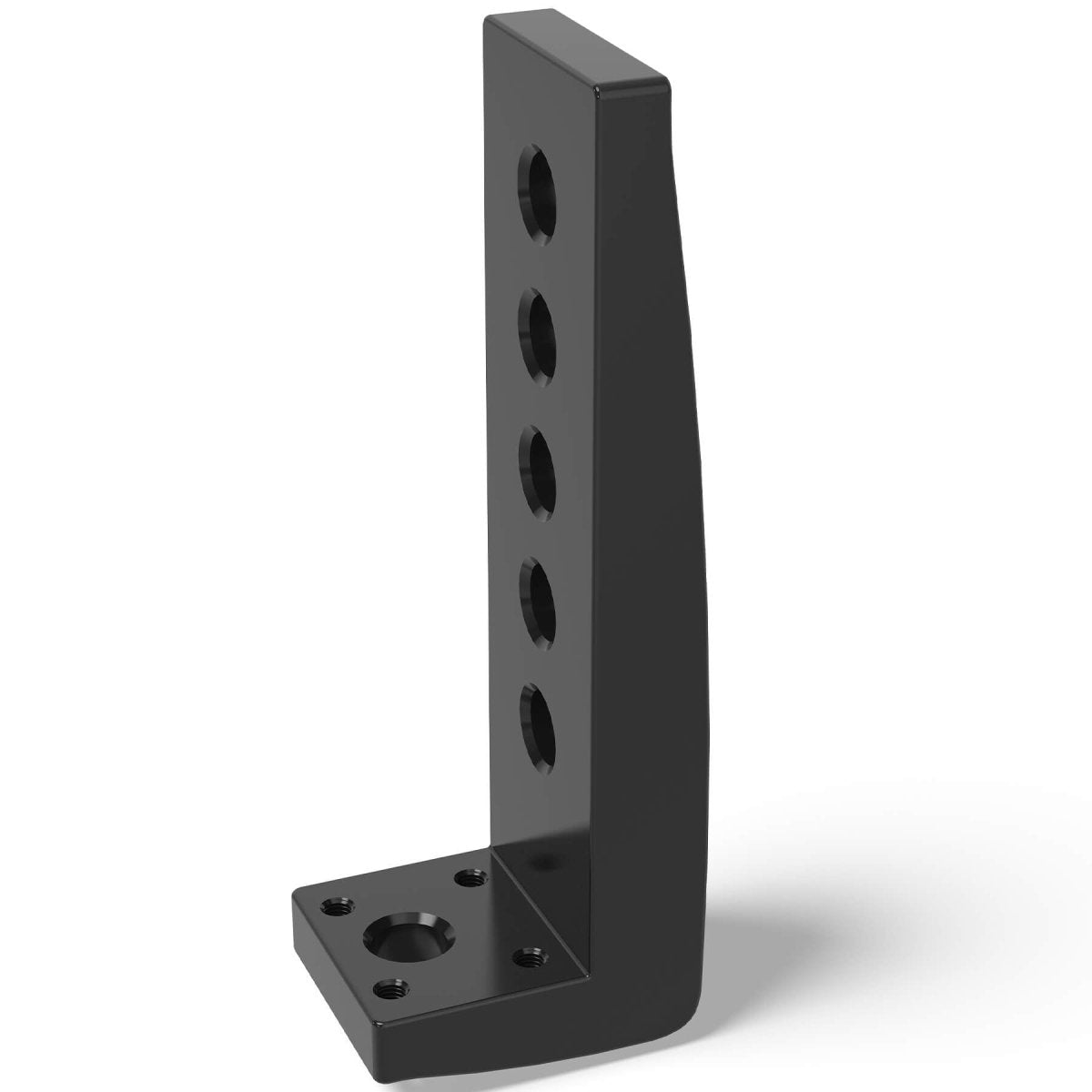

2-284051: External Stop Bracket For Perforated Plates (Nitrided)

2-284051: External Stop Bracket For Perforated Plates (Nitrided)

  • Product SKU: 2-284051
Availability: In Stock
$172
Successful pre-order.Thanks for contacting us!

Similar to a table stop, The Siegmund External Stop Bracket For Perforated Plates (Nitrided) when used on table sides, requires only one borehole and enables use of the full area of the table top.

Specs and Features:
- Item No. 2-284051
- Nitrided
incl. 4 set screws for fine adjustment
for perforated plates material thickness 25 mm
‐ for fixing: 1x 280528
‐ attachment to round perforated plates not possible
- Length: 360mm (14.17'')
- Width: 99mm (3.90'')
- Height: 126mm (4.96'')
- Length: 300mm (11.81'')
- Weight: 17.86 Ibs. (8.1kg)
