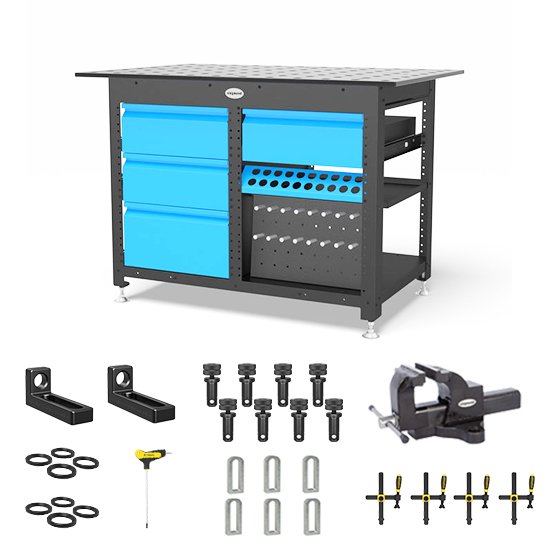

2-287343: Siegmund System 28 Workstation with "Set B" Including 1200x800 mm Perforated Plate

Manufacturer: Siegmund
Part No. (SKU): 2-287343
Current Availability in the USA: 2 In Stock
Series: 28mm Welding Table Accessories
$3,307
$4,671
$3,307
Subtotal: $3,307

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

Item No. 2-284005

The System 28 Welding Workstation is the Ideal Choice for Fine detail Applications.

All System 28 Workstations Feature the Latest Upgrades in Aesthetics, Versatility, and Durability.

Our Double Hardened Tables are Constructed from Through Hardened Steel before Undergoing a Plasma Nitride Treatment to Provide you with a Table of Superior Quality and Performance.

The Siegmund System 28 Workstation

Thanks to the Intelligent Concept of the Siegmund Workstation, all of your Tools are Always within Reach at your Workplace.

The Siegmund Workstation is the Perfect Welding Platform, with More than Enough Space for All of your Accessories.

The Siegmund Welding Workstation is an International Design Excellence Awards (IDEA) Finalist Product. The Siegmund Workstation was designed to be a very flexible system. It functions as a welding table, a workbench or a mobile workshop trolley with optional wheels.

PERFORATED 1200X800 mm PLATE

  • Through-Hardened X8.7 Tool Steel + Plasma Nitrided and BAR-Coated
  • 28mm Diameter Boreholes on Surface
  • 15 mm Approximate Material Thickness

WORKSTATION LEGS

  • The Combined Leg and Caster, gives the Siegmund Workstation Mobility.
  • Casters are Included with this Workstation as a Standard.
  • Base Plates have a "Fine Tune Adjustment" to Enable a more Precise Working Surface.

DIRT PROTECTION

  • Two Cover Slides are Below the Table to Protect your Tools from Weld Spatter and Dirt.
  • For Cleaning, you can Pull out both Covers like Drawers.

THE WEIGHT BEARING LOAD

  • The Siegmund Workstation with Base Plate is able to Bear a Total Weight of Approximately 2,200 lbs.
  • Please Note that when you are using the Caster Wheels, the Overall Weight Load Capacity is Reduced to Approximately 880 lbs.

MAXIMUM STORAGE

  • The Siegmund Workstation Features Defined Storage for Tooling and Accessories that can be Shelved for Easy Reach.
  • You can customize, Build or Retrofit your Workstation with Drawers at Various Height to Increase your Storage Capability.

Items Included in Bundle #2-287343

for the Siegmund System 28 Welding Workstation (25 Piece Bundle)

Get started right with your new workstation, welding work bench, or easily extend the capabilities of your current setup by purchasing a Set of Tooling dedicated to 28mm Bore Holed Siegmund Series Tables.

Items Included in Bundle #2-287343

for the Siegmund System 28 Welding Workstation (25 Piece Bundle)

Get started right with your new workstation, welding work bench, or easily extend the capabilities of your current setup by purchasing a Set of Tooling dedicated to 28mm Bore Holed Siegmund Series Tables.

Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

Total Weight of Set: 245 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63") Bore Holed Siegmund Welding Tables.

2-284005
Quantity: 1
1200x800 mm System 28 Siegmund Workstation

2-280610.N
Quantity: 4
Screw Clamp

2-280511
Quantity: 8
Short Fast Clamping Bolt (Burnished)

2-280412
Quantity: 6
25x156mm L
Universal Stop
(Nitrided)

2-280852.1
Quantity: 1
Hex Wrench

2-004303
Quantity: 1
Bench Vice

2-280109.N
Quantity: 2
175mm SL Stop and Clamping Square

2-800653.N
Quantity: 2
Pack Of 4 Spacer Rings for Premium Light (Nitrided)

Specs and Features

of the System 28 Workstation with "Set B"

Item No. 2-287343

Specs & Features

of the System 28 Workstation with "Set B"

Item No. 2-287343

Welding Table Specs and Features:

  • Overall Tabletop Size: 1200x800 mm
  • Borehole Diameter: Ø 28mm
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 15 mm
  • Welding Table Material Type and Finish: Through Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Official Siegmund Welding Table Part No.: 2-284005
  • Maximum Weight Load Not Using Casters: 2,200 lbs. (Based on Even Distribution)
  • Maximum Weight Load Using Casters: 880 lbs. (Based on Even Distribution)
  • Approximate Workstation Weight: 500 lbs.
