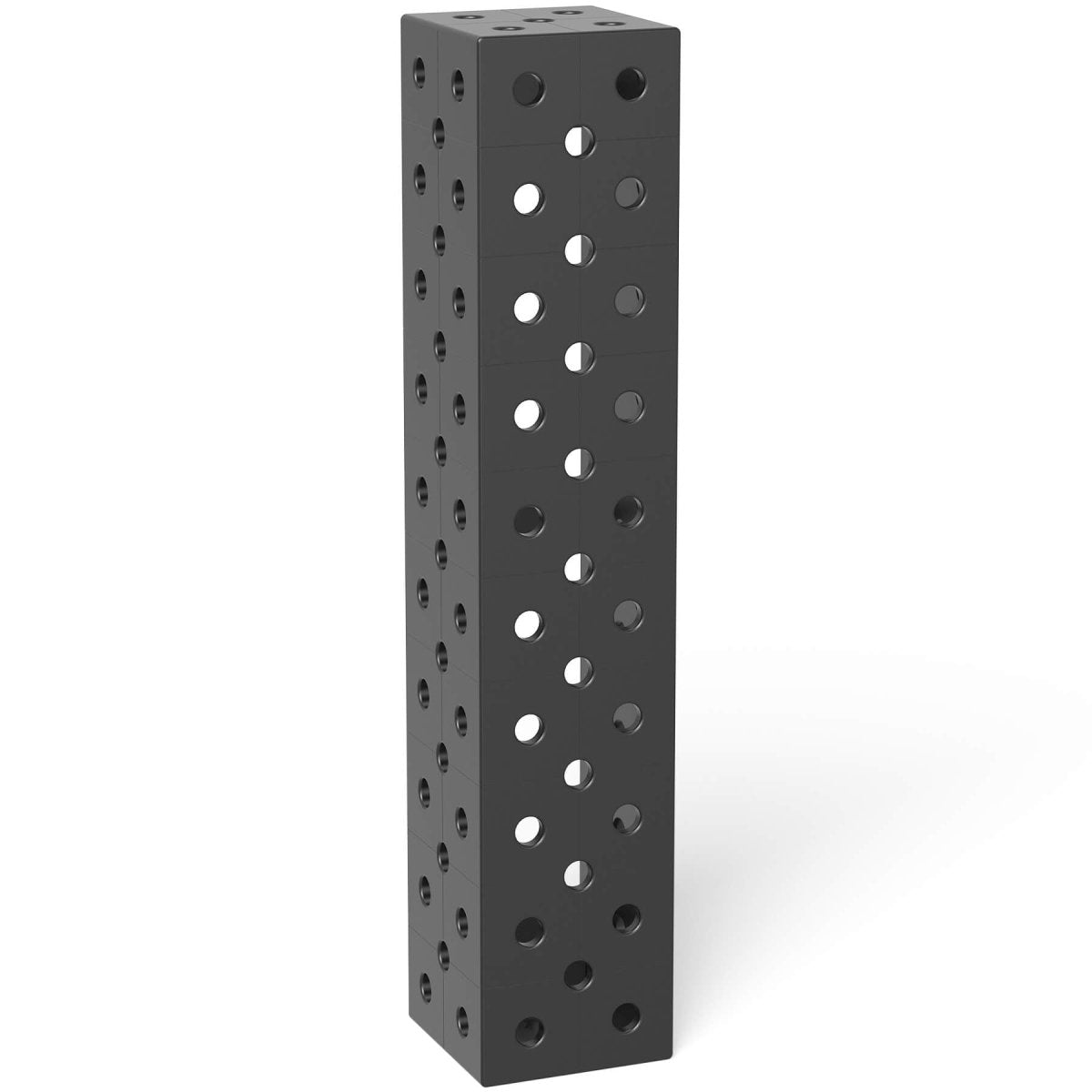

The Siegmund Square U-Shape 1,000x200x200mm Premium Light offers long-length stability in a lighter format, allowing fabricators to extend table setups without excessive weight. It provides strong support for vertical builds and bridging, while reducing strain during handling.
- Constructed from Siegmund Premium Light material, up to 40% lighter than standard tool steel.
- Provides reliable extensions for welding tables up to 1,000mm (39.37" Inches) long.
- Delivers versatile fixturing with five-sided boreholes and optional diagonal hole layouts.
- Marked with 100mm (3.94" Inches) grid lines for quick and repeatable positioning.
- Built from through-hardened Siegmund X8.7 tool steel alloy with a plasma nitrided finish.
- Weighs 167.55 lbs. (76 kg.) for strength with reduced handling weight.
Key Features:
- Extended 1,000mm length increases setup capacity and reach.
- Premium Light design reduces total weight by 40% while maintaining rigidity.
- Plasma nitrided finish resists wear, corrosion, and surface damage.
- Grid alignment markings simplify precision orientation.
- Engineered for Siegmund System 28 Metric Series integration.
Specifications:
- Item No.: 2-800370.P
- Series: Siegmund System 28 Metric Series
- Length: 1,000mm (39.37" Inches)
- Width: 200mm (7.87" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 15mm (0.59" Inches)
- Weight: 167.55 lbs. (76 kg.)
- Material: Through-hardened tool steel, alloy Siegmund X8.7, plasma nitrided finish
Common Uses:
This U-shape riser block extends welding tables for large-scale assemblies, vertical positioning, or securely bridging multiple tables. Its long 1,000mm length and lighter Premium Light construction combine to deliver reliable load-bearing strength without excess weight, making it ideal for shops that demand both flexibility and stability in fixturing. For clamping with 280511 bolts, Spacer Ring 800653.1.N is required.
