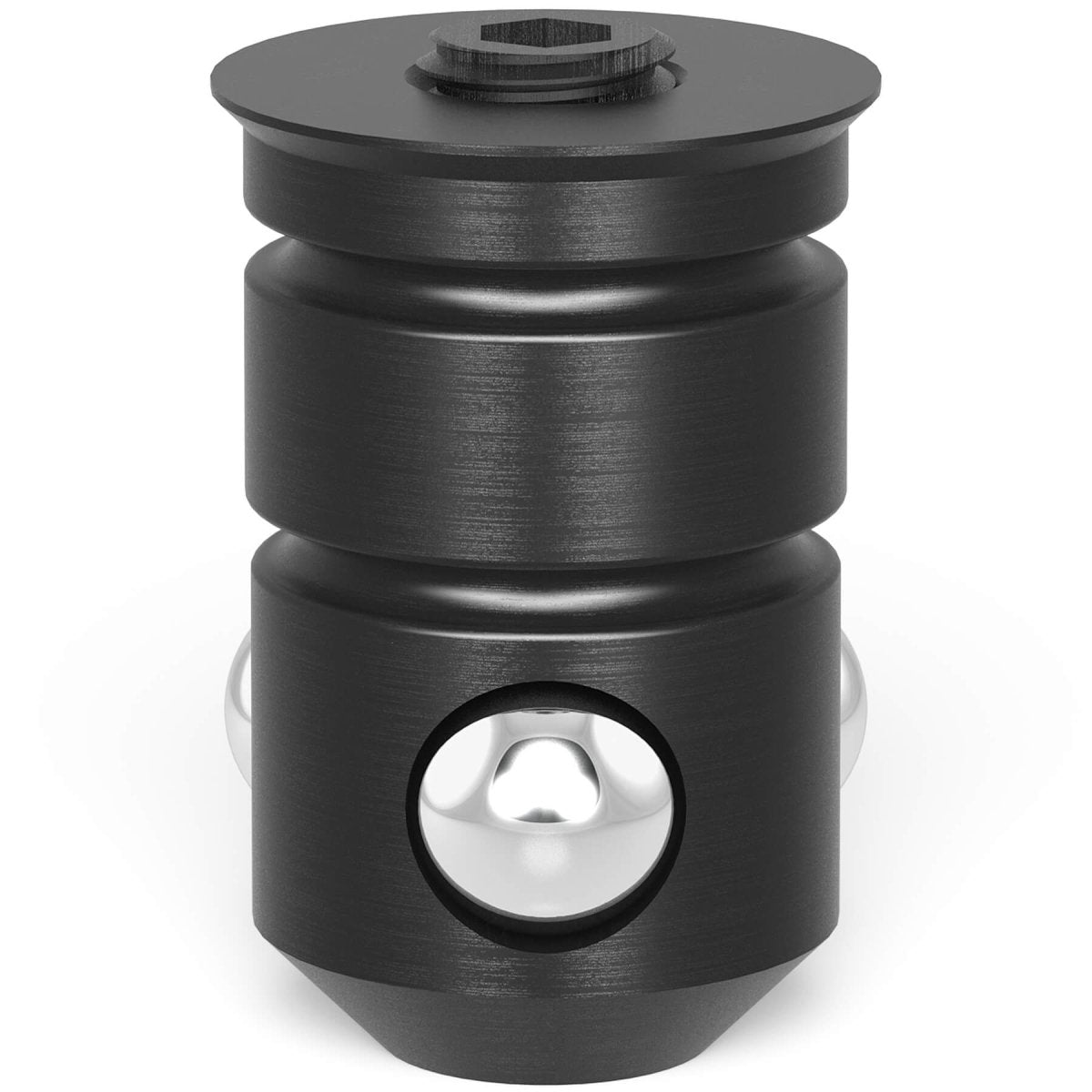

The Flush Mount Bolt Premium Light burnished provides a hidden, flush fastening solution for Siegmund System 28 Premium Light setups. With its compact length and four-ball connection system, this bolt ensures a secure hold while keeping the clamped component surface completely smooth and unobstructed.
- The 46mm (1.81" Inches) length is designed for Premium Light tables with 15mm thickness.
- Burnished finish enhances durability and resistance to wear.
- Flush mount design ensures the bolt head sits hidden in the borehole.
- Withstands high shear forces for secure fixturing.
- Hexagon socket (Size 6) allows easy tightening and consistent clamping.
- Supports clamping of two components with reliable alignment.
Key Features:
- Flush mounting eliminates surface obstructions.
- Burnished surface provides extended service life.
- Handles 220 kN (49,458.8 lbf.) shearing force.
- Delivers 10 kN (2,248.1 lbf.) tensile force for Premium Light setups.
- Optimized for Siegmund System 28 Premium Light components.
Specifications:
- Item No.: 2-800528
- System: Siegmund System 28 Premium Light Series
- Length: 46mm (1.81" Inches)
- Diameter: 31mm (1.22" Inches)
- Weight: 0.44 lbs. (0.20 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tensile Force Steel: 10 kN (2,248.1 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Connection Type: Hexagon Socket (Size 6), Flush Top with Four-Ball Locking
Common Uses:
This bolt delivers secure, flush fastening for two components in Siegmund System 28 Premium Light setups. Its hidden design eliminates interference with clamping surfaces, ensuring smooth, precise alignment in lightweight welding and fixturing applications. It is ideal for fabricators who require reliable and clean fastening without surface obstruction.
