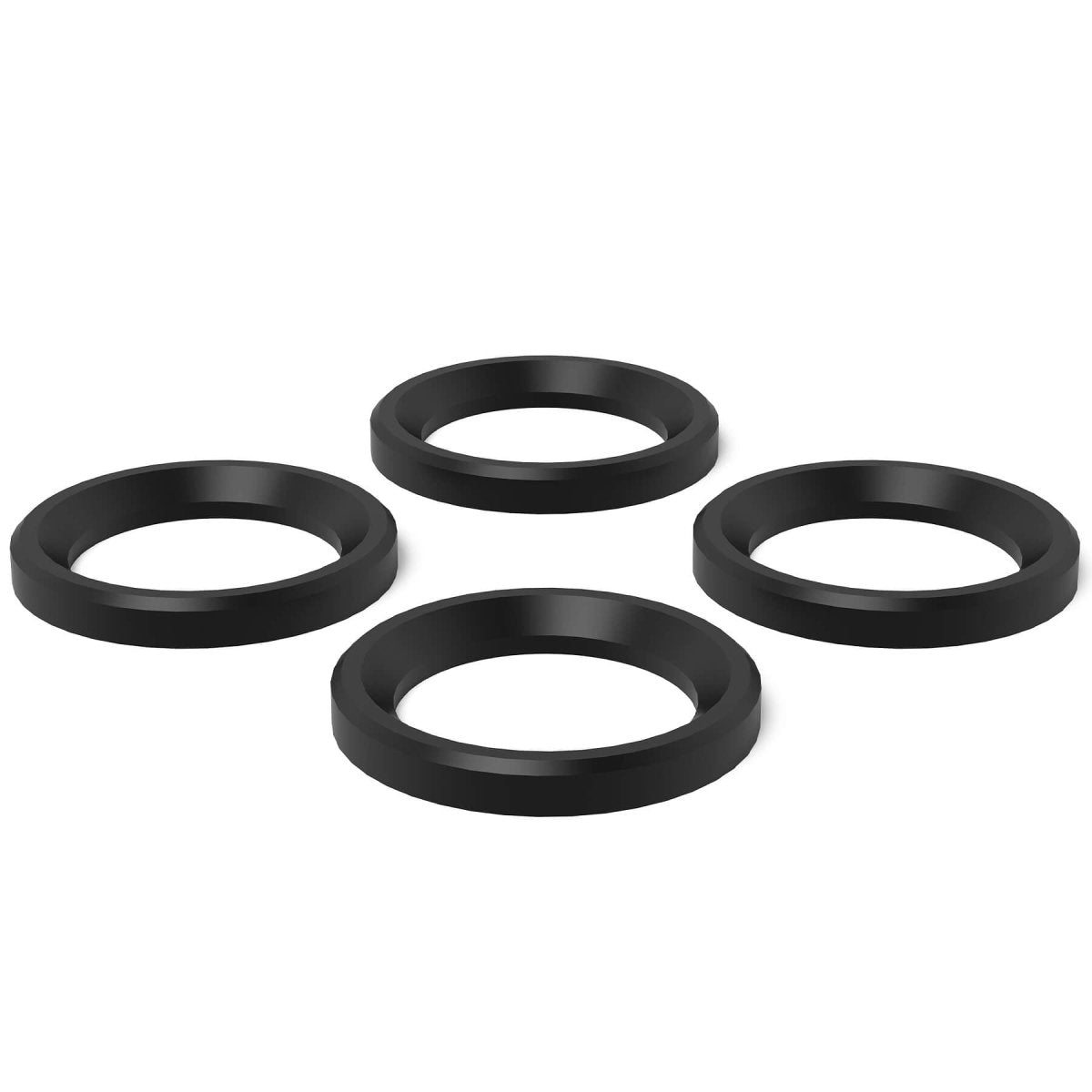

2-800653.1.N: 4 Pack Of Spacer Rings for Premium Light (Nitrided)

Manufacturer: Siegmund
Part No. (SKU): 2-800653.1.N
Current Availability in the USA: Out Of Stock
Series: 28mm Welding Table Accessories
$13
$20
$13
Subtotal: $13
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

2-800653.1.N: 4 Pack Of Spacer Rings for Premium Light (Nitrided)

Manufacturer: Siegmund

2-800653.1.N: 4 Pack Of Spacer Rings for Premium Light (Nitrided)

$20 $13

Manufacturer: Siegmund

2-800653.1.N: 4 Pack Of Spacer Rings for Premium Light (Nitrided)

$20 $13

Specs and Features:
- Item No. 2-800653.1.N
- Nitrided
‐ Distance Between Two Clamping Elements
‐ Is Required For Clamping To Material Thickness 15 mm With Bolt 280510/280511
‐ Can Be Used On Top And Bottom Of The Bolt
‐ Scope Of Delivery: 4 Pieces
- Material Thickness: 10mm (0.39'')
- Diameter: 40mm (1.57'')
- Weight: 0.09 Ibs. (0.04kg)

1. Define the Height of the Square

  • Cut the aluminum profile to the required length.
  • Note the minimum height of the cut.
  • Ensure cut edges are square.
  • Deburr the profile after sawing.

2. Fasten the Base Plate

  • Fasten aluminum profile using self tapping screws.
  • When the screws are screwed in, a thread is created in the profile.
  • Thread cutting is not required with self tapping screws.
  • Maximum torque: 20 Nm

3. Insert Square Nuts

  • Insert square nuts in the T-Slot of the aluminum profiles.
  • For fastening customer-side templates (material thickness 5 – 6 mm) or optionally also lateral fastening of quick-change clamps with M8x12 screws.

4. Fasten the Cover Plate

  • Fasten aluminum profile using self tapping screws.
  • When the screws are screwed in, a thread is created in the profile.
  • Thread cutting is not required with self tapping screws.
  • Maximum torque: 20 Nm

5. Mount Accessories

  • Mount the quick-change clamp directly on the cover plate.
  • The quick-change clamp can also be attached using an adapter.

6. Clamp the Device

  • Attachment to perforated plate, welding table or slot table with fast clamping bolts.
  • If required, use a M8x12 screw to fasten the customized template to a square nut.
