The Siegmund Octagonal Table SW 1,800x150mm provides an exceptionally stable and versatile foundation for advanced robotic welding and automated fabrication environments. Its octagonal design ensures unrestricted multi-directional access, enabling precise alignment and efficient clamping in complex setups, while maintaining Siegmund’s signature accuracy and strength.
- Constructed from S355J2+N steel for superior load-bearing and structural rigidity.
- Plasma nitrided finish provides outstanding wear, corrosion, and heat resistance.
- Expansive 1,948mm (76.7" Inches) diameter workspace accommodates large assemblies.
- System 22 hole pattern guarantees compatibility with all Siegmund fixturing tools.

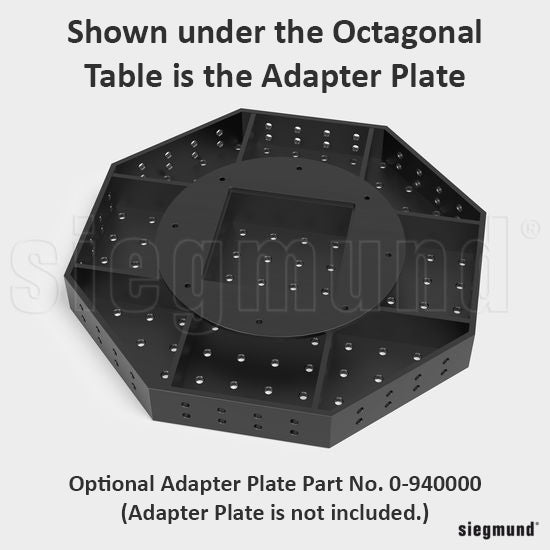

- Adapter plate interfaces available for robotic positioners and automated platforms.
- Custom hole configurations and connection systems available upon request.
Key Features:
- Octagonal shape provides full 360° access for manipulators and fixtures.
- Plasma nitrided surface ensures long-lasting dimensional accuracy.
- Weighs 710 kg (1,565.3 lbs.) for maximum rigidity and vibration resistance.
- Fully compatible with Siegmund System 22 components and accessories.
- Ideal for robotic welding, automation, and large-scale assembly operations.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 746mm (29.4" Inches)
- Width: 1,800mm (70.9" Inches)
- Height: 150mm (5.9" Inches)
- Diameter: 1,948mm (76.7" Inches)
- Material: S355J2+N Steel
- Material Thickness: 18mm (0.71" Inches)
- Weight: 1,565.3 lbs. (710 kg.)
- Surface: Plasma Nitrided
Common Uses:
This Siegmund Octagonal Table is built for precision robotic welding, automation integration, and heavy fabrication projects requiring absolute stability and access flexibility. The large, precision-machined surface supports complex assemblies and multi-axis tooling, ensuring accurate repeatability and efficient part handling across high-production environments.
