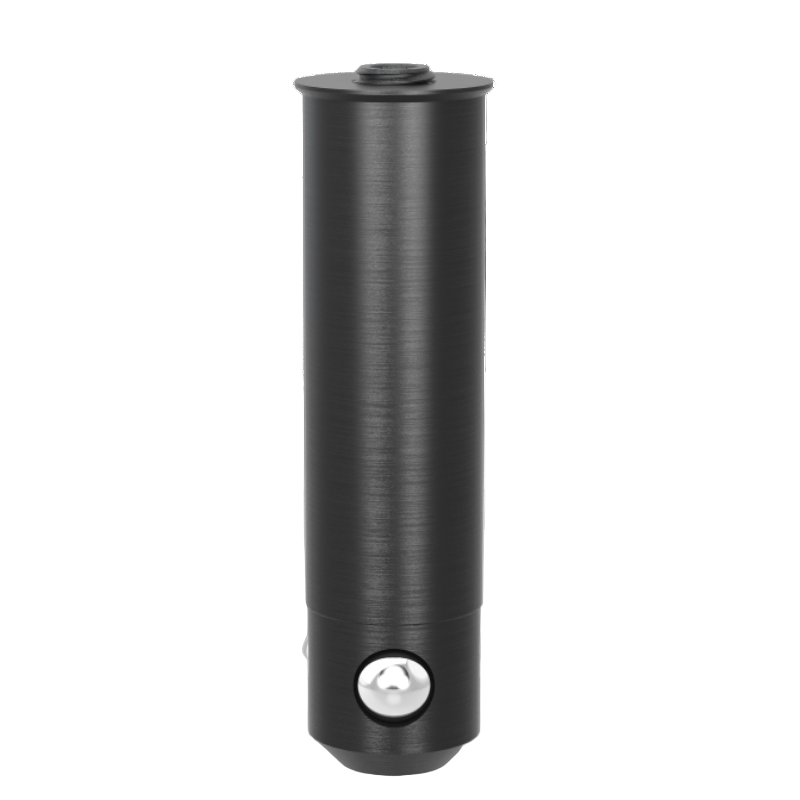

The Siegmund 2-AP220530 Flush Mount Bolt ensures a perfectly smooth connection between Siegmund aluminum profiles and fixtures, maintaining a clean, flush surface without O-rings. It’s precision-machined for exact alignment and secure holding power in demanding assembly and fixturing setups.
- The burnished finish resists corrosion and wear.
- Countersunk design allows the bolt head to sit flush with the borehole.
- Specifically adapted collar ensures optimal clamping of aluminum profiles.
- Smooth surface eliminates O-ring grooves for uninterrupted contact.
- Ideal for precise, repeatable positioning of Siegmund System 22 components.
- Provides consistent tightening torque performance up to 6 Nm (53.1 lbf·in).
Key Features:
- Flush-fit design delivers smooth, snag-free surfaces for tight aluminum assemblies.
- Burnished steel body enhances durability and corrosion resistance.
- Hex socket (Size 5) allows secure and consistent torque application.
- Supports up to 130 kN (29,225 lbf.) shearing force for stable performance.
- Precisely engineered for Siegmund System 22 Metric Series compatibility.
Specifications:
- System: Siegmund System 22 Metric Series
- Length: 86 mm (3.39" Inches)
- Weight: 0.51 lbs. (0.23 kg.)
- Shearing Force: 130 kN (29,225 lbf.)
- Tightening Torque (Aluminum): 6 Nm (53.1 lbf·in)
- Tensile Force (Steel): 2 kN (449.6 lbf.)
- Material: Burnished Steel
- Connection Type: Hexagon Socket (Size 5)
- Clamping Capacity: 4 components
Common Uses:
The Siegmund 2-AP220530 Flush Mount Bolt is used in aluminum fixture assemblies where a smooth, flush-mounted surface and consistent torque control are essential. It provides a reliable connection for joining Siegmund aluminum profiles, ensuring rigid and repeatable setups in precision welding, fabrication, and assembly applications.
