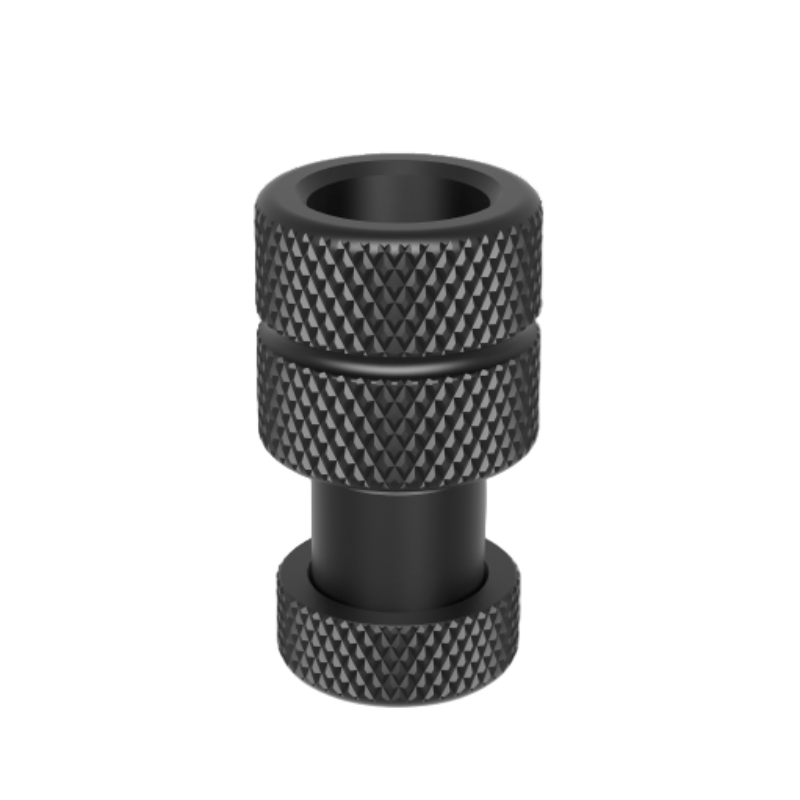

The 2-AP220605.N Siegmund Adapter for Screw Clamps Basic Nitrided is an essential component for achieving secure and stable clamping with Siegmund screw clamps in System 22 setups. It compensates for varying material thicknesses between fixtures and ensures consistent clamping force and alignment across steel or aluminum profiles.
- Made from high-strength steel with a plasma nitrided surface for exceptional wear resistance.
- Provides precise height compensation for screw clamp applications.
- Delivers a stable connection between screw clamps and table bores.
- Prevents misalignment and uneven clamping on thinner work surfaces.
- Compact and easy to install in any modular Siegmund setup.
Key Features:
- Nitrided steel construction offers maximum surface hardness and longevity.
- Improves clamping accuracy and consistency across fixtures.
- Compact design enables quick and reliable setup changes.
- Ideal for adapting screw clamps to multiple fixture configurations.
- Compatible with all Siegmund System 22 screw clamps.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 63mm (2.48" Inches)
- Diameter: 35mm (1.38" Inches)
- Weight: 0.60 lbs. (0.27 kg.)
- Material: Plasma Nitrided Steel
Compatibility:
For use with Screw Clamps: 220610.1, 220630.1, 220615
Common Uses:

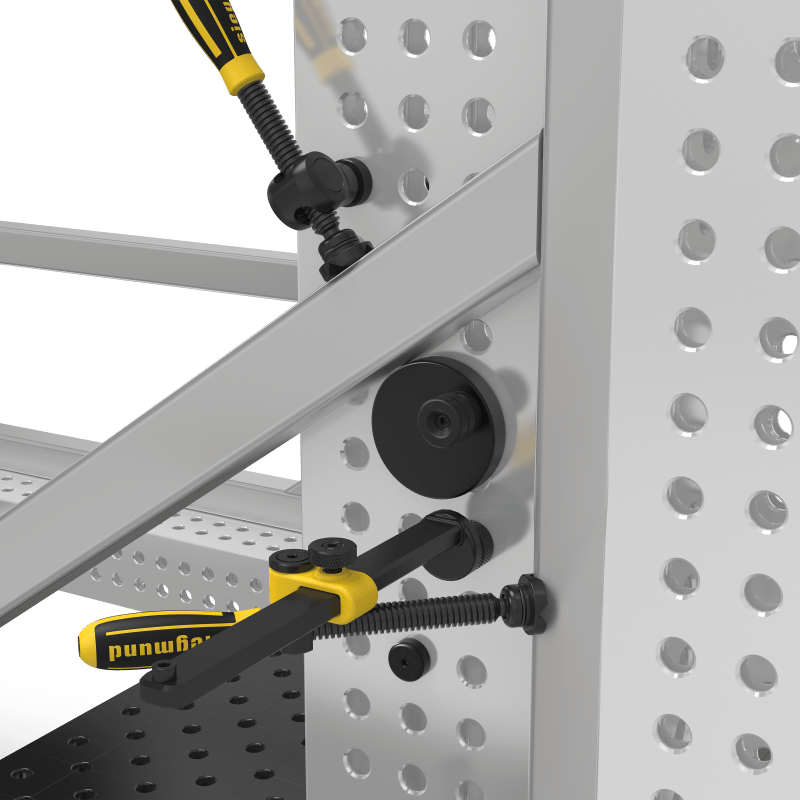

The Siegmund 2-AP220605.N Adapter for Screw Clamps Basic Nitrided is used to precisely align and secure screw clamps on Siegmund System 22 tables and fixtures. It provides a solid interface that maintains optimal clamping force on thin-walled or variable-thickness components in steel or modular welding environments.
