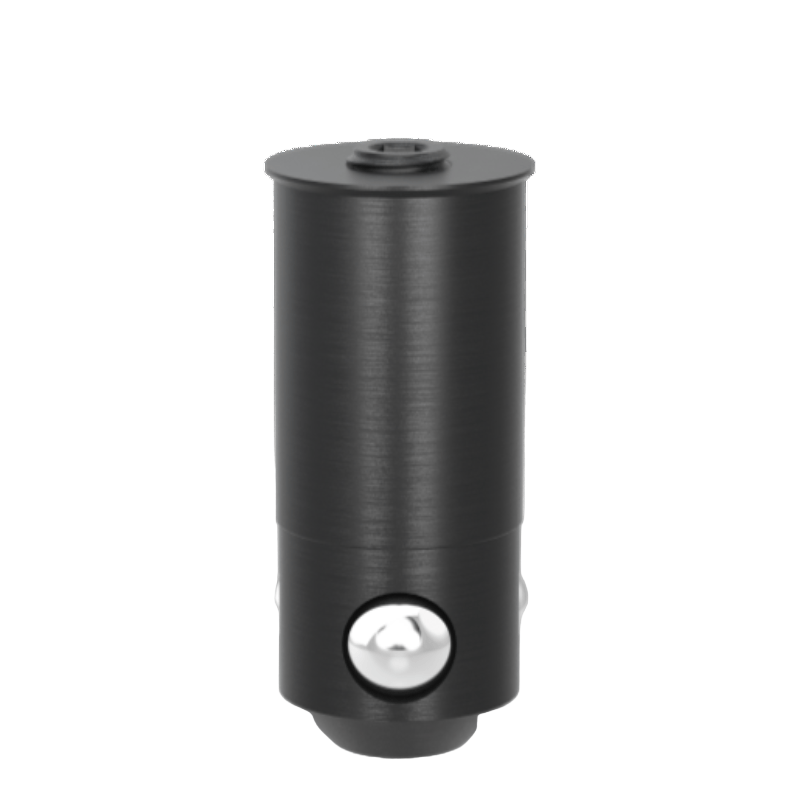

The Flush Mount Bolt without slot double burnished provides a clean, smooth, and secure fastening solution for Siegmund System 28 aluminum profiles. With its countersunk design, this bolt sits flush with the borehole, delivering precise alignment while maintaining a streamlined surface.
- The 65mm (2.56" Inches) length allows clamping of two components.
- Double burnished finish ensures long-lasting wear resistance.
- Countersunk collar adapts specifically for use with aluminum profiles.
- Provides reliable clamping with material-dependent torque settings.
- Hexagon socket (Size 6) ensures straightforward and repeatable tightening.
- Flush design prevents obstruction during fixture setup.
Key Features:
- Flush mount design keeps surfaces clear and smooth.
- Optimized for aluminum profiles and compatible components.
- Withstands 220 kN (49,458.8 lbf.) shear force.
- Supports 3 kN (674.4 lbf.) tensile force for aluminum clamping.
- Durable burnished surface provides extended service life.
Specifications:
- Item No.: 2-AP280528
- System: Siegmund System 28 Metric Series
- Length: 65mm (2.56" Inches)
- Weight: 0.62 lbs. (0.28 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Tensile Force Steel: 3 kN (674.4 lbf.)
- Connection Type: Hexagon Socket (Size 6), Countersunk Flush Top
Common Uses:

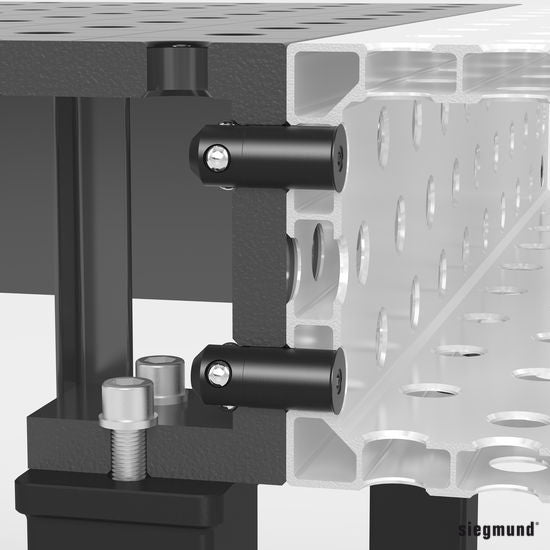

This bolt delivers secure and flush fastening of Siegmund System 28 aluminum profiles and related components. Its countersunk design ensures the bolt head sits level with the borehole, eliminating interference in fixture setups. Fabricators use it to maintain precise alignment and clean surfaces in aluminum-specific welding and fixturing tasks.
