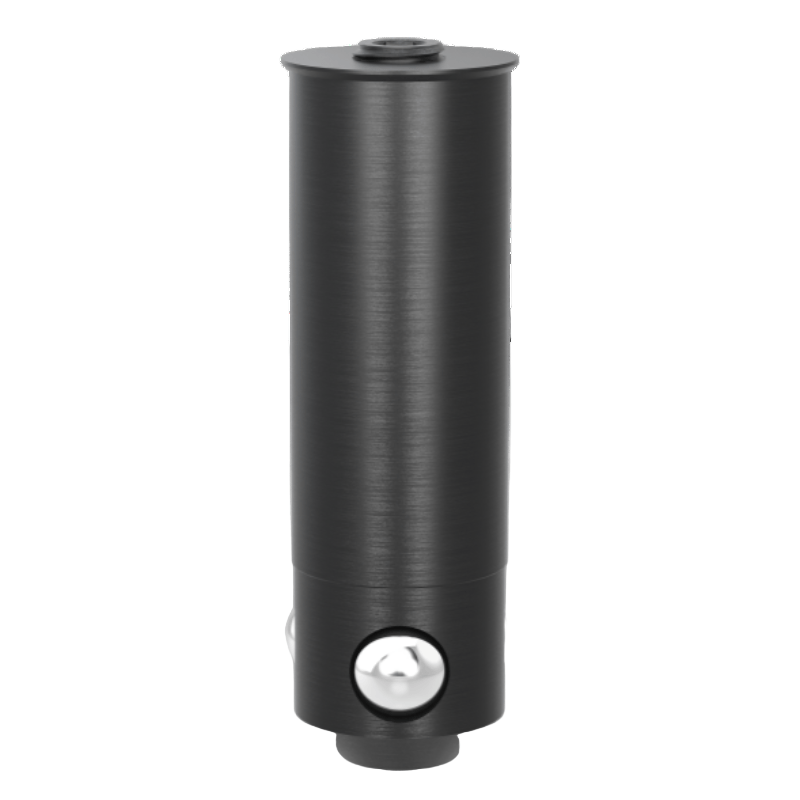

The Flush Mount Bolt without slot triple burnished is a precise fastening solution for aluminum profiles within the Siegmund System 28. With its countersunk collar, the bolt head sits flush with the borehole, ensuring smooth, obstruction-free surfaces and reliable alignment in shop setups.
- The 92mm (3.62" Inches) length supports clamping of up to three components.
- Triple burnished finish provides enhanced wear resistance.
- Countersunk collar is tailored for aluminum profile compatibility.
- Delivers strong shear resistance with material-specific torque settings.
- Hexagon socket (Size 6) ensures consistent tightening.

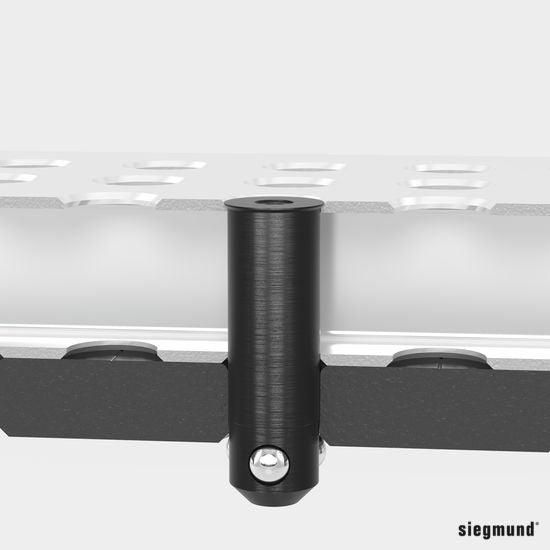

- Flush mounting design eliminates interference in fixture alignment.
Key Features:
- Flush head design keeps fixture surfaces clear.
- Engineered for aluminum profiles in System 28 applications.
- Withstands 220 kN (49,458.8 lbf.) shear force.
- Supports 3 kN (674.4 lbf.) tensile force in aluminum use.
- Triple burnished finish extends service life.
Specifications:
- Item No.: 2-AP280529
- System: Siegmund System 28 Metric Series
- Length: 92mm (3.62" Inches)
- Weight: 0.88 lbs. (0.40 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Tensile Force Steel: 3 kN (674.4 lbf.)
- Connection Type: Hexagon Socket (Size 6), Countersunk Flush Top
Common Uses:

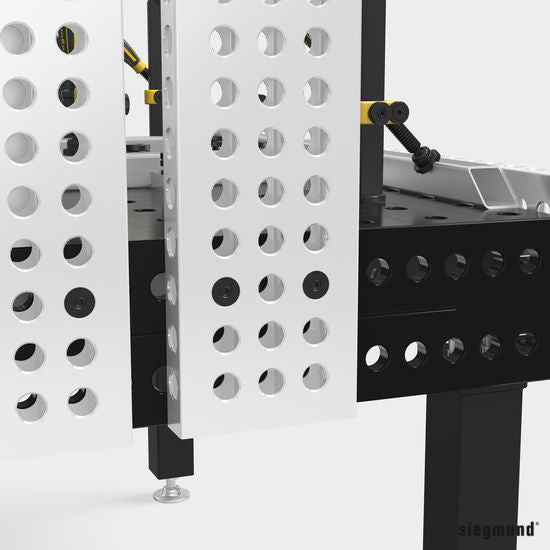

This bolt provides flush, secure fastening of up to three aluminum components in Siegmund System 28 setups. Its triple burnished finish resists wear, while the countersunk design guarantees level, obstruction-free mounting. It is relied upon by fabricators needing precision and durability in aluminum welding and fixturing work.
