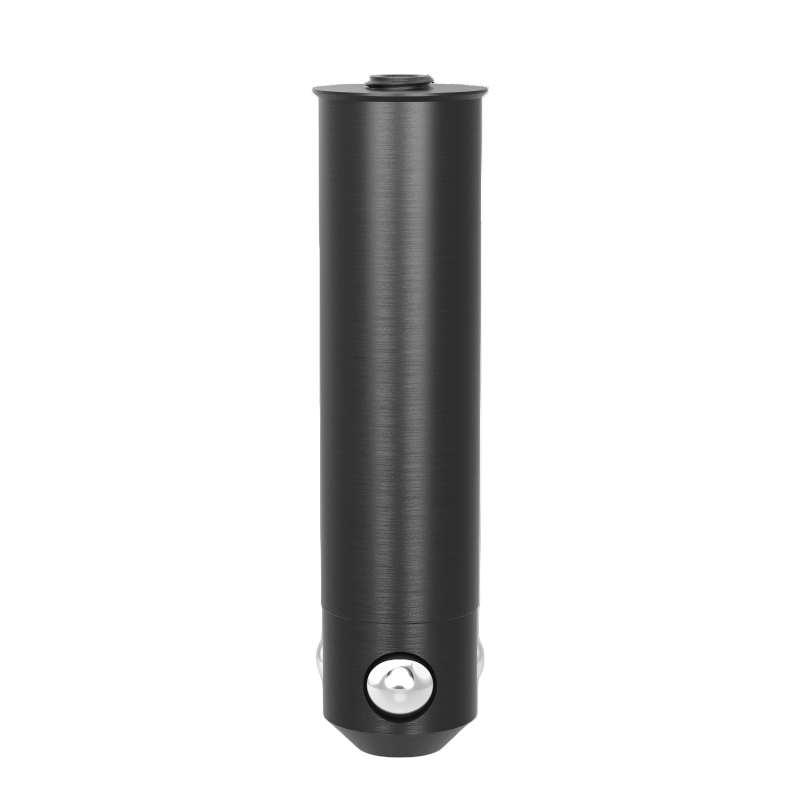

The Flush Mount Bolt without slot quadruple burnished is a durable, precise fastening solution for Siegmund System 28 aluminum profiles. With its countersunk collar, this bolt sits flush with the borehole, ensuring a smooth, level surface and secure clamping in multi-component setups.
- The 117mm (4.61" Inches) length supports clamping of up to four components.
- Quadruple burnished finish enhances wear resistance and longevity.
- Countersunk collar ensures secure seating with aluminum profiles.
- Flush design prevents interference in fixture setups.
- Hexagon socket (Size 6) allows consistent and efficient tightening.
- Material-specific torque provides safe use with aluminum clamping.
Key Features:
- Flush mounting ensures clear, obstruction-free surfaces.
- Quadruple burnished surface provides maximum durability.
- Handles 220 kN (49,458.8 lbf.) shear force.
- Supports 3 kN (674.4 lbf.) tensile force in aluminum setups.
- Engineered for precision clamping of four components.
Specifications:
- Item No.: 2-AP280530
- System: Siegmund System 28 Metric Series
- Length: 117mm (4.61" Inches)
- Weight: 1.10 lbs. (0.50 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Tensile Force Steel: 3 kN (674.4 lbf.)
- Connection Type: Hexagon Socket (Size 6), Countersunk Flush Top
Common Uses:

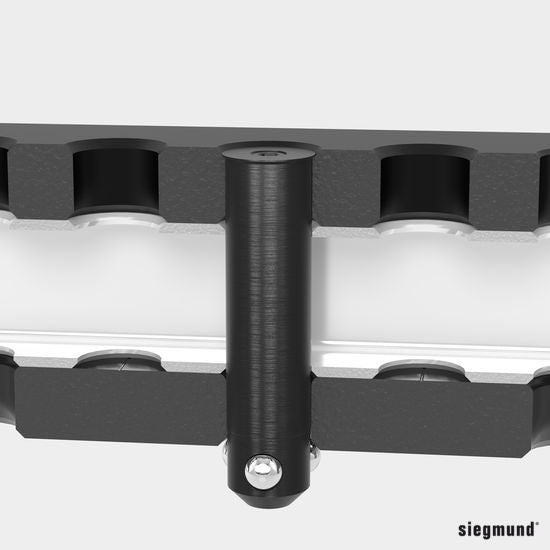

This bolt secures up to four aluminum components in Siegmund System 28 setups, maintaining flush alignment for precise welding and fixturing work. Its quadruple burnished surface ensures long-term durability under heavy use, while the countersunk design eliminates surface interference. It is the choice for fabricators who require strength, flush mounting, and reliability in aluminum profile clamping.
