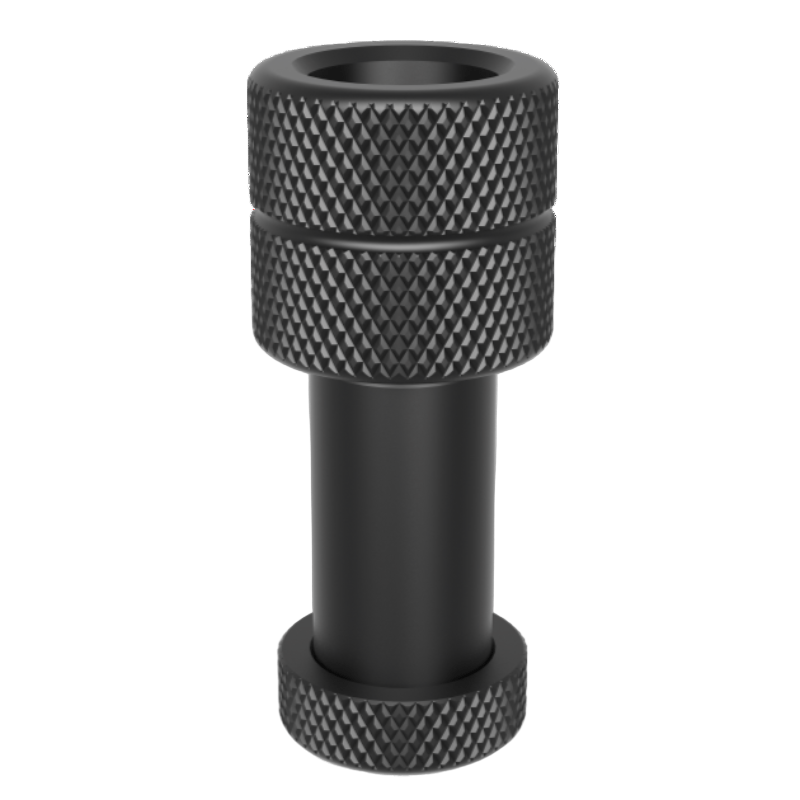

The SiegmundDouble Adapter for Screw Clamps provides secure connection between clamps and aluminum profiles in Siegmund System 28 setups. Its extended length ensures proper compensation for thinner aluminum wall thickness, enabling reliable clamping with standard Siegmund accessories.
- Measures 105mm (4.13" Inches) in length with a 45mm (1.77" Inches) diameter.
- Nitrided surface treatment enhances wear resistance and durability.
- Provides proper fit and stable alignment of screw clamps in aluminum profiles.
- Weighs 1.43 lbs. (0.65 kg.), offering strength without unnecessary bulk.
- Easily integrates with compatible Siegmund System 28 clamps.
- Ensures repeatable precision and reliability in aluminum setups.
Key Features:
- Extended 105mm length for stronger fixture support.
- Nitrided finish improves lifespan and wear resistance.
- Ensures clamps fit securely into aluminum profiles.
- Compatible with Siegmund System 28 Metric Series.
- Essential accessory for stable clamping in aluminum applications.
- For Screw Clamps: 280610.N, 280630.N, 280615.N, 280611.1, 280611.2
Specifications:
- Series: Siegmund System 28 Metric Series
- Item No.: 2-AP280602.N
- Length: 105mm (4.13" Inches)
- Diameter: 45mm (1.77" Inches)
- Weight: 1.43 lbs. (0.65 kg.)
- Material: Nitrided Steel
Common Uses:
This adapter is used to secure screw clamps in aluminum profiles where wall thickness must be compensated. Its extended 105mm design improves stability for larger setups, making it critical in System 28 aluminum applications that require reliable and precise fixturing.
