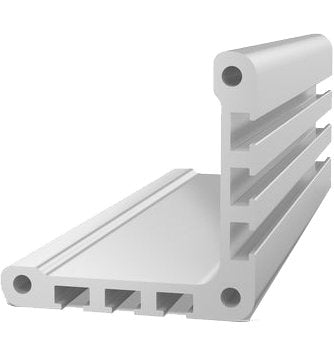

2-CS000172: 2000mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

2-CS000172: 2000mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

Manufacturer: Siegmund
Part No. (SKU): 2-CS000172
Current Availability in the USA: Out Of Stock
Series: 16mm Welding Table Accessories
$210
$296
$210
Subtotal: $210
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

2-CS000172: 2000mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

Siegmund

2-CS000172: 2000mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

$296 $210
2-CS000172: 2000mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

Siegmund

2-CS000172: 2000mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

$296 $210
Description

The Aluminum Profile Enables Fast, Powerful, and Effortless Support and Adaptability.

The Siegmund Aluminum Profile, can be used to Variably Adjust Fixtures due to the Combination of Sizes and Shapes

Specs and Features

of the Siegmund Aluminum Profiles

Specs and Features:

- 3 T-slots On Each Side
- For M8 Square Nuts
- Distance Of T-Slots 20 mm
 - Length: 2000mm (78.74")
- Width: 100mm (3.94")
- Height: 100mm (3.94")
- Weight: 19.27 Ibs (8.74kg)
- For Connecting Base And Cover Plate
- Aluminum Profile 2000 mm For Customized Cutting
- Minimum Height For Cuts: System 16: 45 mm, System 22:
35 mm, System 28: 40 mm

1. Define the Height of the Square

  • Cut the aluminum profile to the required length.
  • Note the minimum height of the cut.
  • Ensure cut edges are square.
  • Deburr the profile after sawing.

2. Fasten the Base Plate

  • Fasten aluminum profile using self tapping screws.
  • When the screws are screwed in, a thread is created in the profile.
  • Thread cutting is not required with self tapping screws.
  • Maximum torque: 20 Nm

3. Insert Square Nuts

  • Insert square nuts in the T-Slot of the aluminum profiles.
  • For fastening customer-side templates (material thickness 5 – 6 mm) or optionally also lateral fastening of quick-change clamps with M8x12 screws.

4. Fasten the Cover Plate

  • Fasten aluminum profile using self tapping screws.
  • When the screws are screwed in, a thread is created in the profile.
  • Thread cutting is not required with self tapping screws.
  • Maximum torque: 20 Nm

5. Mount Accessories

  • Mount the quick-change clamp directly on the cover plate.
  • The quick-change clamp can also be attached using an adapter.

6. Clamp the Device

  • Attachment to perforated plate, welding table or slot table with fast clamping bolts.
  • If required, use a M8x12 screw to fasten the customized template to a square nut.
