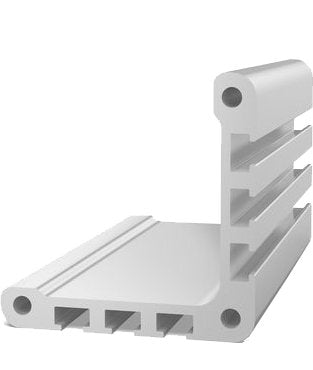

2-CS000172.5: 176mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

1. Define the Height of the Square

• Cut the aluminum profile to the required length.
• Note the minimum height of the cut.
• Ensure cut edges are square.
• Deburr the profile after sawing.

2. Fasten the Base Plate

• Fasten aluminum profile using self tapping screws.
• When the screws are screwed in, a thread is created in the profile.
• Thread cutting is not required with self tapping screws.
• Maximum torque: 20 Nm

3. Insert Square Nuts

• Insert square nuts in the T-Slot of the aluminum profiles.
• For fastening customer-side templates (material thickness 5 – 6 mm) or optionally also lateral fastening of quick-change clamps with M8x12 screws.

4. Fasten the Cover Plate

• Fasten aluminum profile using self tapping screws.
• When the screws are screwed in, a thread is created in the profile.
• Thread cutting is not required with self tapping screws.
• Maximum torque: 20 Nm

5. Mount Accessories

• Mount the quick-change clamp directly on the cover plate.
• The quick-change clamp can also be attached using an adapter.

6. Clamp the Device

• Attachment to perforated plate, welding table or slot table with fast clamping bolts.
• If required, use a M8x12 screw to fasten the customized template to a square nut.
