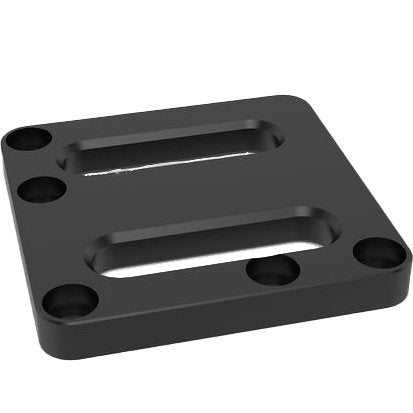

2-CS160193: 100mm Linear Left Base Plate (Nitrided)

Manufacturer: Siegmund
Part No. (SKU): 2-CS160193
Current Availability in the USA: Out Of Stock
Series: 16mm Welding Table Accessories
$32
$45
$32
Subtotal: $32
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

2-CS160193: 100mm Linear Left Base Plate (Nitrided)

Manufacturer: Siegmund

2-CS160193: 100mm Linear Left Base Plate (Nitrided)

$45 $32

Manufacturer: Siegmund

2-CS160193: 100mm Linear Left Base Plate (Nitrided)

$45 $32

Specs and Features:
- Item No. 2-CS160192
- Nitrided
‐ Linearly Positionable Left
‐ For Fastening To Aluminum Profile With Self-tapping Screw
‐ Steplessly Moveable
- Length: 100mm (3.94'')
- Width: 100mm (3.94'')
- Material Thickness: 12mm (0.47'')
- Weight: 1.41 Ibs. (0.64kg)

1. Define the Height of the Square

  • Cut the aluminum profile to the required length.
  • Note the minimum height of the cut.
  • Ensure cut edges are square.
  • Deburr the profile after sawing.

2. Fasten the Base Plate

  • Fasten aluminum profile using self tapping screws.
  • When the screws are screwed in, a thread is created in the profile.
  • Thread cutting is not required with self tapping screws.
  • Maximum torque: 20 Nm

3. Insert Square Nuts

  • Insert square nuts in the T-Slot of the aluminum profiles.
  • For fastening customer-side templates (material thickness 5 – 6 mm) or optionally also lateral fastening of quick-change clamps with M8x12 screws.

4. Fasten the Cover Plate

  • Fasten aluminum profile using self tapping screws.
  • When the screws are screwed in, a thread is created in the profile.
  • Thread cutting is not required with self tapping screws.
  • Maximum torque: 20 Nm

5. Mount Accessories

  • Mount the quick-change clamp directly on the cover plate.
  • The quick-change clamp can also be attached using an adapter.

6. Clamp the Device

  • Attachment to perforated plate, welding table or slot table with fast clamping bolts.
  • If required, use a M8x12 screw to fasten the customized template to a square nut.
