Specs and Features:
- Item No. 2-CS280194
- Nitrided
‐ Linearly Positionable Right
‐ For Fastening To Aluminum Profile With Self-tapping Screw
‐ Steplessly Moveable
- Length: 175mm (6.89'')
- Width: 175mm (6.89'')
- Material Thickness: 15mm (0.59'')
- Weight: 4.92 Ibs. (2.23kg)

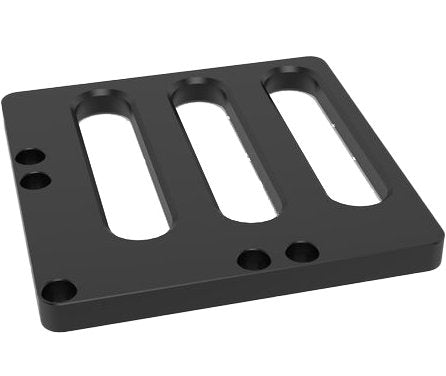

2-CS280194: 175mm Linear Right Base Plate (Nitrided)
Availability:
Pre-Order
$89
$111
1. Define the Height of the Square
- Cut the aluminum profile to the required length.
- Note the minimum height of the cut.
- Ensure cut edges are square.
- Deburr the profile after sawing.
2. Fasten the Base Plate
- Fasten aluminum profile using self tapping screws.
- When the screws are screwed in, a thread is created in the profile.
- Thread cutting is not required with self tapping screws.
- Maximum torque: 20 Nm
3. Insert Square Nuts
- Insert square nuts in the T-Slot of the aluminum profiles.
- For fastening customer-side templates (material thickness 5 – 6 mm) or optionally also lateral fastening of quick-change clamps with M8x12 screws.
4. Fasten the Cover Plate
- Fasten aluminum profile using self tapping screws.
- When the screws are screwed in, a thread is created in the profile.
- Thread cutting is not required with self tapping screws.
- Maximum torque: 20 Nm
5. Mount Accessories
- Mount the quick-change clamp directly on the cover plate.
- The quick-change clamp can also be attached using an adapter.
6. Clamp the Device
- Attachment to perforated plate, welding table or slot table with fast clamping bolts.
- If required, use a M8x12 screw to fasten the customized template to a square nut.
