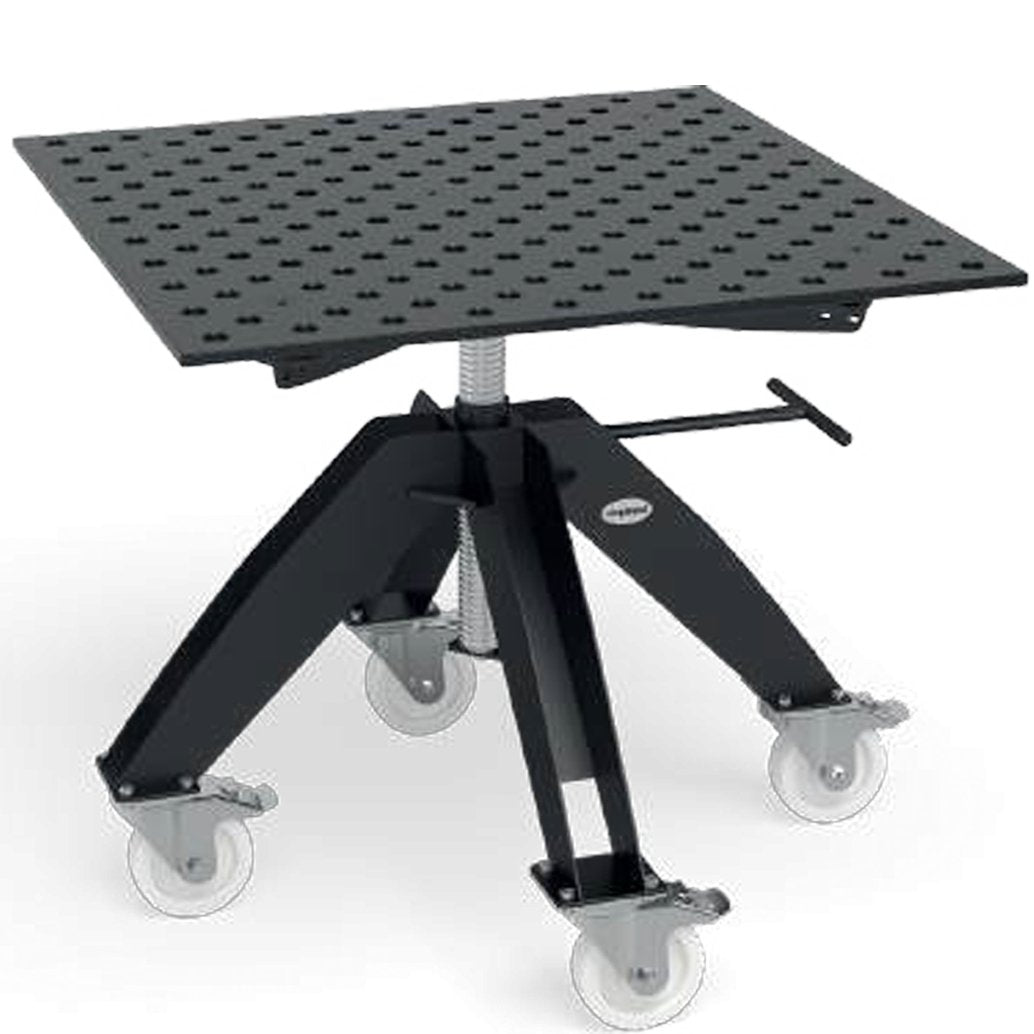

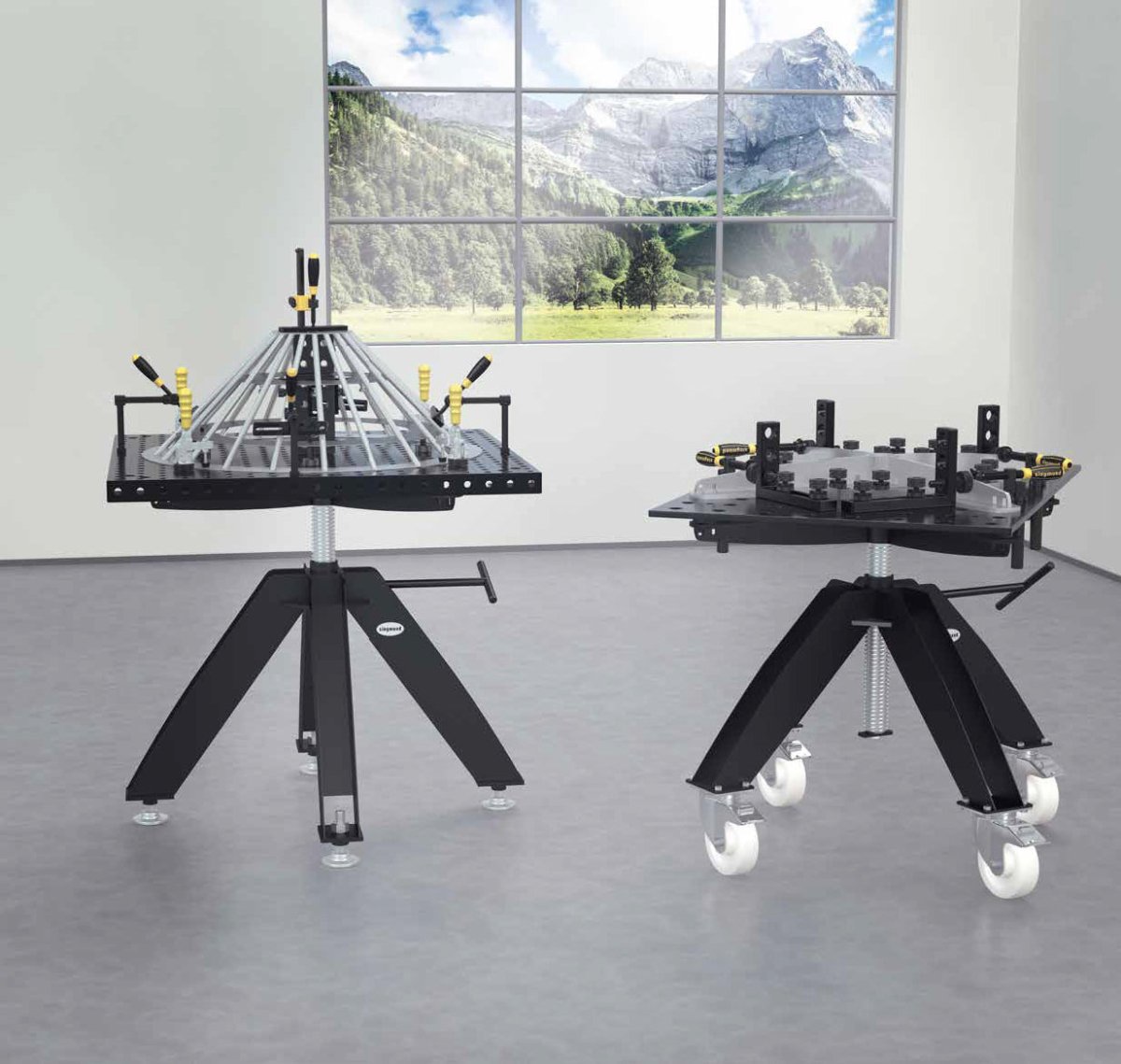

2-DM804024.XD7: 1000x1000x15mm (39.3"x39.3"x0.59") System 28 Mobile Rotating Welding Table

QUICK AND EASY TO THE IDEAL WORKING HEIGHT

The height adjustable rotating table by Siegmund provides a flexible working height with high load capacity and easy handling.

(Item No. 2-DM804024.XD7)

ERGONOMIC WORKING IN A SMALL SPACE
The height adjustable rotating table by Siegmund provides a space-saving and ergonomic working basis. By turning the plate you can continuously adjust the working height. Use the locking lever on the side to fix the position of the worktop.

360° HANDLING
With the height adjustable rotating table you can easily reach and handle your workpiece from all sides. 360° handling and always the right working height with the height adjustable rotating table by Siegmund.

MOBILE BASIC FRAME
The Mobile Basic Frame is Powder Coated with a Steel Construction, with all 4 Castors having Locking Brakes.

WELDING TABLE SPECS AND FEATURES:

• Overall Tabletop Size: 39.3"x39.3"x0.59" (1000x1000x15mm)
• Welding Table Series: System 28
• Welding Table Material Thickness: Approx. 0.59" (15mm)
• Welding Table Material Type and Finish: Premium Light / Through-Hardened Tool Steel X8.7, Plasma Nitrided and BAR-Coated
• Official Welding Table Part No.: 2-DM804024.XD7
• Borehole Size: Ø 28mm (1.10")
• Maximum Load Capacity (incl. Perforated Plate): 2,200 lbs. (1,000 kg.)
• Approx. Working Height: 30.7" to 43.3" (780 to 1,100mm)
• Grid: Grid lines in a distance of 100x100mm (3.93" x 3.93") help you to arrange your accessories.
• Approximate Weight: 396 lbs. / 179 kg.

1. Boreholes on the surface are in a 100x100mm (3.93"x3.93") Grid Configuration.
2. Boreholes have a radius of 2mm (0.080").
3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
