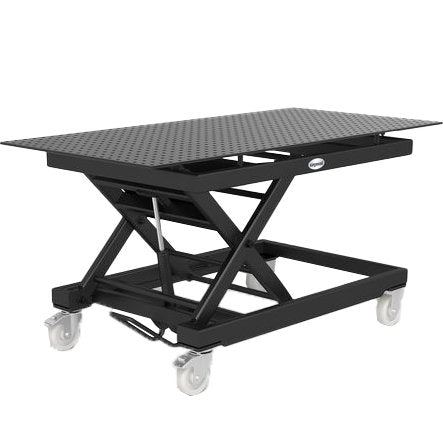

2-HS164044.X7: 2,000x1,000x12mm System 16 Professional Extreme 8.7 Mobile Lifting Table

Manufacturer: Siegmund
Part No. (SKU): 2-HS164044.X7
Current Availability in the USA: 2 In Stock
Series: System 16 Welding Tables
$4,592
$5,743
$4,592
Subtotal: $4,592

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

Item No. 2-HS164044.X7

The System 16 Mobile Lifting Welding is the ideal choice for Pain Free Working.

All System 16 Mobile Lifting Tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

PERFORATED 1500x1000 mm PLATE

  • Boreholes: Ø 16 mm.
  • Premium Steel S355J2+N + Plasma Nitration.
  • Tool Steel + Plasma Nitration.
  • Working Height from Approx. 700 to 1,000 mm.

BASE FRAME - STEEL

  • Steel Construction.
  • Powder Coated Finish.
  • Will be Delivered Pre-Assembled.

FINE ADJUSTMENT FOR PERFECT LEVELNESS

  • Screws for Fine Adjustment.
  • Mounting in System Boreholes.

LOAD CAPACITY

    • Weight (without plate): approx. 65 kg.
    • Maximum Load Capacity 1,000 kg (without plate).

PROTECTIVE PLATE

  • Protective Plate Below the Worktop.
  • Protects the Hydraulic Unit from Dirt from Above.

Specs and Features

of the System 16 Mobile Lifting Table

Item No. 2-HS164044.X7

Specs & Features
of the System 16 Mobile Lifting Table

Welding Table Specs and Features:

  • Overall Tabletop Size: 2,000 x 1,000 mm (39"x78")
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional 8.7
  • Welding Table Material Thickness: Approx. 11.5 - 13 mm
  • Welding Table Material Type and Finish: Through Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Official Siegmund Welding Table Part No.: 2-HS164044.X7
  • Working height: approx. 700 to 1,000 mm (27" to 39")
  • Maximum Weight Load : 1,000 kg (without plate) (2,204 lbs.)
  • Approximate Weight: 379 kg (835 lbs.)
  • Boreholes on the Surface: are a 50x50 mm Grid Configuration.
