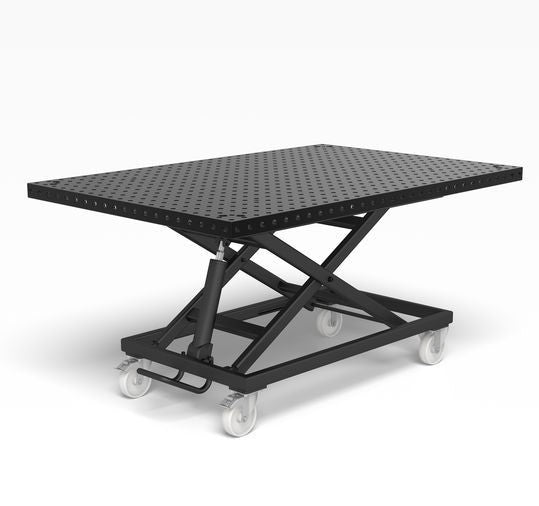

2-HT161035.P: 1500x1000x50mm System 16 Mobile Lifting Table

2-HT161035.P: 1500x1000x50mm System 16 Mobile Lifting Table

Availability: Pre-Order
$4,782 $5,977
Successful pre-order.Thanks for contacting us!

The System 16 Welding Table Series was created with Versatility and Strength in mind.

Product description
With the new Siegmund lifting table you can quickly and easily reach the ideal working height. Set new standards in ergonomics and flexibility and benefit from the various application possibilities.

The sturdy steel construction offers total stability with continuous height adjustment.

Maximum load capacity Basic frame 500 kg (1102.31 lbs.) (without plate)

Welding Table Specs and Features:

  • premium steel S355J2+N,
  • plasma nitrided and BAR-coated
  • Borehole Ø 16 mm (0.63")
  • Boreholes on the surface 50x50 mm (1.96") grid
  • Material thickness approx. 11.5 – 13 mm (0.45" - 0.51")
  • Height of table side 50 mm (1.96")
  • Working height from approx. 700 to 1,000 mm (27.55" to 39.37")
