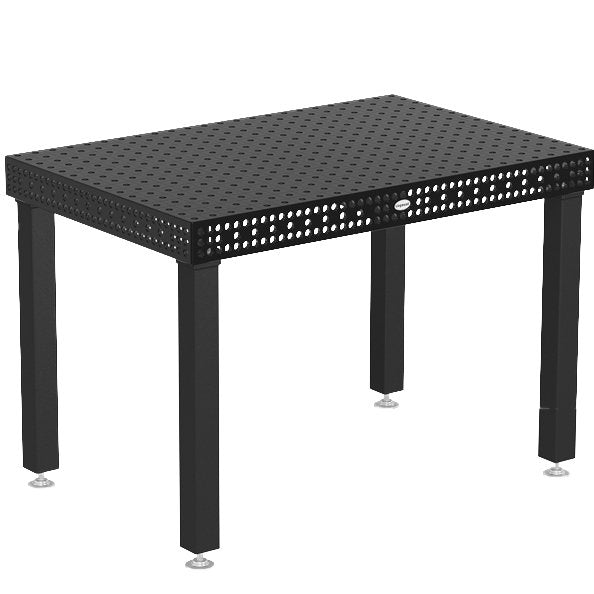

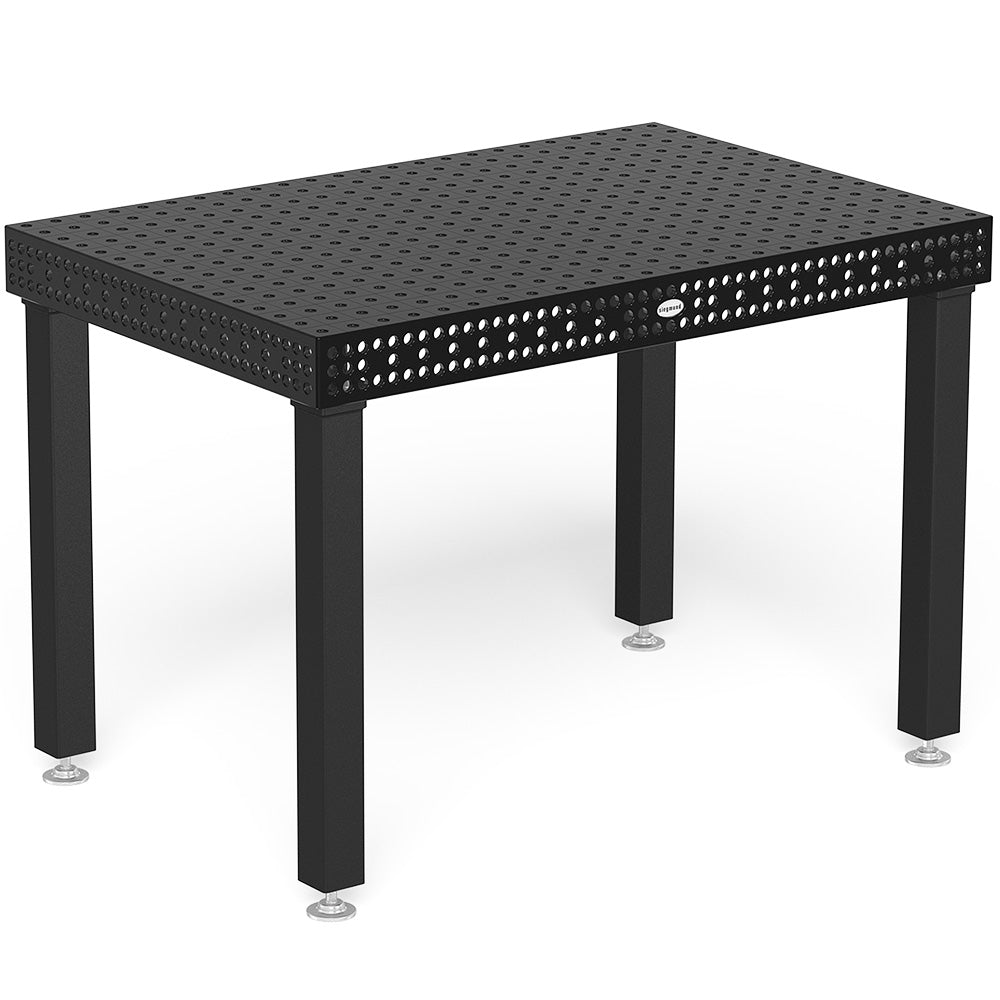

4-160025.X7D: Siegmund 1,200x800mm 8.7 Series System 16 Welding Table

Manufacturer: Siegmund
Part No. (SKU): 4-160025.X7D + (x4) 160858.X
Current Availability in the USA: 11 In Stock
Series: System 16 Welding Tables
$2,682
$3,788
$2,682
Table Legs: 4 Standard Legs
Subtotal: $2,682

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

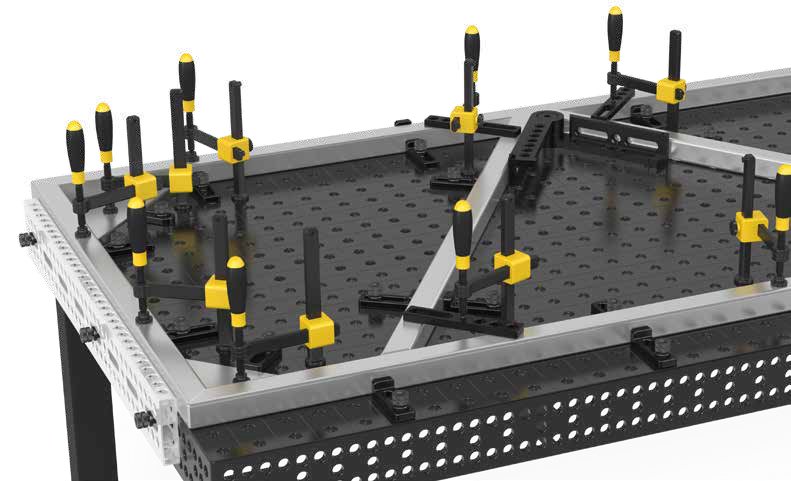

(Image is of a Siegmund System 16 8.7 Series, Welding Table with a Siegmund Accessory Kit . These items are not included. This is being shown as an example.)

The System 16 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16, 8.7 Welding Tables

Specs & Features
of the System 16, 8.7 Metric Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 1,200x800x100mm (47.24" x 31.5" x 3.93")
  • Borehole: Ø 16mm (0.629")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 11.5 – 13mm (0.45" - 0.51")
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: 4-160025.X7D
  • Maximum Weight Load: 5,441 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 425 lbs. / 195 kg.
  1. Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").
  2. Boreholes have a radius of 2mm (0.078").
  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
  4. Height of table side 100mm (3.93") - Borehole spacing of table side 25mm (0.98")

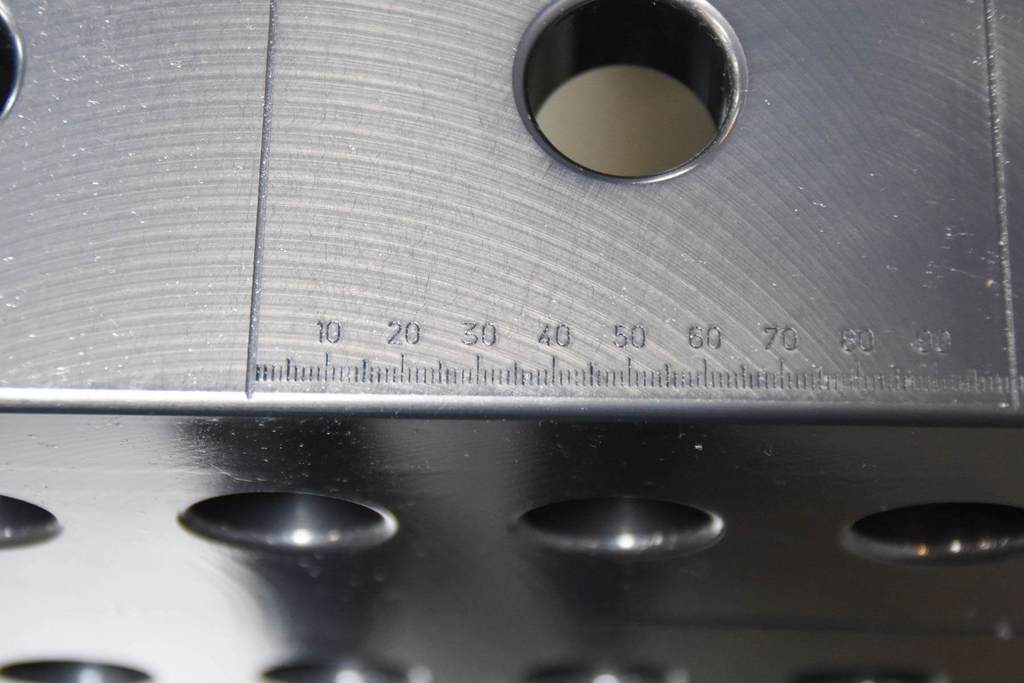

  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.

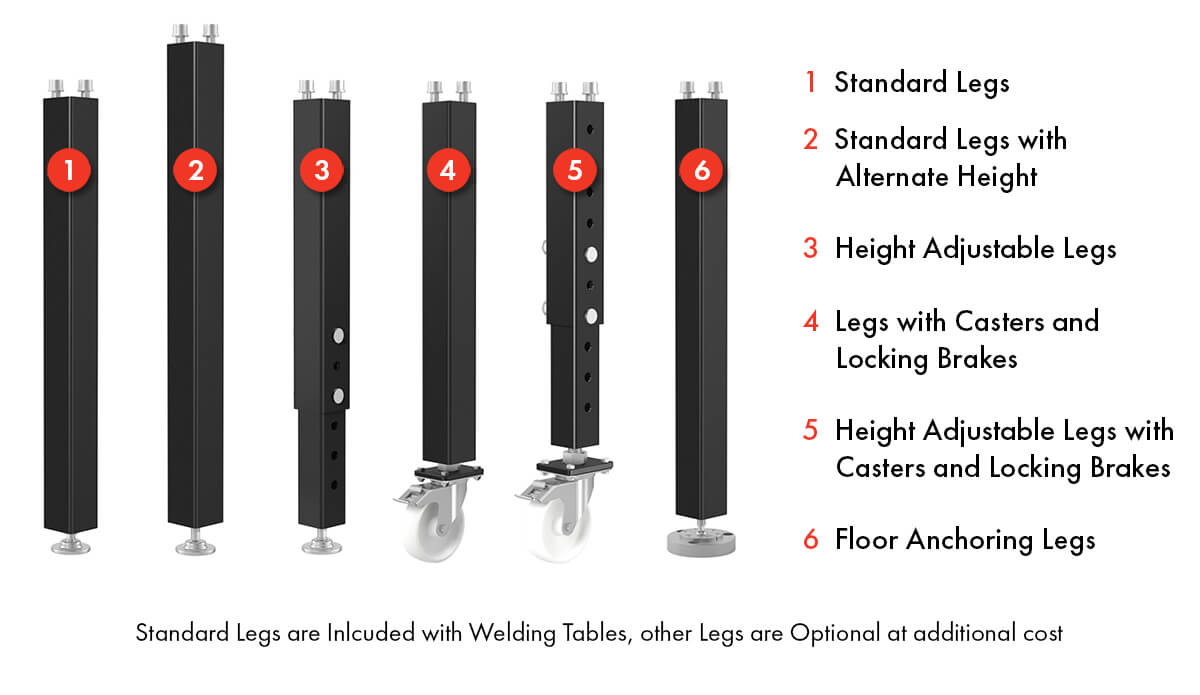

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

2-160858.X

2,200 lbs.

29.5" / 750mm

33.4" / 850mm

Included

2. Standard Leg
"Alternate Height"

2-160857.X

2,200 lbs.

33.46" / 850mm

37.4" / 950mm

$0

3. Height Adjustable Leg

4-160877.XX

2,200 lbs.

21.65"-37.4" / 550-950mm

25.6"-41.3" / 650-1,050mm

$87

4. Leg with Casters and
Locking Brakes

4-160876.XX

440 lbs.

29.5" / 750mm

33.4" / 850mm

$97

5. Height Adjustable Leg
with Casters and Locking Brakes

4-160879.XX

440 lbs

23.6"-35.4" / 600-900mm

27.6"-39.4" / 700-1,000mm

$146

6. Floor Anchoring Siegmund Leg

4-160875.XX

2,200 lbs

29.5" / 750mm

33.4" / 850mm

$101

Siegmund System 16 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: 2-160858.X
  • Leg Height: 29.5" / 750mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
2. Standard Siegmund Leg(s) "Alternative Height"
  • Item No.: 2-160857.X
  • Leg Height: 33.4" / 850mm
  • Table Height: 37.4" / 950mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs".)
  • Cost Per 4 Leg Set: $0

3. Height Adjustable Siegmund Leg(s)

  • Item No.: 4-160877.XX
  • Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
  • Table Height (Adjustable): 25.6" - 41.3" / 650mm - 1,050mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $87
  • Cost Per 4 Leg Set: $348

4. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 4-160876.XX
  • Leg Height (Adjustable): 29.5" / 750mm
  • Table Height (Adjustable): 33.4" / 850mm
  • Fine Adjustment: 1.18" / 30mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $97
  • Cost Per 4 Leg Set: $388
  • Note: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.





5. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 4-160879.XX
  • Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
  • Table Height (Adjustable): 27.5" - 39.37" / 700mm - 1,000mm
  • Fine Adjustment: 1.18" / 30mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $146
  • Cost Per 4 Leg Set: $584
  • Note: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.

6. Floor Anchoring Siegmund Leg(s)

  • Item No.: 4-160875.XX
  • Leg Height: 29.5" / 750mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $101
  • Cost Per 4 Leg Set: $404
