4-161035.P: Siegmund 1,500x1,000mm "BASIC" System 16 Welding Table

Name: 4-161035.P: Siegmund 1,500x1,000mm "BASIC" System 16 Welding Table
Brand: Siegmund
SKU: 4-161035.P + (4x) 161856
Price: 2589 USD
Availability: InStock

Manufacturer: Siegmund

Part No. (SKU): 4-161035.P + (4x) 161856

Current Availability in the USA: 3 In Stock

Series: System 16 Welding Tables

$2,589; ~~$3,656~~; $2,589
Unit price: per

Table Legs: 4 Standard Legs 4 Standard Legs 4 Height Adjustable Legs 4 Legs with Casters & Locking Brakes 4 Height Adjustable Legs with Casters & Locking Brakes 4 Floor Anchoring Legs

Product variants

Subtotal: $2,589

Quantity:

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description
Reviews
Financing
F.A.Q.
Catalogs

Description

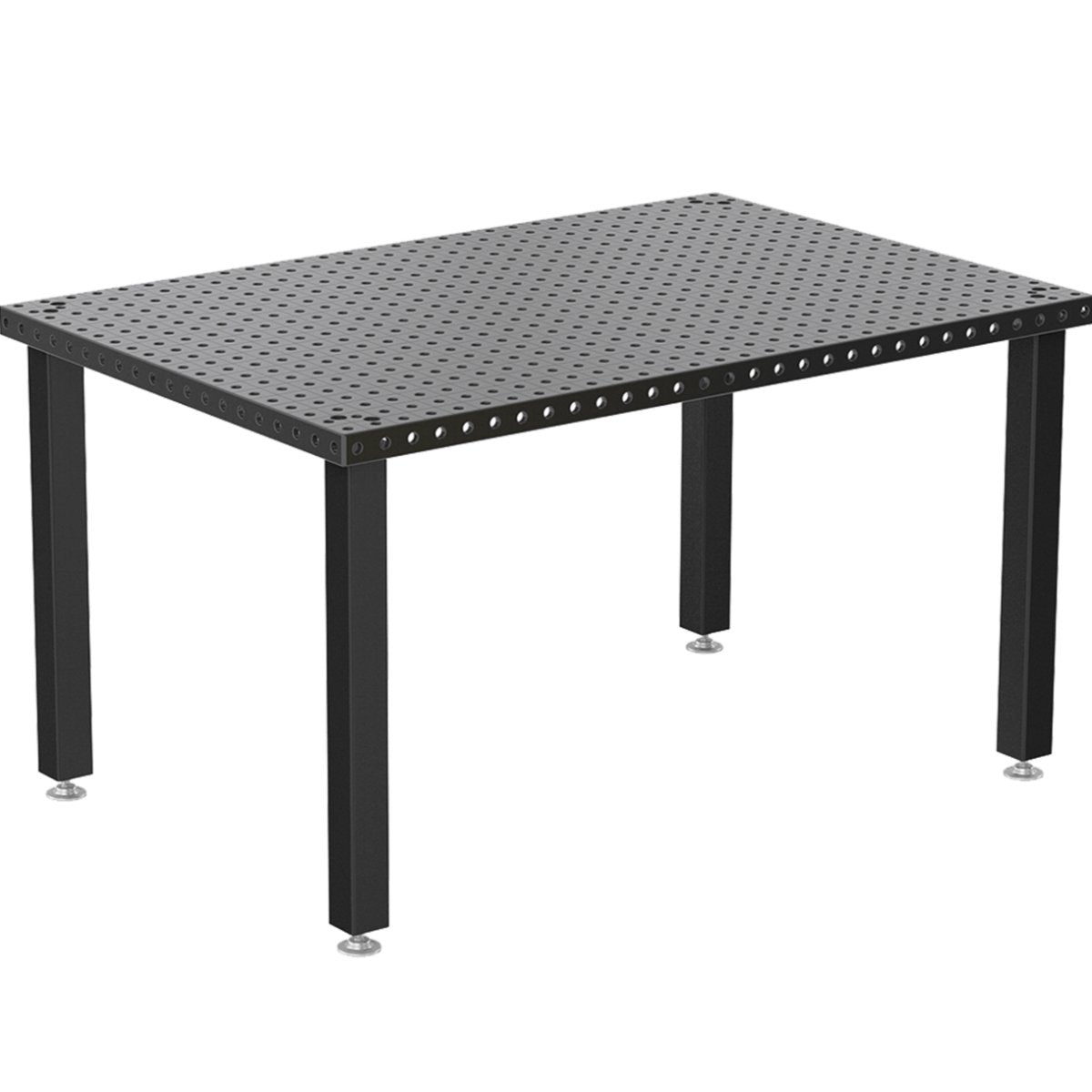

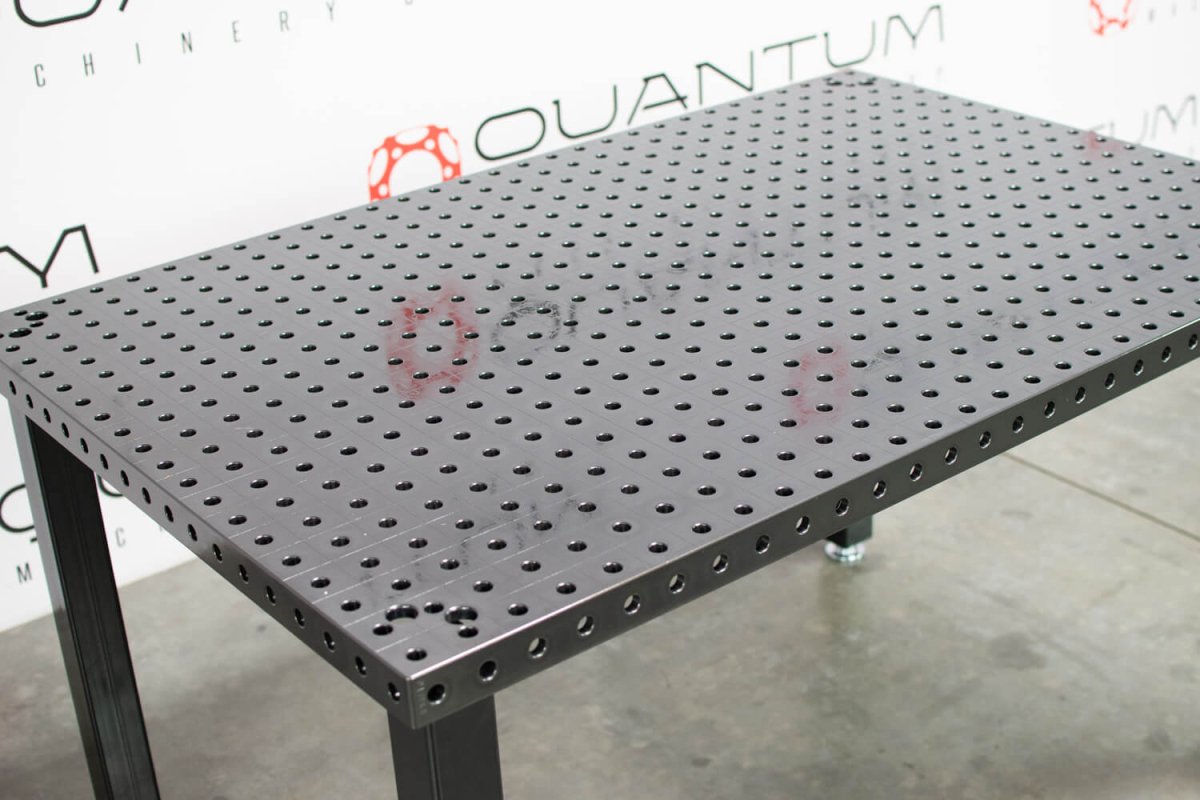

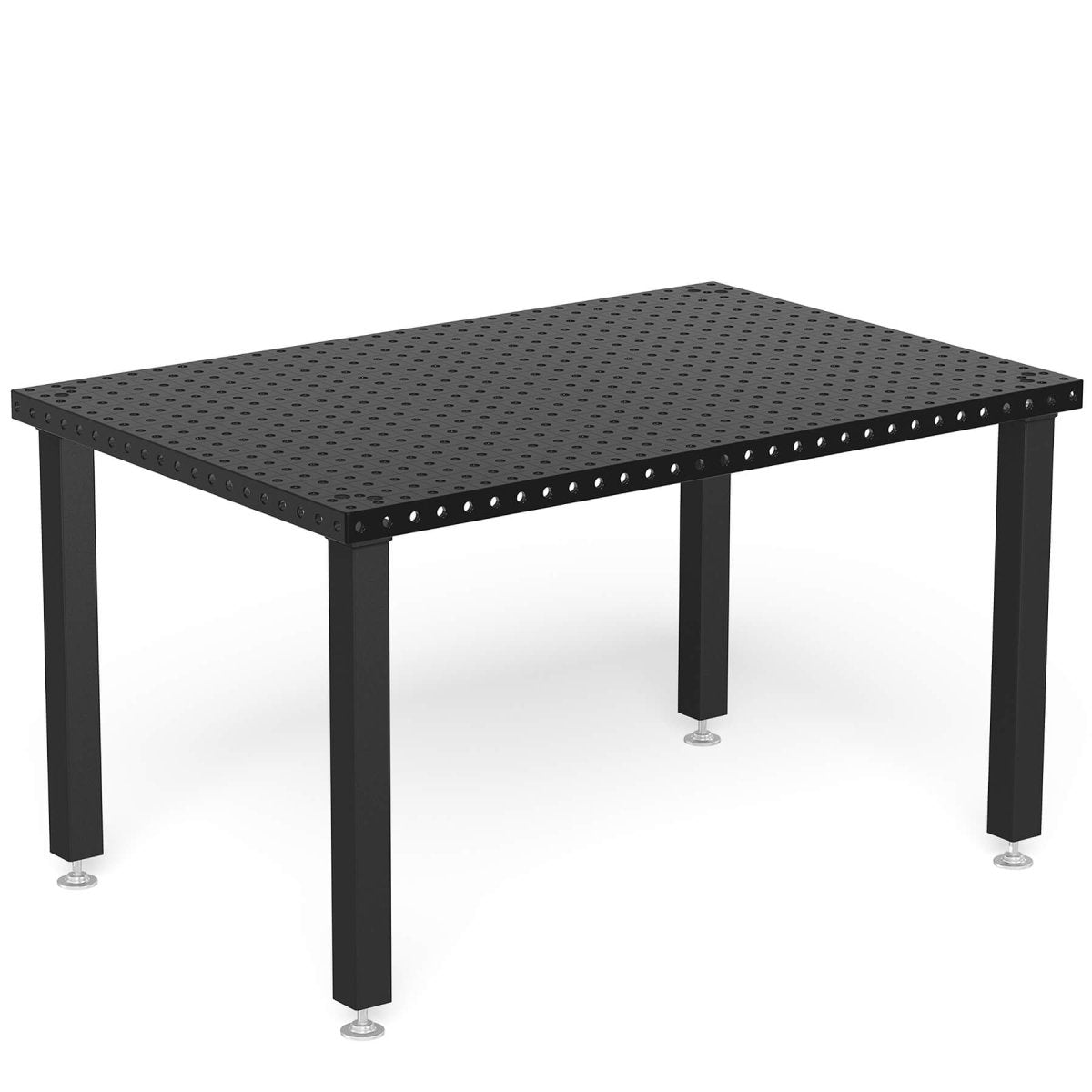

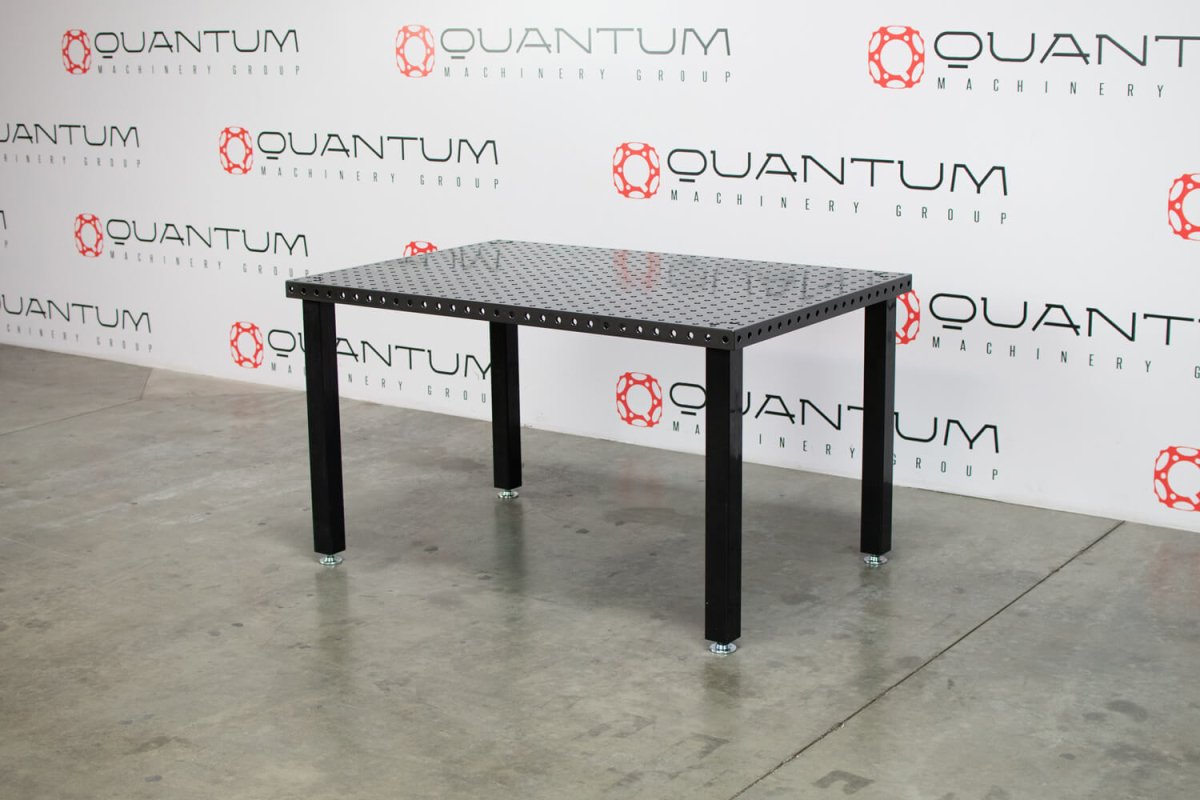

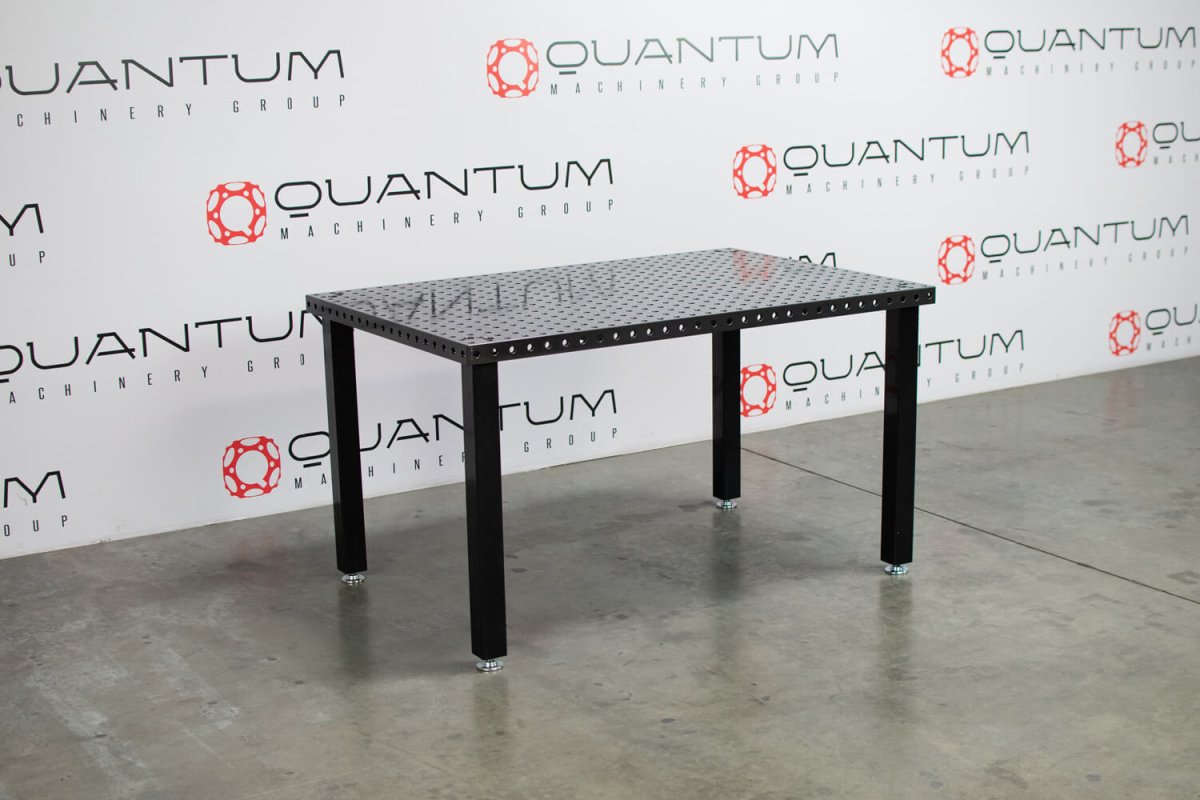

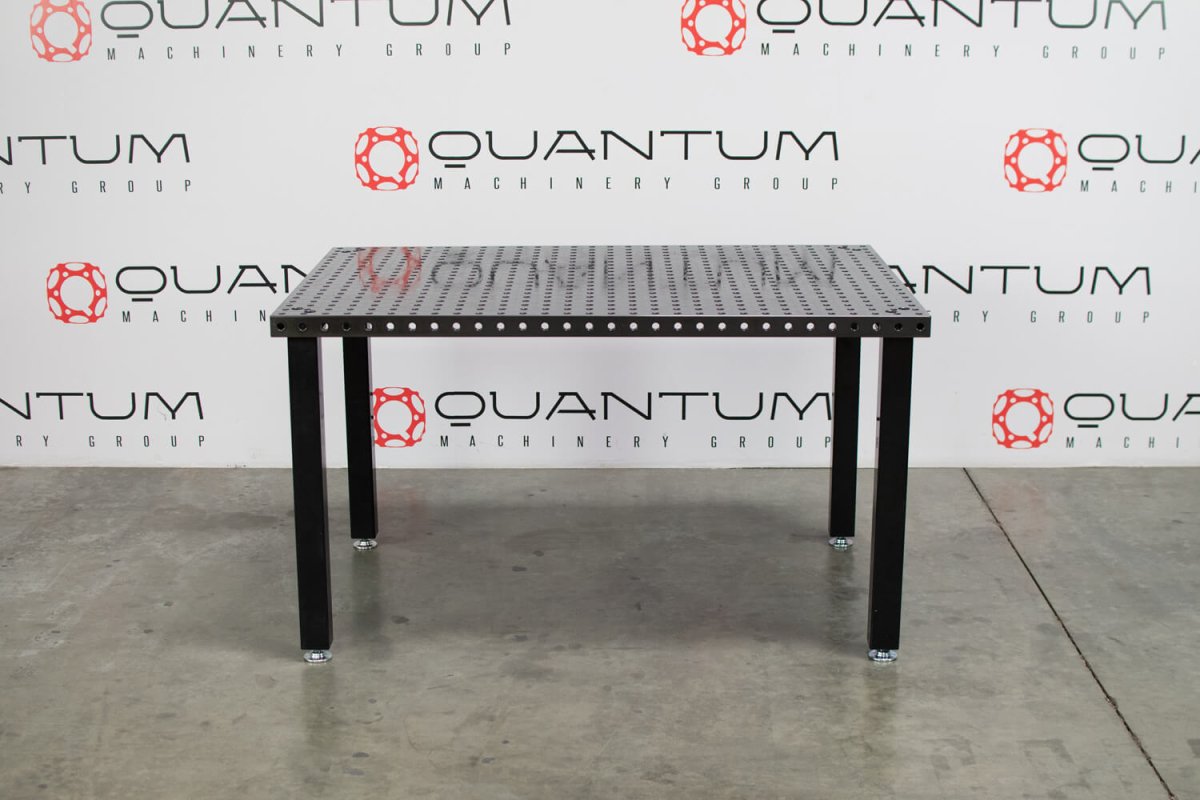

(Image is of a Siegmund System 16 BASIC Series, Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)

The System 16 Welding Table Series was created with Fine Detail Applications in Mind.

All System 16 Basic tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

The materials used are fundamental to the high level of hardness and long service life.
With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.

Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16 Basic Series Welding Tables

Specs & Features
of the System 16
BASIC Series
Welding Tables

Welding Table Specs and Features:

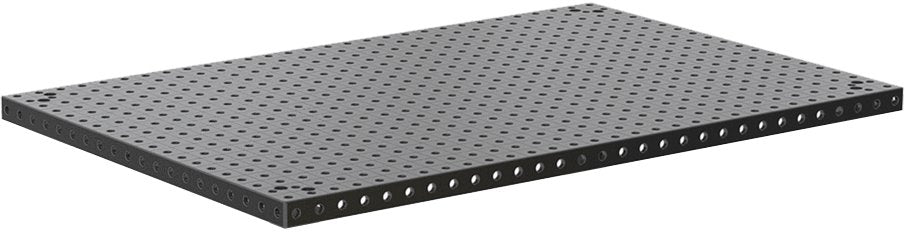

Overall Tabletop Size: 1,500x1000mm
Welding Table Series: System 16 Basic Series
Welding Table Material Thickness: Approx. 11.5-13 mm
Welding Table Material Type and Finish: High Quality S355J2+N Steel, Plasma Nitrided and BAR-Coated
Official Welding Table Part No.: 4-161035.P
Borehole: Ø 16mm

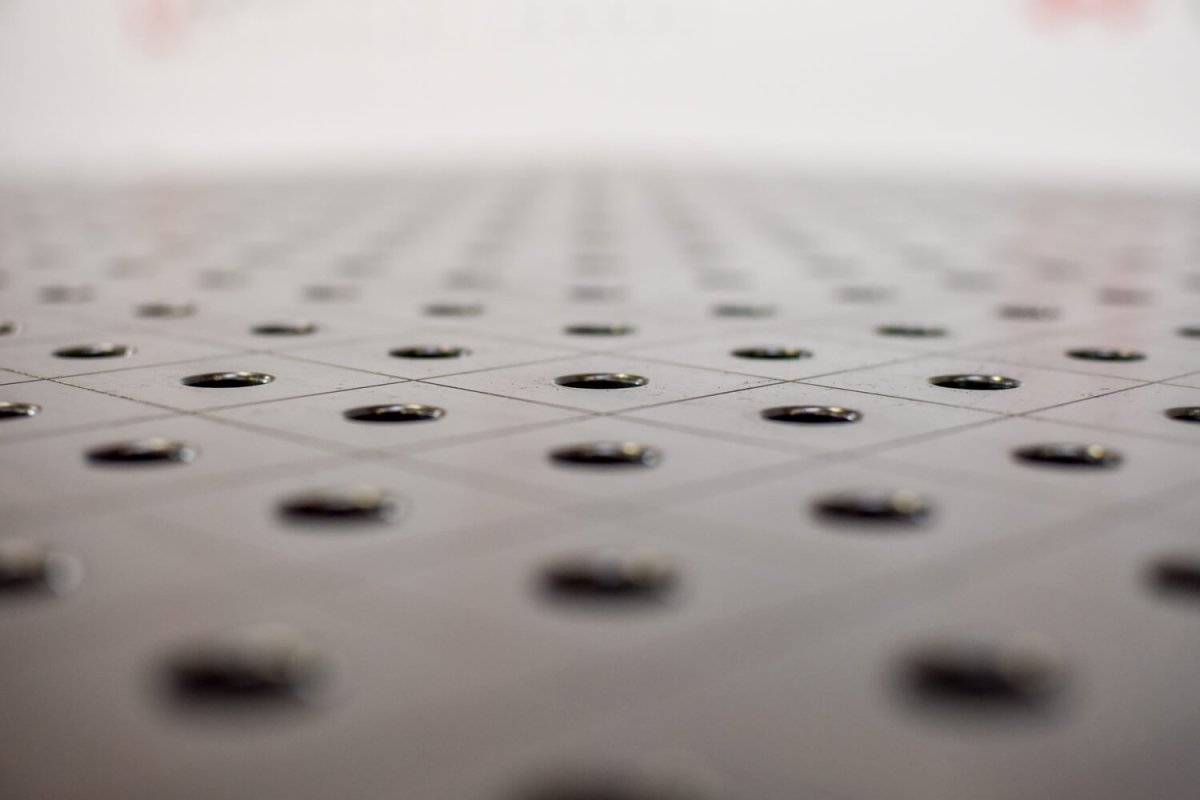

Grid: Grid lines in a distance of 50x50mm help you to arrange your accessories.
Approximate Table Weight: 537 lbs. / 244 kg.

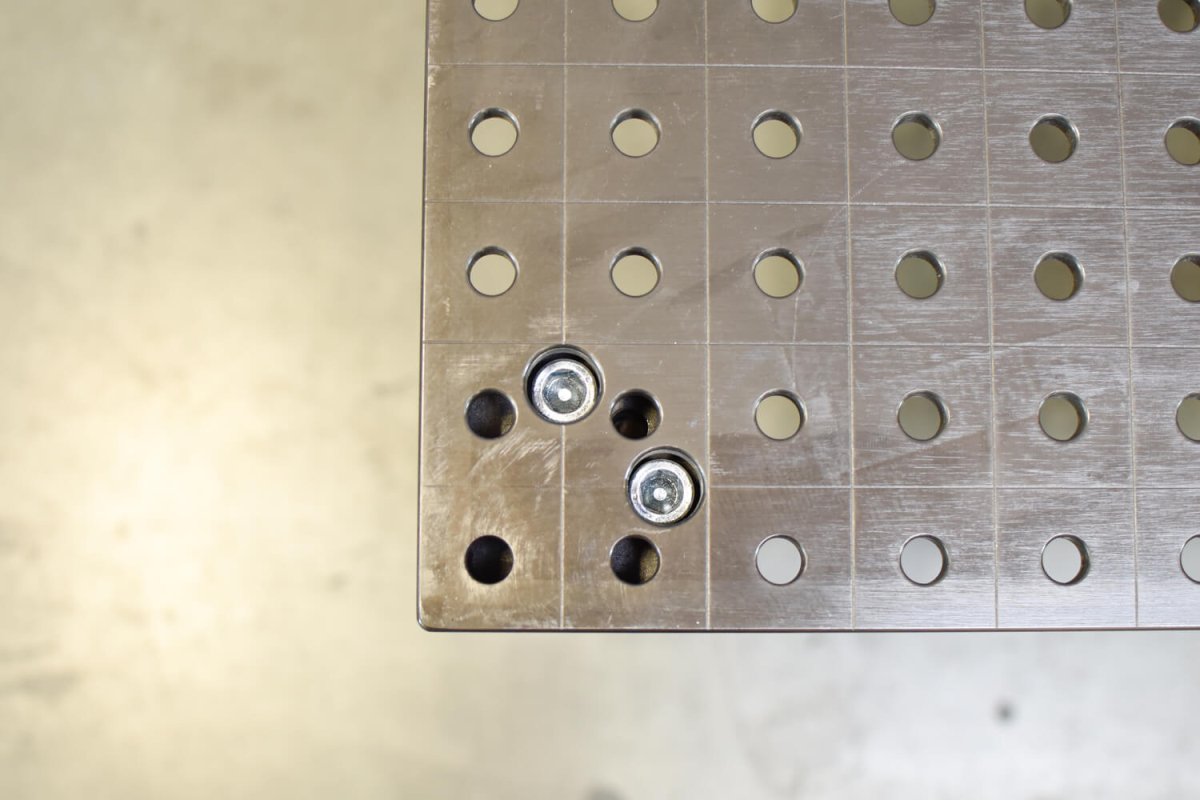

Boreholes on the surface are in a 50X50 mm Grid Configuration.
Borehole Ø 16 mm
Through-hardened tool steel X8.7 + Plasma nitration
Material thickness approx. 11,5 – 13 mm

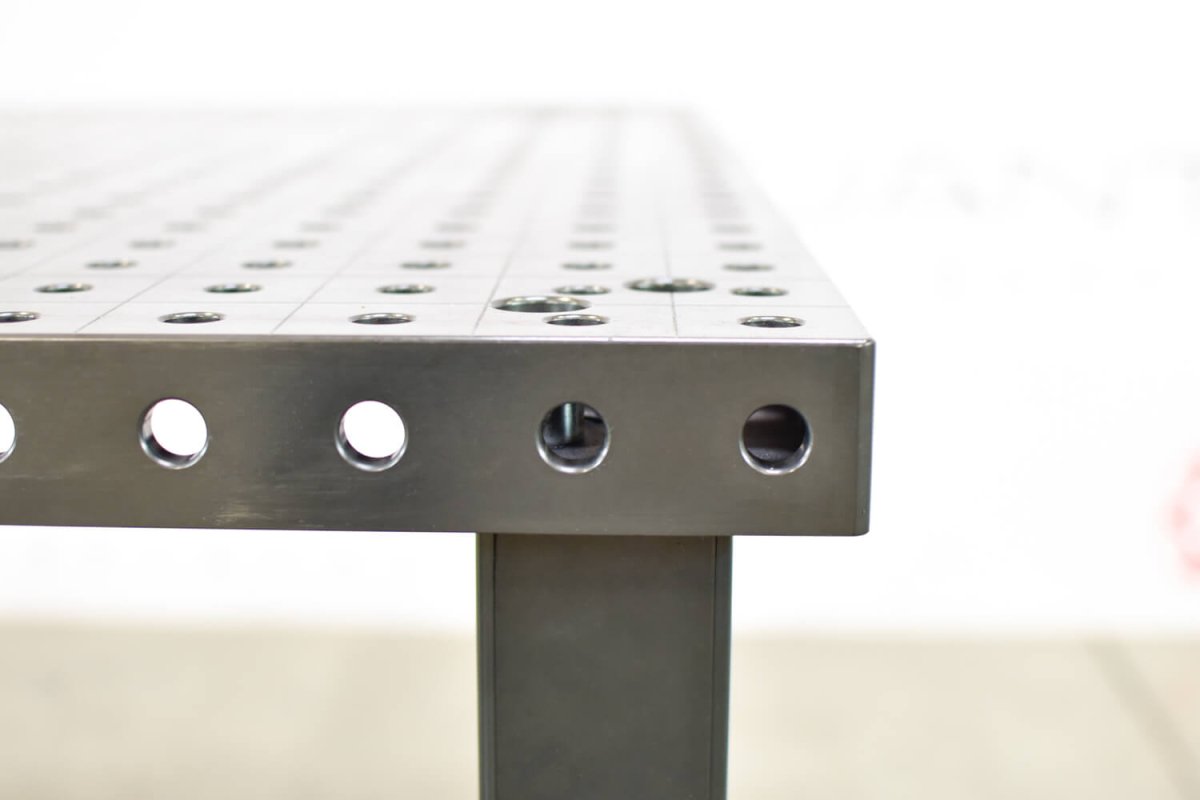

M12-thread on 4 sides every 50 mm
Rounded corners and edges

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

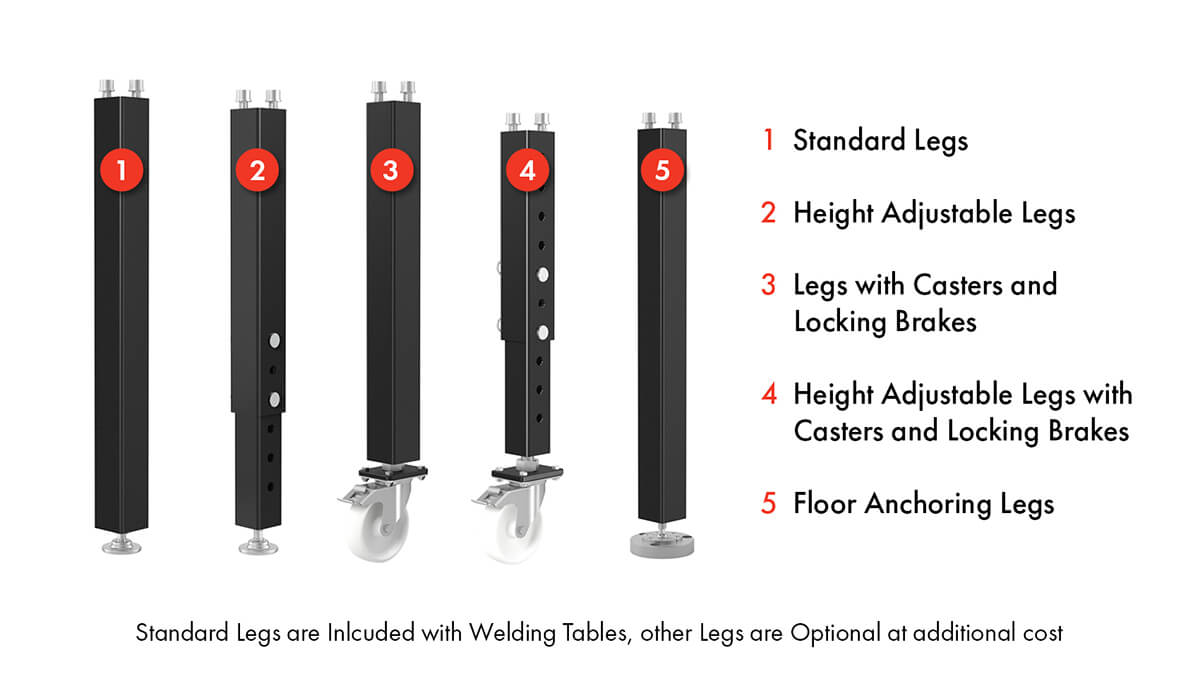

Siegmund Welding Table Leg Options Chart

Leg Type	Item No.	Capacity Per Leg	Leg Height	Table Height	Cost Per Leg
1. Standard Leg	161856	2,200 lbs. / 1,000 kg	32" / 815 mm	33.4" / 850 mm	Included
2. Height Adjustable Leg	4-160877.XX	2,200 lbs. / 1,000 kg	21.6" - 37.4"/ 550-950 mm	23.6"-39.3"/ 600-1,000mm	$77
3. Leg with Casters and Locking Brakes	4-161855.XX	440 lbs. / 200 kg	32"/ 815 mm	33.4"/ 850 mm	$87
4. Height Adjustable Leg with Casters and Locking Brakes	4-160879.XX	440 lbs./ 200 kg	23.6"-35.4"/ 600-900 mm	25.5"-37.4"/ 650-950 mm	$129
5. Floor Anchoring Legs	4-160874.XX	2,200 lbs. / 1,000 kg	32" / 815 mm	33.4"/ 850 mm	$74

Siegmund System 16 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

- Item No.: 161856
- Leg Height: 32" / 815mm
- Table Height: 33.4" / 850mm

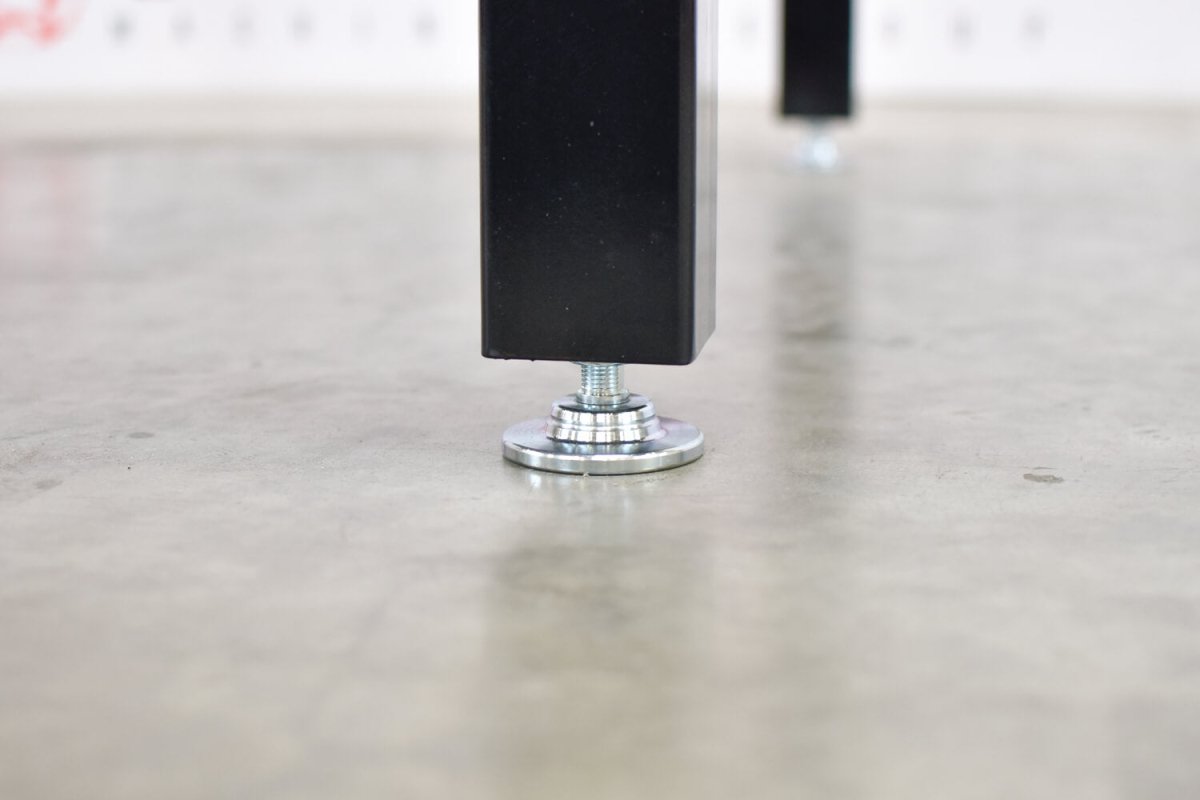

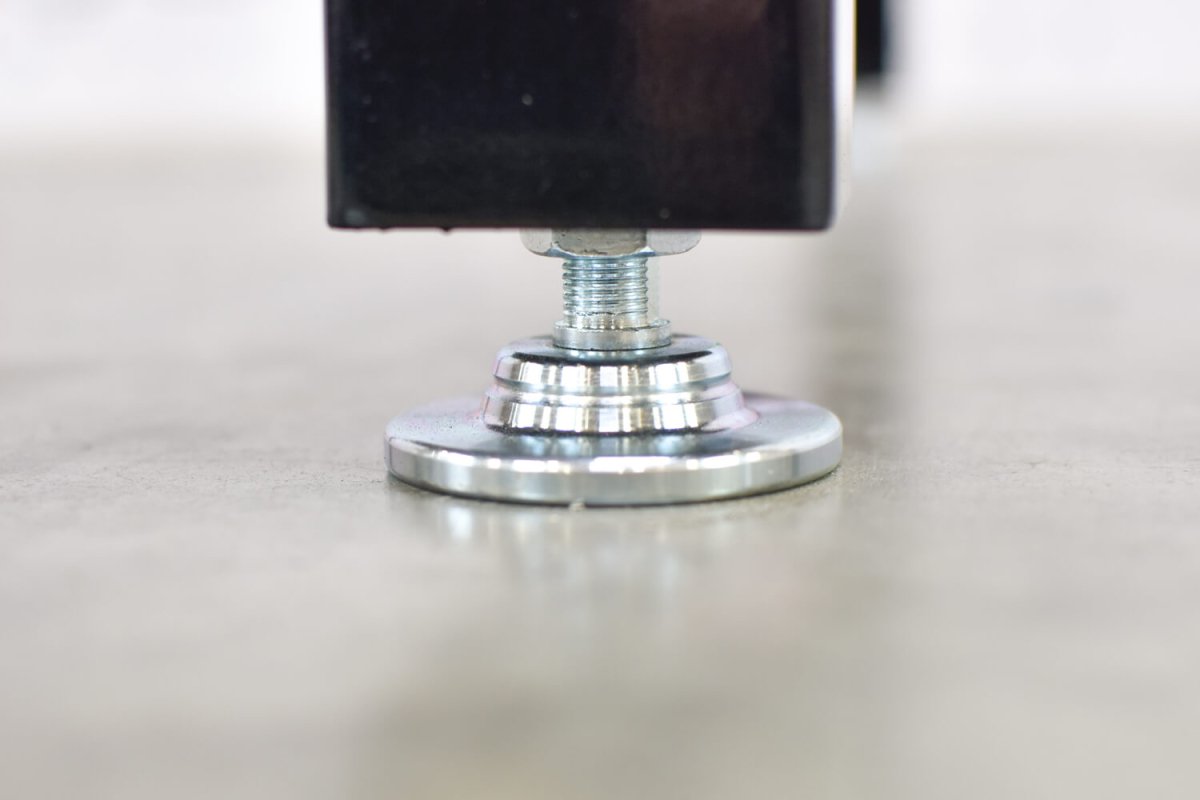

- Fine Adjustment: 1.96" / 50mm
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

Item No.: 4-160877.XX
Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
Table Height (Adjustable): 23.6" - 39.37" / 600mm - 1,000mm
Fine Adjustment: 1.57" / 40mm
Capacity Per Table Leg: 2,200 lbs.
Cost Per Leg: $77
Cost Per 4 Leg Set: $308

3. Siegmund Leg(s) with Casters and Locking Brakes

Item No.: 4-161855.XX
Leg Height: 32" / 815mm
Table Height: 33.4" / 850mm
Fine Adjustment: 1.18" / 30mm
Capacity Per Table Leg: 440 lbs.
Cost Per Leg: $87
Cost Per 4 Leg Set: $348

4. Height Adjustable Leg(s) with Casters and Locking Brakes

Item No.: 4-160879.XX
Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
Fine Adjustment: 1.18" / 30mm
Capacity Per Table Leg: 440 lbs.
Cost Per Leg: $129
Cost Per 4 Leg Set: $516

5. Siegmund Leg(s) for Floor Anchoring

- Item No.: 4-160874.XX
- Leg Height: 32" / 815mm
- Table Height: 33.4" / 850mm
- Fine Adjustment: 1.96" / 50mm
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $74
- Cost Per 4 Leg Set: $296
