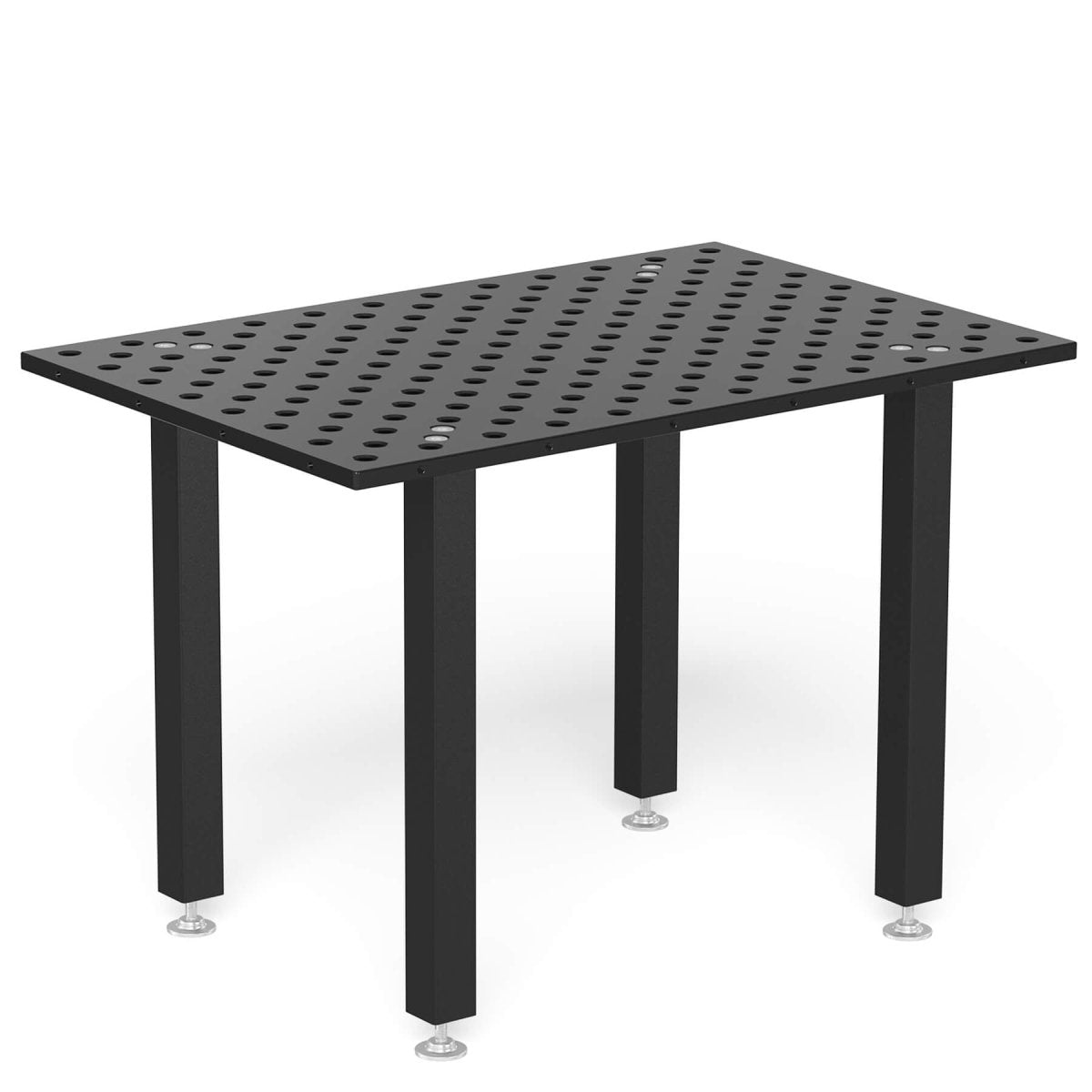

4-281025.XD7: Siegmund 1,200x800mm "BASIC" System 28 Welding Table

Manufacturer: Siegmund
Part No. (SKU): 4-281025.XD7 + (4x) 161856
Current Availability in the USA: 8 In Stock
Series: System 28 Welding Tables
$1,925
$2,827
$1,925
Table Legs: 4 Standard Legs
Subtotal: $1,925

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

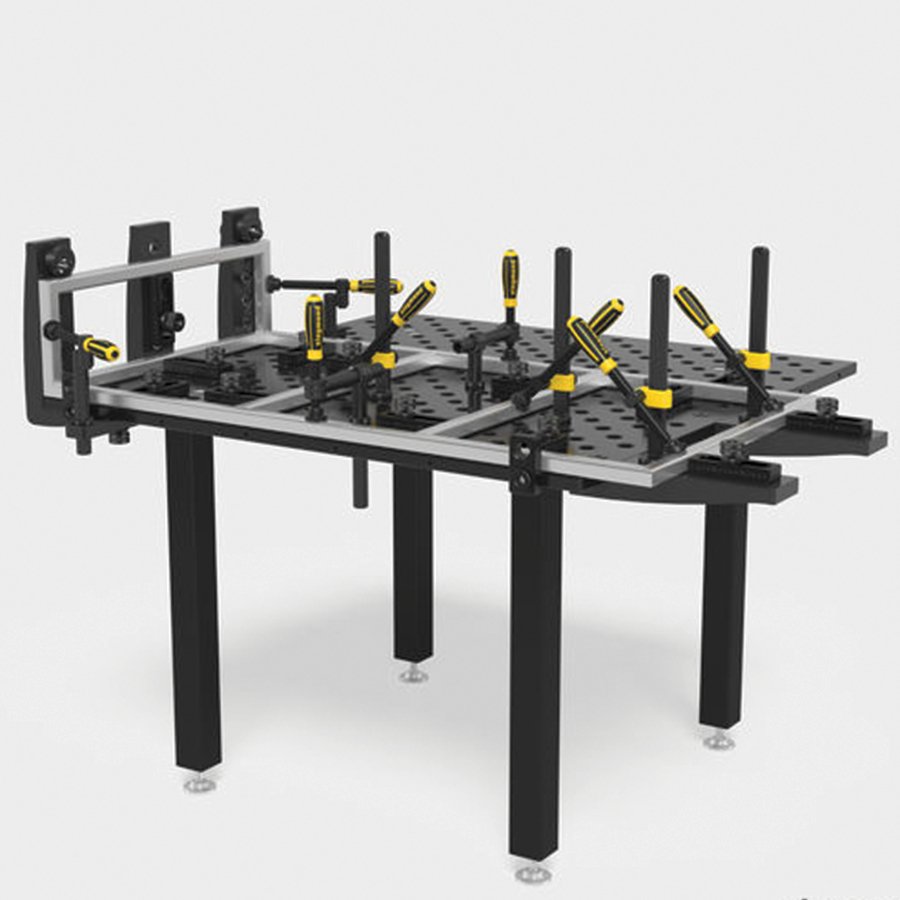

(Image is of a Siegmund System 28 BASIC Series Welding Table with a Siegmund Accessory Kit . These items are not included. This is being shown as an example.)

The System 28 Basic Welding Table Series was created with Fine Detail Applications in Mind.


The Siegmund System 28 Basic Tables are constructed from through Hardened Steel before undergoing a Plasma Nitride Treatment to provide you with
a Table of Superior Quality and Performance.

All System 28 Professional Extreme tables feature the Latest Upgrades in Aesthetics, Versatility, and Durability.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 28, 8.7 Basic Series Welding Tables

Specs & Features
of the System 28, 8.7 Basic Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 1,200 x 800 x 25mm ( 47.2" x 31.5" x 0.98")
  • Borehole Diameter: Ø 28mm.
  • Welding Table Series: System 28 Basic Series.
  • Welding Table Material Thickness: Approx. 24.5-27 mm.
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated.
  • Grid: Grid Lines in a Distance of 100 x 100mm.
  • Official Welding Table Part No.: 4-281025.XD7
  • Approximate Table Weight: 504 lbs. / 229 kg.
  1. 8x 45° chamfer for table leg mounting.
  2. Boreholes on the surface are in a 100 x 100 mm Grid Configuration.
  3. Borehole Ø 28 mm.
  4. Through-hardened tool steel X8.7 + Plasma nitration.
  5. Rounded corners and edges. Material thickness approx. 24.5 – 27 mm.
  6. M12-thread on 4 sides every 200 mm.

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

161856

1,000 kg

850 mm

50 mm

Included

2. Floor Anchoring Legs

4-160874.XX

1,000 kg

850 mm

50 mm

$89

Siegmund System 28 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: 161856
  • Leg Height: 32" / 815mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)

2. Siegmund Leg(s) for Floor Anchoring

  • Item No.: 2-160874.XX
  • Leg Height: 32" / 815mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $89
  • Cost Per 4 Leg Set: $356
