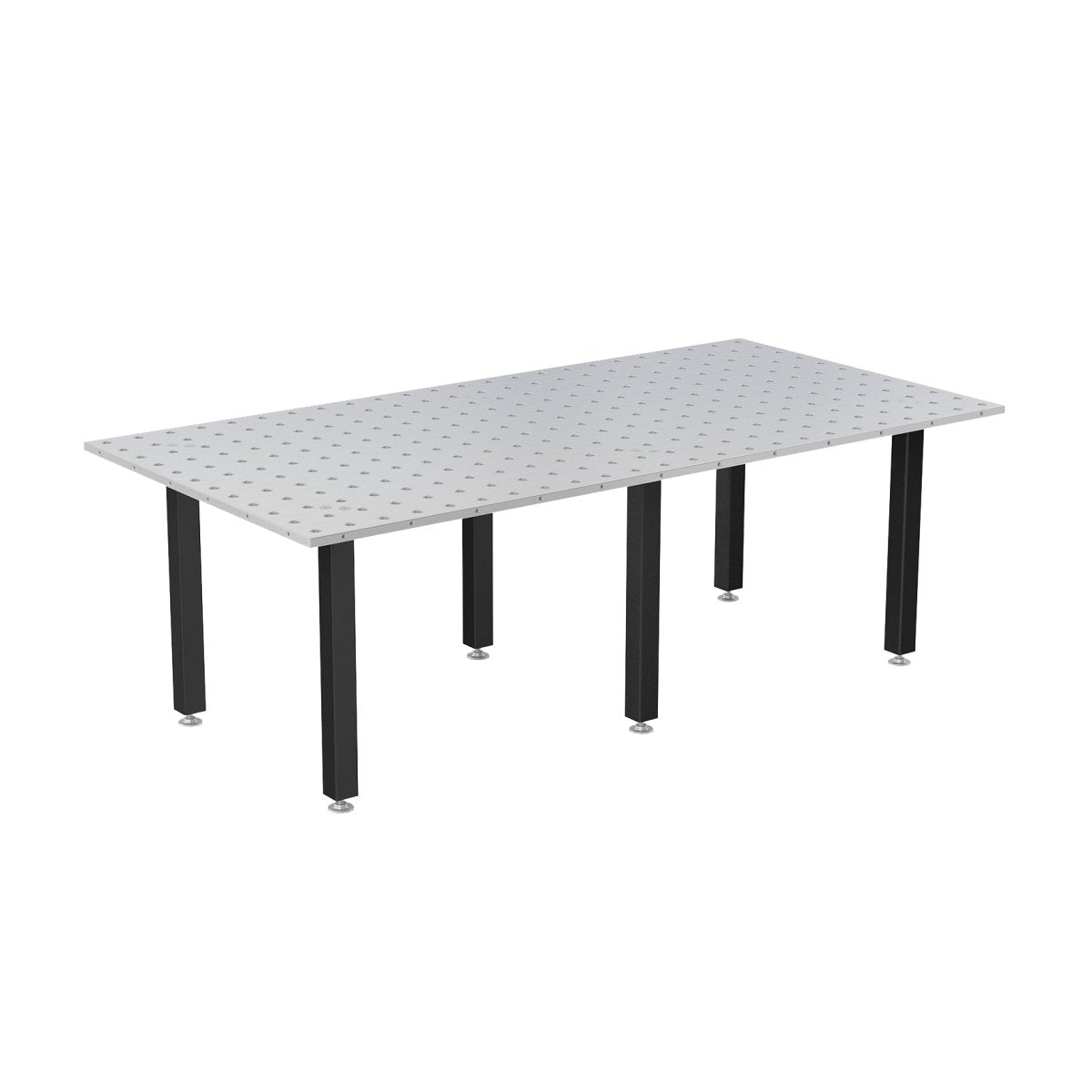

4-281030: Siegmund 2,400x1,200mm "BASIC" System 28 Welding Table
">
4 - 281030: Siegmund 2,400x1,200mm "BASIC" System 28 Welding Table - System 28 Welding Tables by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World
4 - 281030: Siegmund 2,400x1,200mm "BASIC" System 28 Welding Table - System 28 Welding Tables by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World
4 - 281030: Siegmund 2,400x1,200mm "BASIC" System 28 Welding Table - System 28 Welding Tables by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World
4-281030: Siegmund 2,400x1,200mm "BASIC" System 28 Welding Table

4-281030: Siegmund 2,400x1,200mm "BASIC" System 28 Welding Table

Manufacturer: Siegmund
Part No. (SKU): 4-281030 + (6x) 161856
Current Availability in the USA: 4 In Stock
Series: System 28 Welding Tables
$3,244
$4,581
$3,244
Table Legs: 6 Standard Legs
Subtotal: $3,244

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

The System 28 Basic Welding Table Series was created with Fine Detail Applications in Mind.


The Siegmund System 28 Basic Tables are constructed from through Hardened Steel to provide you with a Table of Superior Quality and Performance. All System 28 tables feature the Latest Upgrades in Aesthetics, Versatility, and Durability.

Specs and Features

of the System 28 Basic Series Welding Tables

Specs & Features
of the System 28
Basic Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 2,400 x 1,200 x 25mm (94.4" x 47.2" x 0.98")
  • Welding Table Series: Basic Series
  • Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96" - 1.06")
  • Welding Table Material Type and Finish: High Quality S355J2+N Steel
  • Official Welding Table Part No.: 4-281030
  • Borehole: Ø 28mm (1.10")
  • Grid: Grid lines in a distance of 100x100mm (3.96" x 3.96") help you to arrange your accessories.
  • Approximate Table Weight: 1,550 lbs. / 700 kg.
  • Ribbing and Holes: The desk top has no ribbing and is milled on 5 sides. The table has thread holes on all sides. (It is possible to fixate stops on the sides of the table in distances of 200 mm by M12 thread holes.)

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

161856

2,200 lbs. / 1,000 kg

32" / 815 mm

33.4" / 850 mm

Included

2. Height Adjustable Leg

4-160877.XX

2,200 lbs. / 1,000 kg

21.6" - 37.4"/ 550-950 mm

23.6"-39.3"/ 600-1,000mm

$87

3. Leg with Casters and
Locking Brakes

4-161855.XX

440 lbs. / 200 kg

32"/ 815 mm

33.4"/ 850 mm

$98

4. Height Adjustable Leg
with Casters and Locking Brakes

4-160879.XX

440 lbs./ 200 kg

23.6"-35.4"/ 600-900 mm

/ 650-950 mm

$146

5. Floor Anchoring Legs

4-160874.XX

2,200 lbs. / 1,000 kg

32" / 815 mm

33.4"/ 850 mm

$103

Siegmund System 28 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: 161856
  • Leg Height: 32" / 815mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: 4-160877.XX
  • Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
  • Table Height (Adjustable): 23.6" - 39.37" / 600mm - 1,000mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $87
  • Cost Per 6 Leg Set: $522

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 4-161855.XX
  • Leg Height: 32" / 815mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $98
  • Cost Per 6 Leg Set: $588

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 4-160879.XX
  • Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
  • Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $146
  • Cost Per 6 Leg Set: $876

5. Siegmund Leg(s) for Floor Anchoring

  • Item No.: 4-160874.XX
  • Leg Height: 32" / 815mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $103
  • Cost Per 6 Leg Set: $618
