4 - 281035.XD7: Siegmund 1,500x1,000mm "BASIC" System 28 Welding Table - System 28 Welding Tables by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World
4 - 281035.XD7: Siegmund 1,500x1,000mm "BASIC" System 28 Welding Table - System 28 Welding Tables by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World

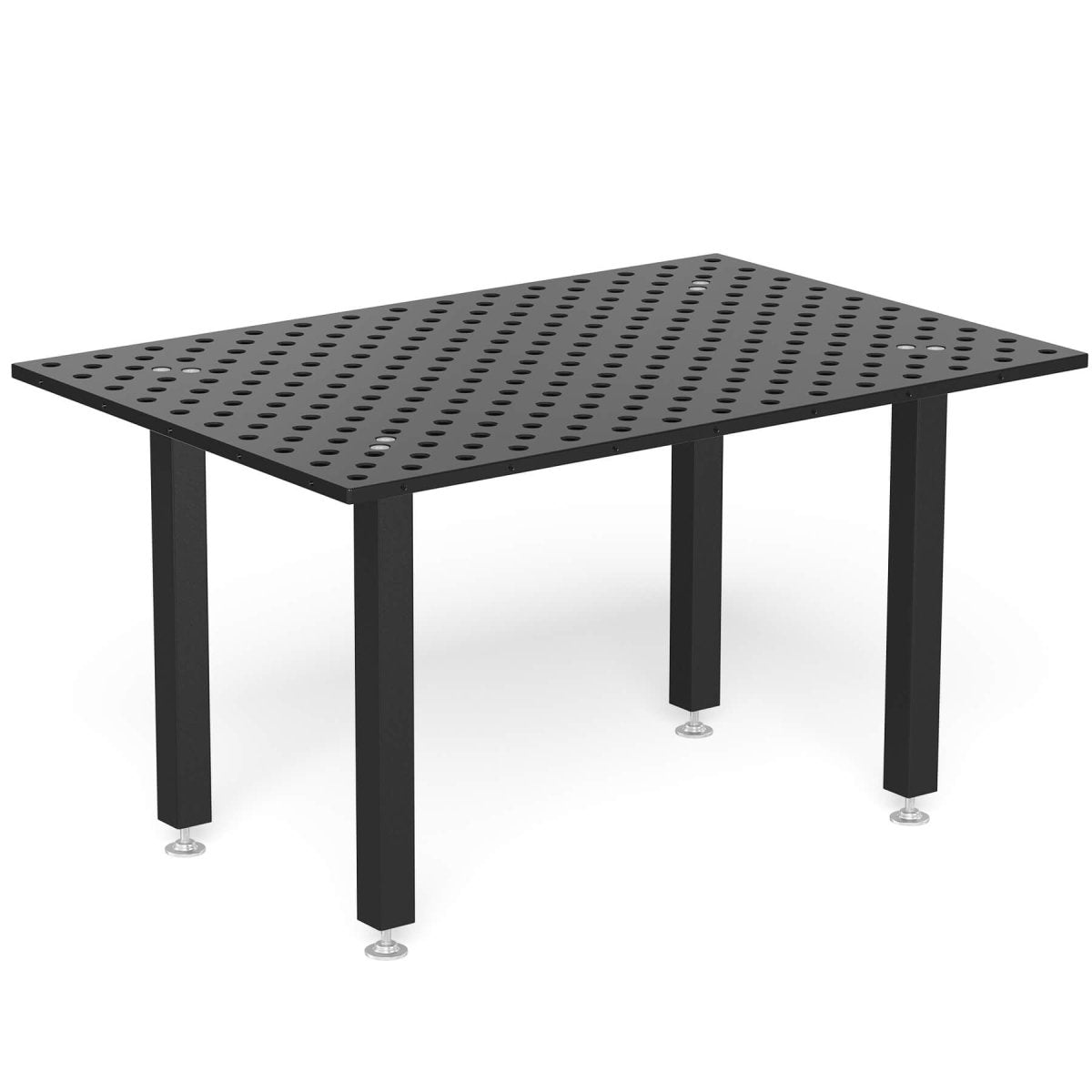

4-281035.XD7: Siegmund 1,500x1,000mm "BASIC" System 28 Welding Table

Manufacturer: Siegmund
Part No. (SKU): 4-281010.XD7 + (4x) 161856
Current Availability in the USA: Out Of Stock
Series: System 28 Welding Tables
$2,353
$2,847
$2,353
Table Legs: 4 Standard Legs
Subtotal: $2,353

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

(Image is of a Siegmund System 28 8.7 Series Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)

The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.


All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 28, 8.7 Basic Series Welding Tables

Specs & Features
of the System 28, 8.7 Metric Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 1,500x1,000x25mm (59"x39.3"x0.98")
  • Welding Table Series: System 28 Basic Series
  • Welding Table Material Thickness: Approx. 24.5-27 mm (0.96"-1.06")
  • Welding Table Material Type and Finish: High Quality S355J2+N Steel, Plasma Nitrided and BAR-Coated
  • Official Welding Table Part No.: 4-281035.XD7
  • Borehole: Ø 28mm
  • Grid: Grid lines in a distance of 100x100mm help you to arrange your accessories.
  • Approximate Table Weight: 749 lbs. / 340 kg.
  1. Boreholes on the surface are in a 100X100 mm Grid Configuration.
  2. Borehole Ø 28 mm
  3. Through-hardened tool steel X8.7 + Plasma nitration
  4. Rounded corners and edges. Material thickness approx. 24.5 – 27 mm
  5. M12-thread on 4 sides every 200 mm
  6. 8x45° chamfer for table leg mounting

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

161856

1000 kg

850 mm

50 mm

Included

2. Height Adjustable Leg

4-160877.XX

1000 kg

60-1000 mm

40 mm

$76

3. Leg with Casters and
Locking Brakes

4-161855.XX

200 kg

850 mm

30 mm

$85

4. Height Adjustable Leg
with Casters and Locking Brakes

4-160879.XX

200 kg

650-950 mm

30 mm

$127

5. Floor Anchoring Legs

4-160874.XX

1000 kg

850 mm

50 mm

$89

Siegmund System 28 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

    • Item No.: 161856
    • Leg Height: 32" / 815mm
    • Table Height: 33.4" / 850mm
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $0 (Included with Welding Table as a Standard)
    • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: 4-160877.XX
  • Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
  • Table Height (Adjustable): 23.6" - 39.37" / 600mm - 1,000mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $76
  • Cost Per 4 Leg Set: $304

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 4-161855.XX
  • Leg Height: 32" / 815mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $85
  • Cost Per 4 Leg Set: $840

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 4-160879.XX
  • Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
  • Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $127
  • Cost Per 4 Leg Set: $508

5. Siegmund Leg(s) for Floor Anchoring

    • Item No.: 4-160874.XX
    • Leg Height: 32" / 815mm
    • Table Height: 33.4" / 850mm
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $89
    • Cost Per 4 Leg Set: $356
